Caution: carriage lock screw must be UN locked before engaging automatic feeds
or damage to lathe may occur.

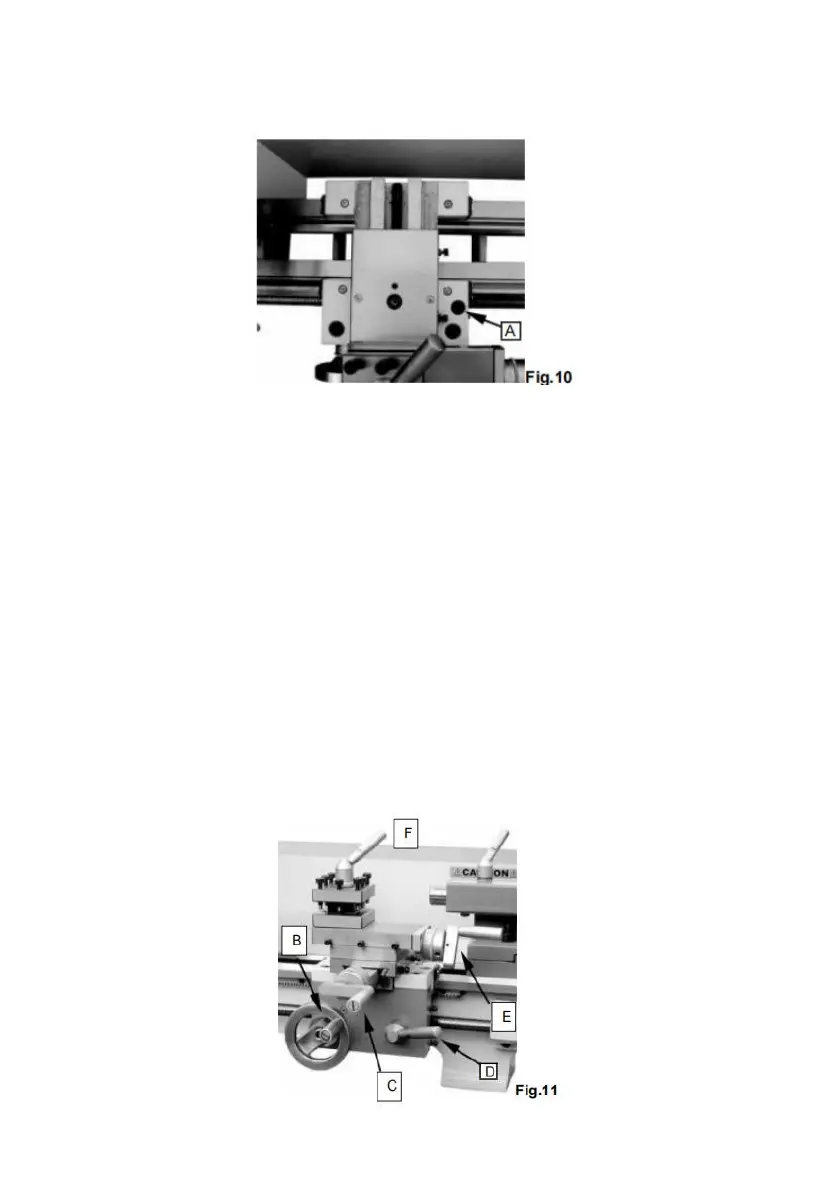

6. Longitudinal Traverse Handwheel
Rotate handwheel clockwise to move the apron assembly toward the tailstock
(right). Rotate the hand wheel counter-clockwise to move the apron assembly to
ward the Headstock(left).
7. Cross Traverse Lever
Clockwise rotation moves the cross slide toward the rear of the machine.
8. Half Nut Engage Lever
Move the lever down to engage. Move the lever up to disengage.
9. Compound Rest Traverse Lever
Rotate clockwise or counter-clockwise to move or position.
10. Tool Post Clamping Lever
Rotate counter-clockwise to loosen and clockwise to tighten. Rotate the tool post
when the lever is unlocked.
