19
Note
• Install the driver in an enclosure.
• Do not install any equipment
that generates a large amount
of heat near the driver.
• Check ventilation if the ambient
temperature of the driver
exceeds 50°C (122°F).
Installing the driver
Orientation
The driver is designed so that heat is dissipated via air convection and conduction through the
enclosure.
When installing the driver in an enclosure, it must be placed in perpendicular (vertical)
orientation using a DIN rail or driver mounting brackets.
How to install the driver
Install the driver on a flat metal plate having excellent vibration resistance and heat
conductivity.
In the presence of a great amount of vibration, do not use a DIN rail. Screw down the driver
directly through the use of driver mounting brackets.
If a DIN rail is to be used, use a DIN rail mounting plate (sold separately).

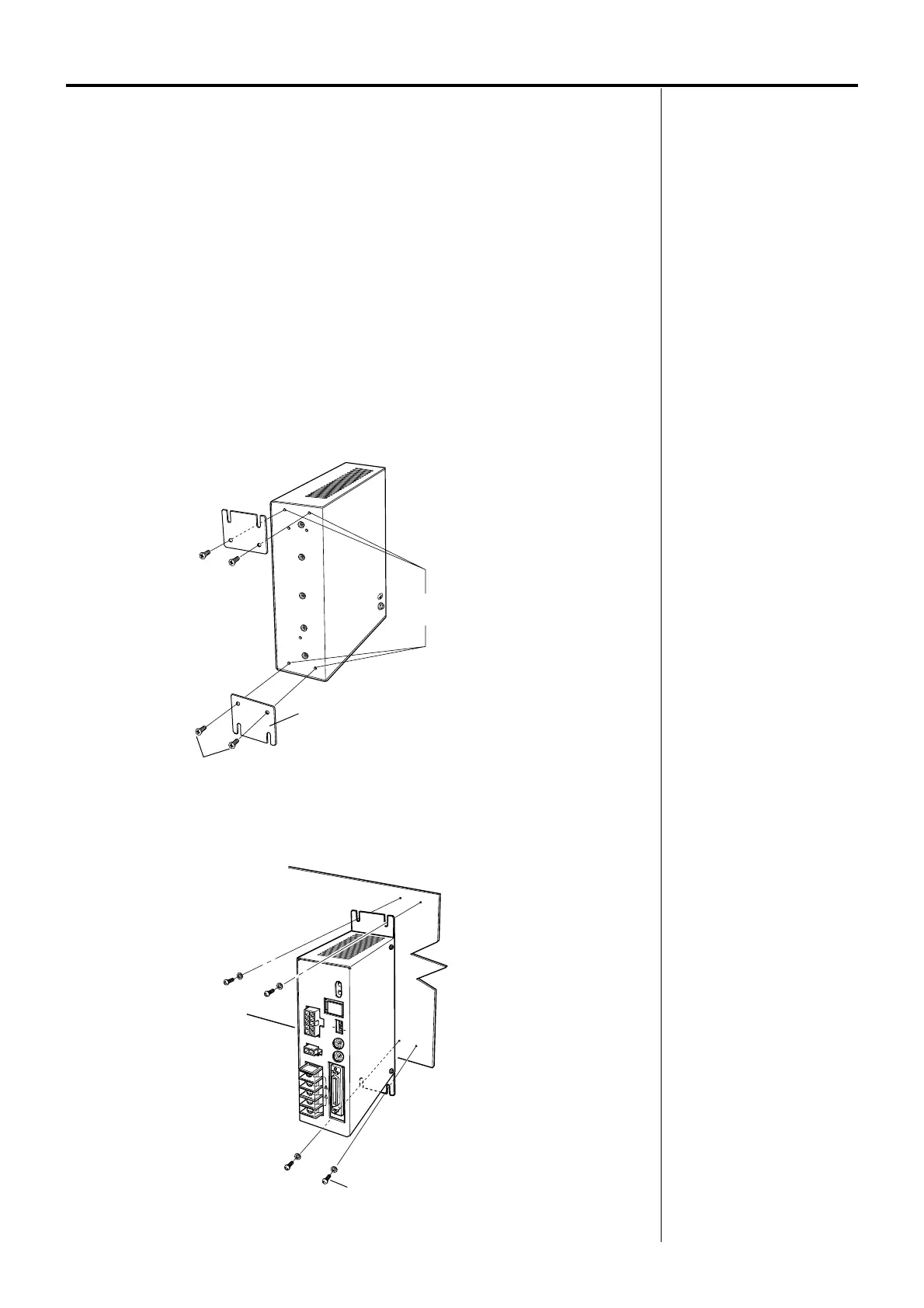

Using driver mounting brackets
1.Attaching the driver mounting brackets
O
PER
ATIO
N
ALA
R
M
CN1
CN
2
M
O
TO
R
CURRENT
V.FIL
C
N
3
C
N
4
I/O
1000
ASD24A-A
X1
1P
500
X
1
0
2P
M4 (not supplied)
VEXTA
Install the driver by securing it with four bolts (M4, not supplied) through the four mounting holes
provided. Leave no gap between the driver and plate.
Attach the driver mounting brackets to the four mounting holes provided in the back of the
driver, using optional screws for the driver mounting brackets (M3, four pieces).
2.Installing the driver
Screws for driver mounting brackets M3 (provided)
Mounting brackets (two pieces)
Mounting holes for the driver
mounting brackets (M3, four locations)
Note
• Do not use the mounting holes
(M3, four locations) for the driver
mounting brackets provided on
the back of the driver for any
purpose other than securing the
driver mounting brackets.
• Be sure to use the supplied
screws when securing the driver
mounting brackets.
To Next Page
