33

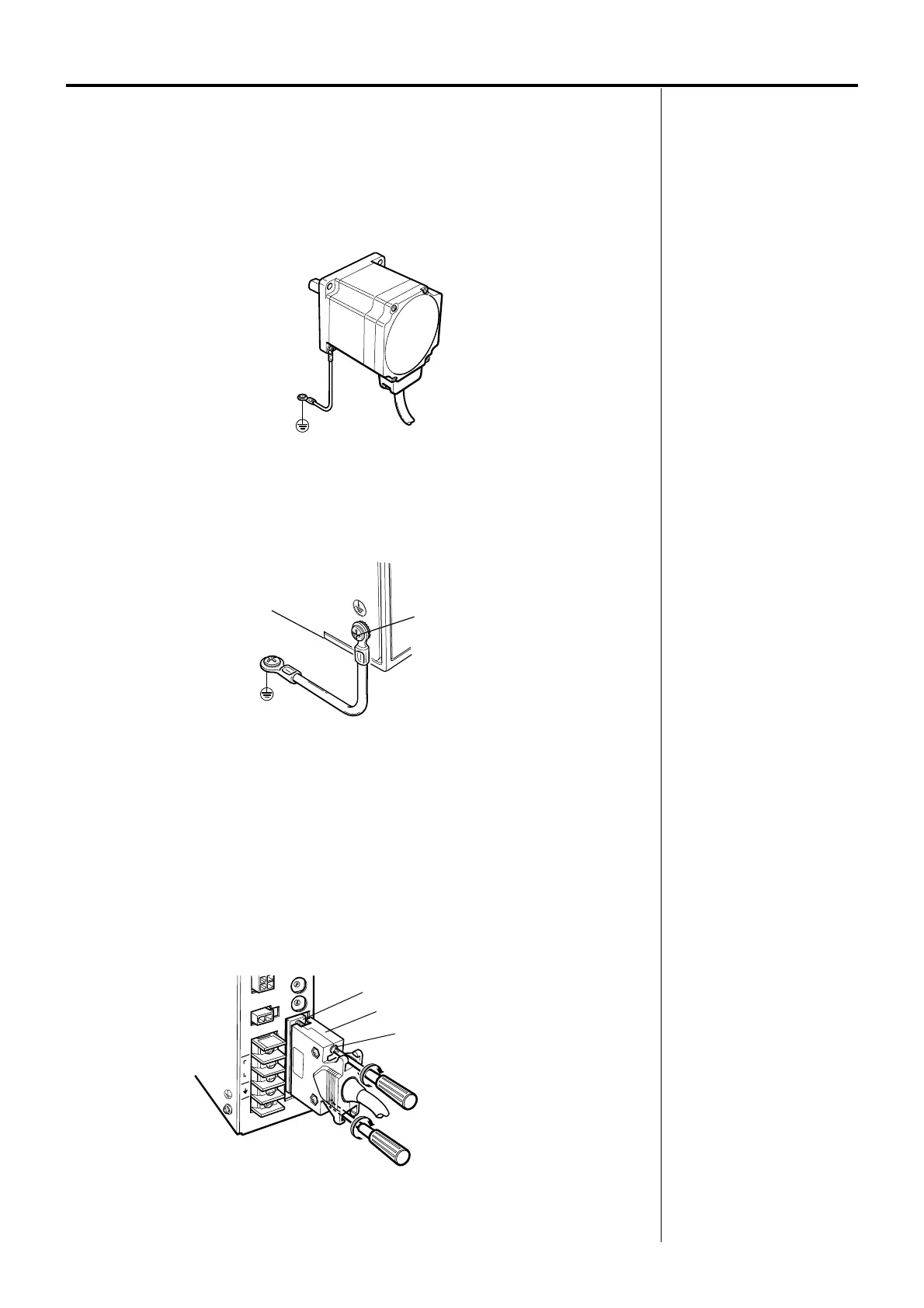

Grounding the motor and driver
Grounding the motor
Ground the motor using one of its four mounting holes.
Use a grounding cable of AWG18
(0.75 mm
2
) or more in diameter.
Use a round, insulated crimp terminal in combination with an inner-clip washer and bolt it in
place to secure the grounding connection.
Grounding the driver
Be sure to ground the protective earth terminal (screw size: M4) located on the driver side.
Use a grounding cable of AWG18
(0.75 mm
2
) or more in diameter.
Do not share the grounding cable with a welder or power equipment.
Use a round, insulated crimp terminal to ground the cable near the driver.
Connecting control input/output
Connecting control input/output connector
Connect the control input/output connector (supplied, 36 pins) to the driver.
Solder the control input/output cable (AWG28: 0.08 mm
2
or more) to the connector. Assemble
the connector and connector cover with the supplied screws.
Use a shielded cable, such as the optional shielded cable with connectors (sold separately).
Refer to “Assembling the control input/output connector” on page 34.
Insert the control input/output connector into the control input/output connector CN4 on the
driver side, and tighten the screw with a flat blade-parallel tip type screwdriver.
P.E.
Protective earth terminal
CN2
C
N
3
CN4
I/O
MOTOR
100-
115V
L
N
~
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
C
U
R
R
E
N
T
V
.F
IL
Screws
Control input/output connector
Control input/output connector (CN4)
Tightening torque: 0.3 to 0.35 N·m (42.5 to 49.6 oz-in)
