28
Note
• Furnish a power supply capable
of supplying adequate driver
input current.
If the current capacity is
insufficient, the transformer may
be damaged, or the motor may
run erratically due to a drop in
torque.
• Do not run the driver’s power
cable through a conduit
containing other power lines or
motor cables.
• After shutting down the power,
wait at least 10 seconds before
turning it back on, unplugging,
or plugging in the motor’s cable
connector.
L
100-
115V
N
~
Single-phase
100-115 V
50/60 Hz
Use a power supply capable of supplying the power/current capacity as shown below.

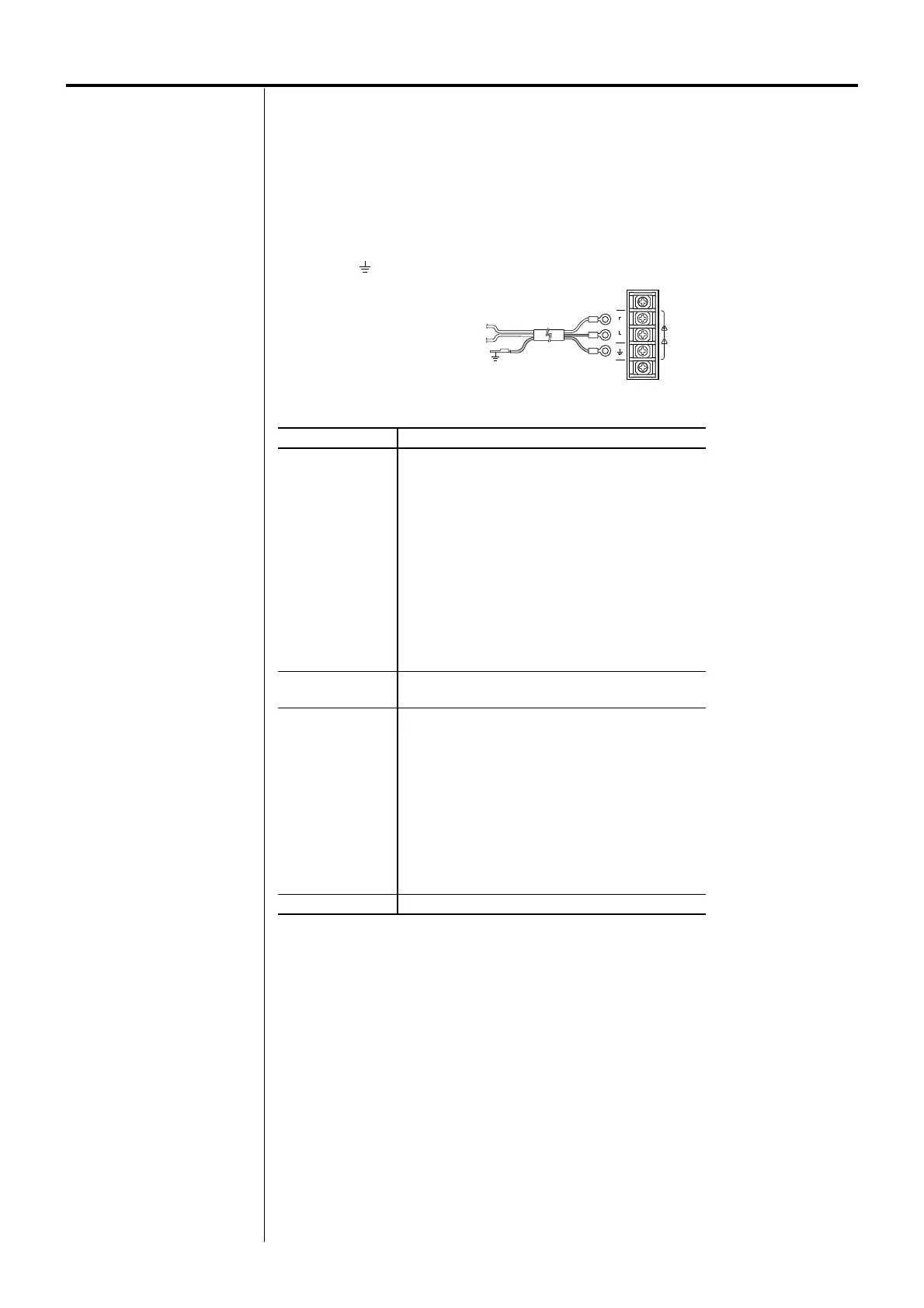

Connecting to the power supply
Connect the power cable to the L and N terminals or the L1, L2 and L3 terminals of the
power-supply terminals located on the driver.
For single-phase 100-115 V unit
Connect the live side of the single-phase 100-115 V power cable to the L terminal and the
neutral side to the N terminal.
Connect the terminal to the grounding point of the power source.
Unit name
AS66AA-T
AS66MA-T
AS66AA-P
AS66MA-P
AS66AA-N
AS66MA-N
AS66AA2-H
AS66MA2-H
AS66AA-H
AS66MA-H
AS66AA
AS66MA
AS69AA
AS69MA
AS98AA-T
AS98MA-T
AS98AA-P
AS98MA-P
AS98AA-N
AS98MA-N
AS98AA-H
AS98MA-H
AS98AA
AS98MA
AS911AA
Power/current capacity
Single-phase 100-115 V
+10%
5 A or more
Single-phase 100-115 V
+10%
6.4 A or more
Single-phase 100-115 V
+10%
6 A or more
Single-phase 100-115 V
+10%
6.5 A or more
-
15%
-
15%
-
15%
-
15%
The square box in the unit model will contain a value representing the gear ratio.
