29
L
200-
230V
N
~
Single-phase
200-230 V
50/60 Hz

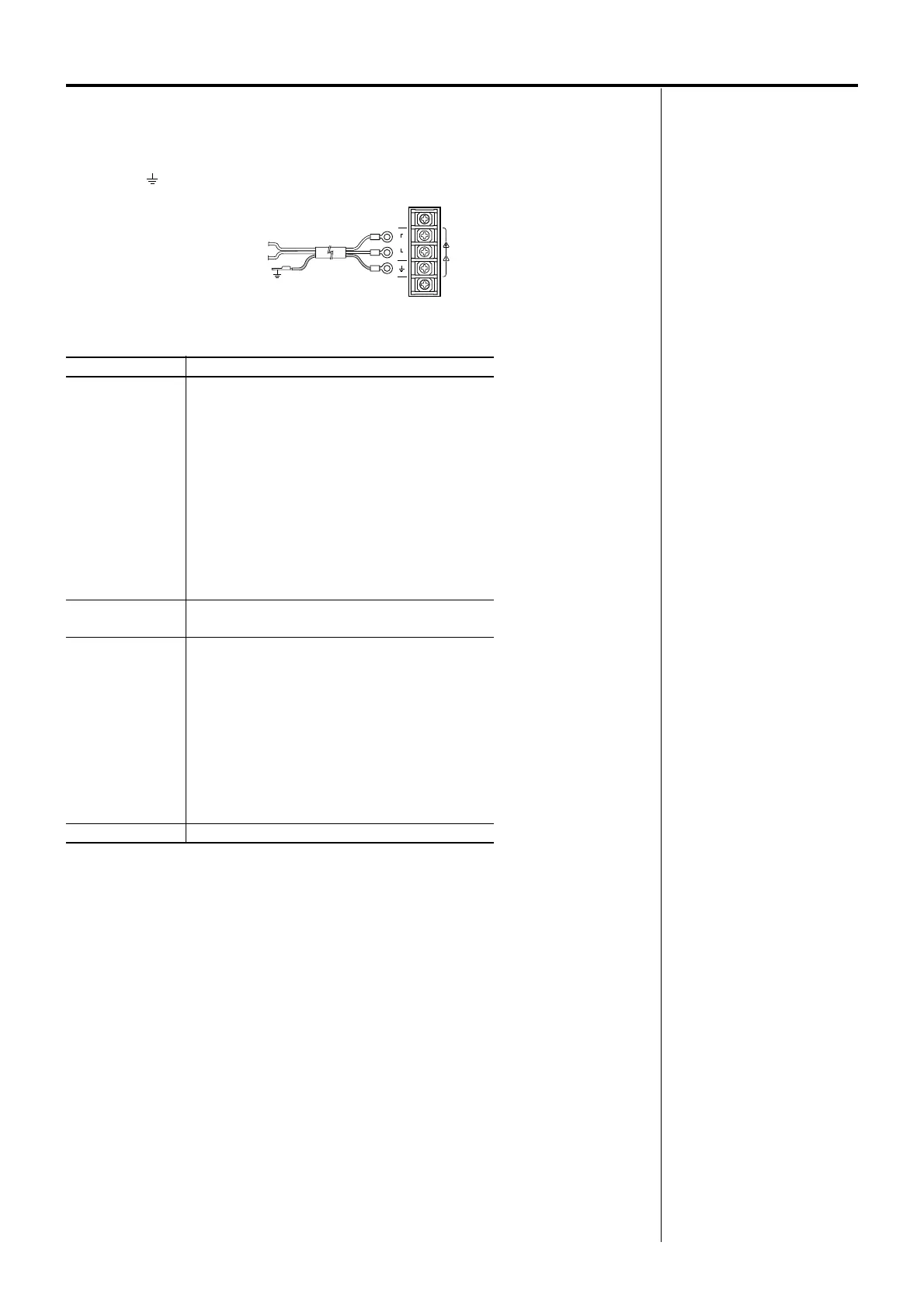

For single-phase 200-230 V unit
Connect the live side of the single-phase 200-230 V power cable to the L terminal and the
neutral side to the N terminal.
Connect the terminal to the grounding point of the power source.
Use a power supply capable of supplying the power/current capacity as shown below.
Unit name
AS66AC-T
AS66MC-T
AS66AC-P
AS66MC-P
AS66AC-N
AS66MC-N
AS66AC2-H
AS66MC2-H
AS66AC-H
AS66MC-H
AS66AC
AS66MC
AS69AC
AS69MC
AS98AC-T
AS98MC-T
AS98AC-P
AS98MC-P
AS98AC-N
AS98MC-N
AS98AC-H
AS98MC-H
AS98AC
AS98MC
AS911AC
Power/current capacity
Single-phase 200-230 V
+10%
3 A or more
Single-phase 200-230 V
+10%
3.9 A or more
Single-phase 200-230 V
+10%
3.5 A or more
Single-phase 200-230 V
+10%
4.5 A or more
-
15%
-
15%
-
15%
-
15%
The square box in the unit model will contain a value representing the gear ratio.
