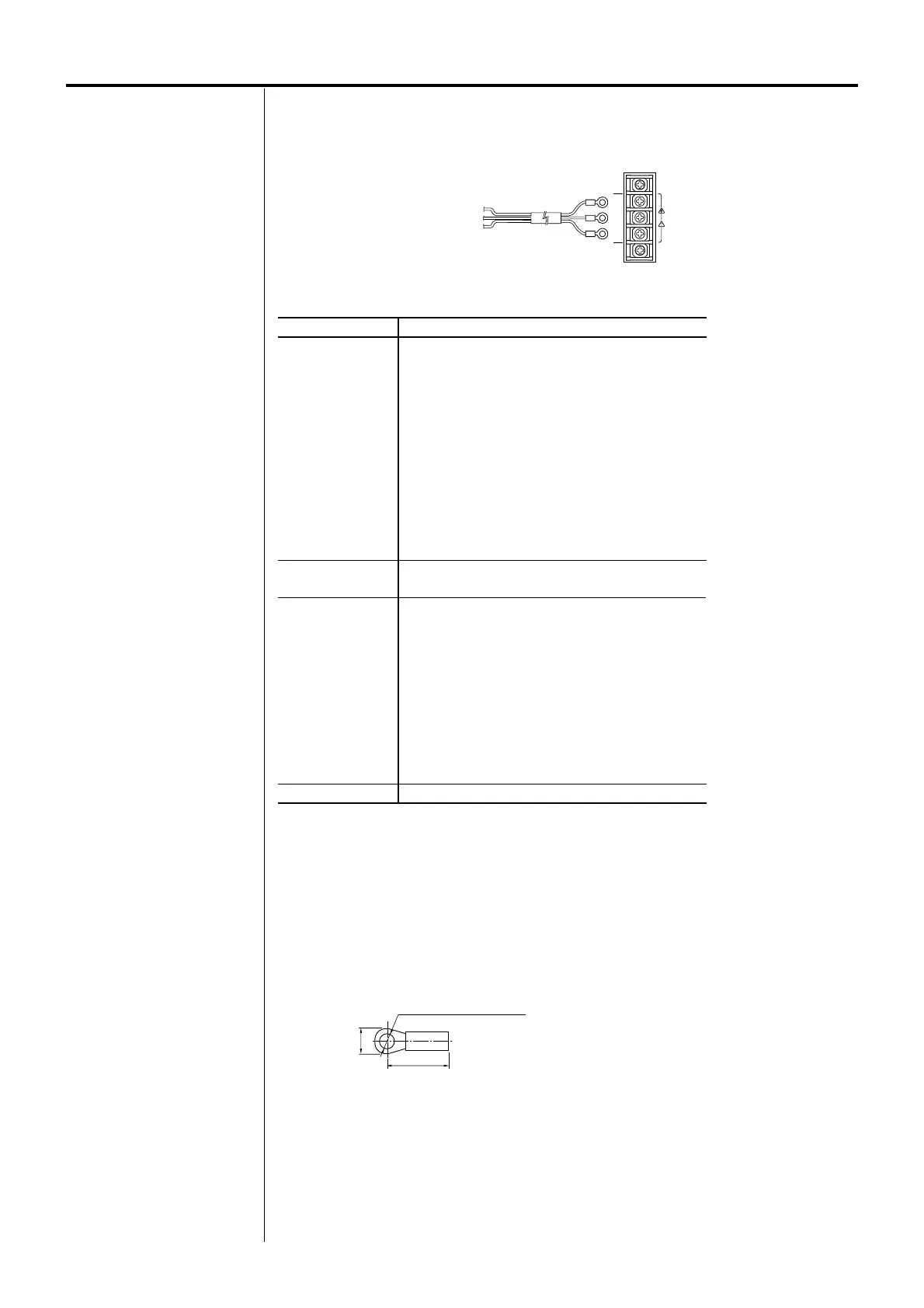

For three-phase 200-230 V unit
Connect the U, V and W phase lines of the three-phase 200-230 V power cable to the L1, L2
and L3 terminals, respectively.
Terminal screw size and cable size for power connection
Screw size: M3
Tightening torque: 0.8 to 1.0 N·m (113 to 141 oz-in)
Cable size capacity: AWG18 (0.75 mm
2
)
Use round, insulated crimp terminals for connection.
L1
L2
L3
Three-phase
200-230 V
50/60 Hz
Ø3.2 (0.13 DIA.) minimum
9 (0.35) minimum
6.2 (0.24) maximum
[Unit: mm
(inch)]
Use a power supply capable of supplying the power/current capacity as shown below.
Unit name
AS66AS-T
AS66MS-T
AS66AS-P
AS66MS-P
AS66AS-N
AS66MS-N
AS66AS2-H
AS66MS2-H
AS66AS-H
AS66MS-H
AS66AS
AS66MS
AS69AS
AS69MS
AS98AS-T
AS98MS-T
AS98AS-P
AS98MS-P
AS98AS-N
AS98MS-N
AS98AS-H
AS98MS-H
AS98AS
AS98MS
AS911AS
Power/current capacity
Single-phase 200-230 V
+10%
1.5 A or more
Single-phase 200-230 V
+10%
2.2 A or more
Single-phase 200-230 V
+10%
1.9 A or more
Single-phase 200-230 V
+10%
2.4 A or more
-
15%
-
15%
-
15%
-
15%
The square box in the unit model will contain a value representing the gear ratio.
