16
Hexagonal nut
Mounting plate
Spring washer
Spot facing or through hole for pilot
Hexagonal socket
screw
Note
Insert the pilot located on the
motor’s installation surface into
the mounting plate’s countersunk
or through hole.
Installation
This section covers the environment and method of installing the motor and driver, along with
load installation.
Also covered in this section are the installation and wiring methods that are in compliance with
the relevant EMC directives (89/336/EEC, 92/31/EEC).
Location for installation
The motor and driver are designed and manufactured for installation in equipment.
Install them in a well-ventilated location that provides easy access for inspection. The location
must also satisfy the following conditions:
• Inside an enclosure that is installed indoors (provide vent holes)
• Operating ambient temperature Motor: 0°C to +50°C (+32°F to +122°F) (non-freezing)
Harmonic geared type: 0°C to +40°C (+32°F to +104°F)
(non-freezing)
Driver: 0°C to +50°C (+32°F to +122°F) (non-freezing)
• Operating ambient humidity 85%, maximum (no condensation)
• Area that is free from an explosive nature or toxic gas (such as sulfuric gas) or liquid
• Area not exposed to direct sun
• Area free of excessive amount dust, iron particles or the like
• Area not subject to splashing water (storms, water droplets), oil (oil droplets) or other liquids
• Area free of excessive salt
• Area not subject to continuous vibration or excessive shocks
• Area free of excessive electromagnetic noise (from welders, power machinery, etc.)
• Area free of radioactive materials, magnetic fields or vacuum
• 1000 m or lower above sea level
Installing the motor
How to install the motor
Install the motor onto an appropriate flat metal plate having excellent vibration resistance and
heat conductivity.
When installing the motor, secure it with four bolts (not supplied) through the four mounting
holes provided. Leave no gap between the motor and plate.

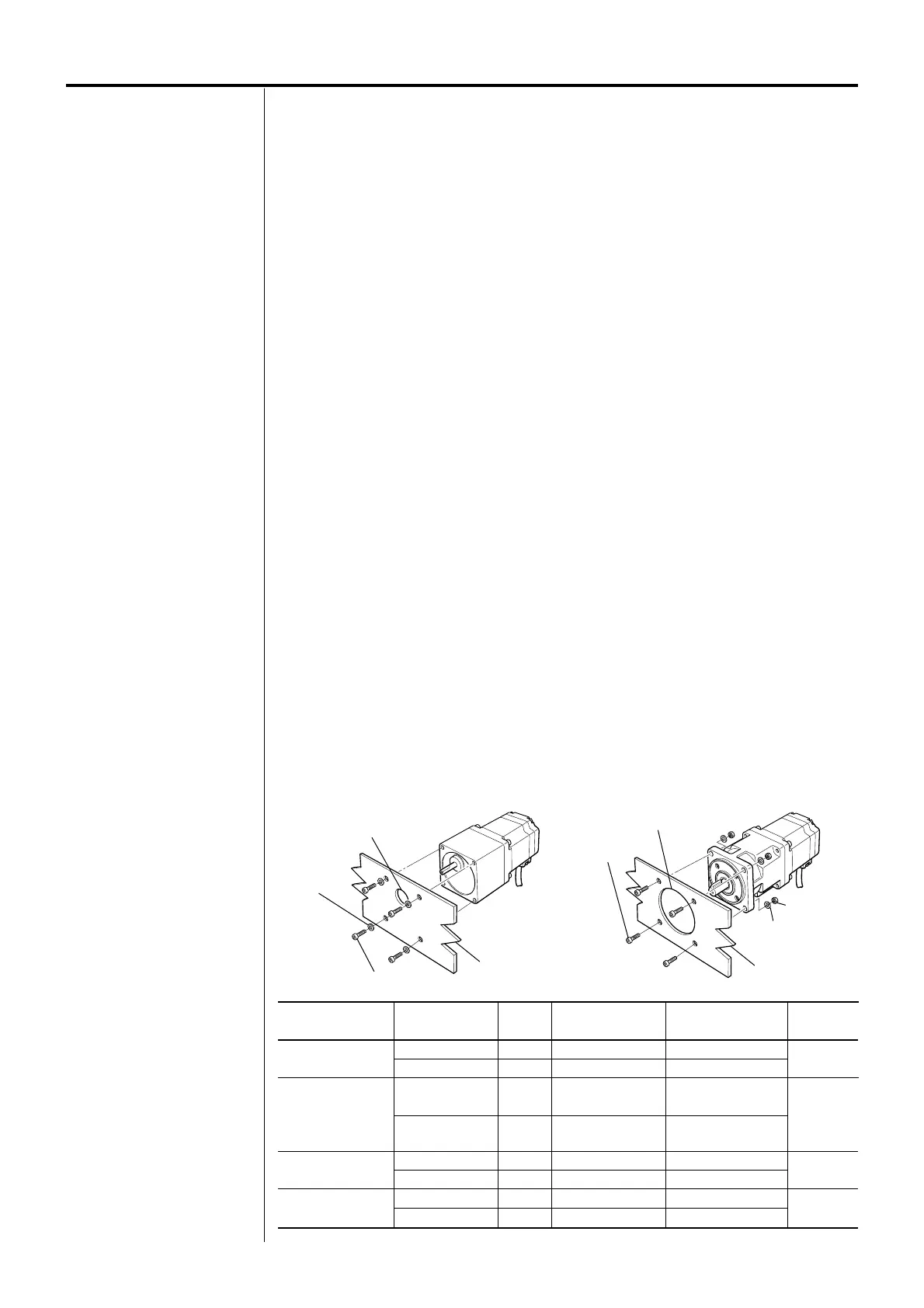

• Types of installation
A B
Motor type
TH geared
PL geared
PN geared
Harmonic geared
AS66A2, AS66M2
Harmonic geared
AS66A, AS98A
Round shaft
Bolt size
M4
M8
M5
M8
M5
M8
M4
M6
Tightening torque
2 N·m (277 oz-in)
4 N·m (554 oz-in)
2.5 N·m (346 oz-in)
4 N·m (554 oz-in)
2.5 N·m (346 oz-in)
4 N·m (554 oz-in)
2 N·m (277 oz-in)
3 N·m (415 oz-in)
Effective depth of bolt
8 mm (0.315 in.)
15 mm (0.591 in.)
10 mm (0.394 in.)
15 mm (0.591 in.)
-
-
-
-
Types of
installation
A
A
B
B
Frame size
60 mm (2.36 in.)
90 mm (3.54 in.)
60 mm (2.36 in.)
90 mm (3.54 in.)
60 mm (2.36 in.)
90 mm (3.54 in.)
60 mm (2.36 in.)
85 mm (3.35 in.)
Hexagonal socket screw
Mounting plate
Spot facing or through hole for pilot
Spring washer
