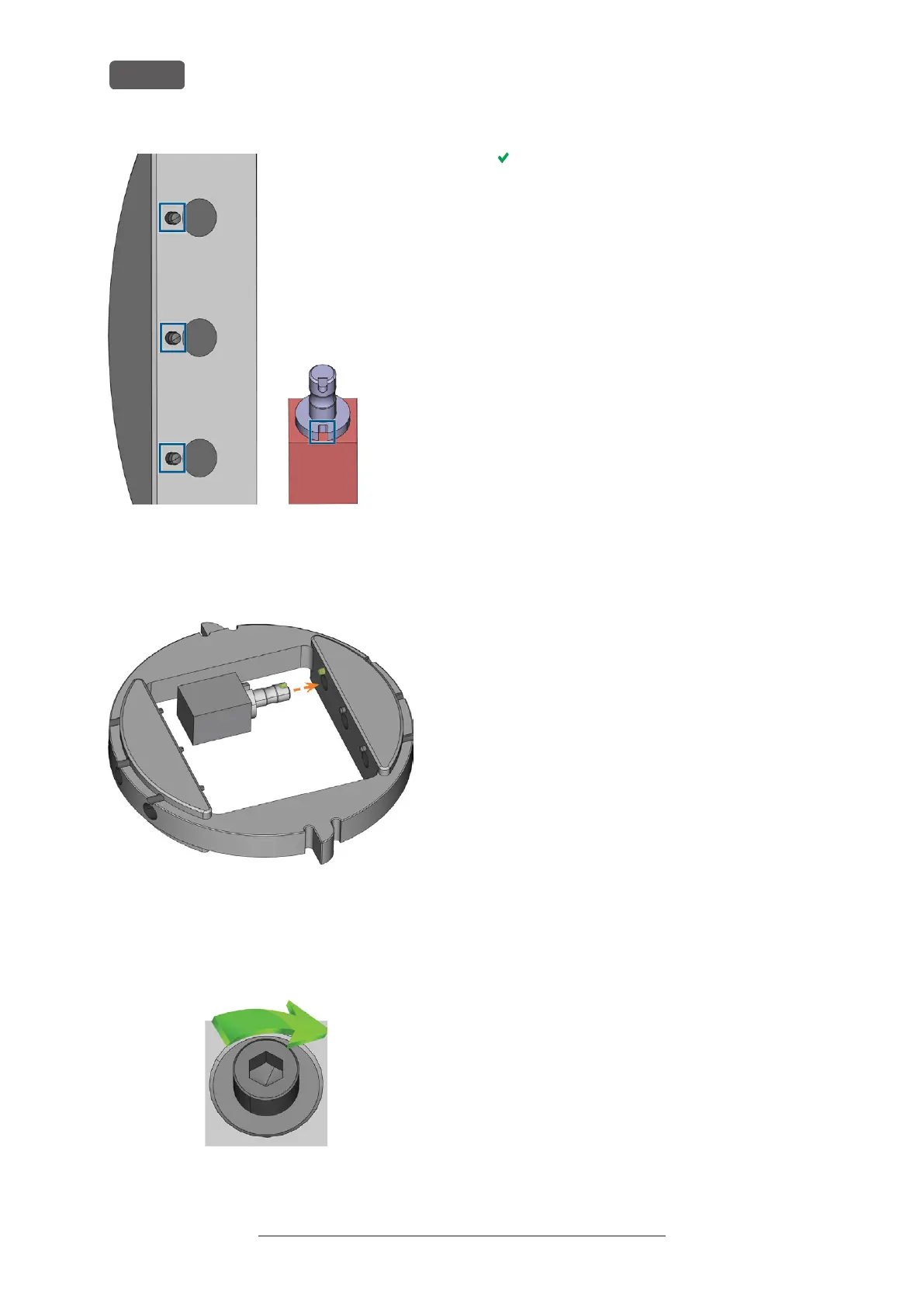

FIG. 45 POSITIONING PINS (LEFT MARKINGS) MUST LIE IN THE
GROOVE IN THE SHAFT (RIGHT MARKING)
4. Insert the shaft of the block into the desired pos-
ition in the block holder until it is firmly seated.
FIG. 46 INSERTING A BLOCK INTO THE BLOCK HOLDER (HERE SHOWN
FROM BELOW; GROOVE AND POSITIONING PIN MARKED GREEN)
5. Use the provided torque wrench to fixate the block
with the corresponding fixing screw. Tighten the
screw firmly.
FIG. 47 SCREWING DOWN THE SCREW TO IMMOBILIZE THE BLOCK
You can now mount the block holder.
Original Operating Instructions:R5
Version: 12/16/2021
R5 – Operation: Preparing jobs
EN 38
