VHF R5 - Exchanging the Carbon Filter

8.11 Exchanging the carbon filter
The cooling liquid tank of your machine is equipped
with a cooling liquid filter that consists of different filter
materials and includes the carbon filter. The carbon
filter contains activated carbon pellets that you need to
exchange regularly.

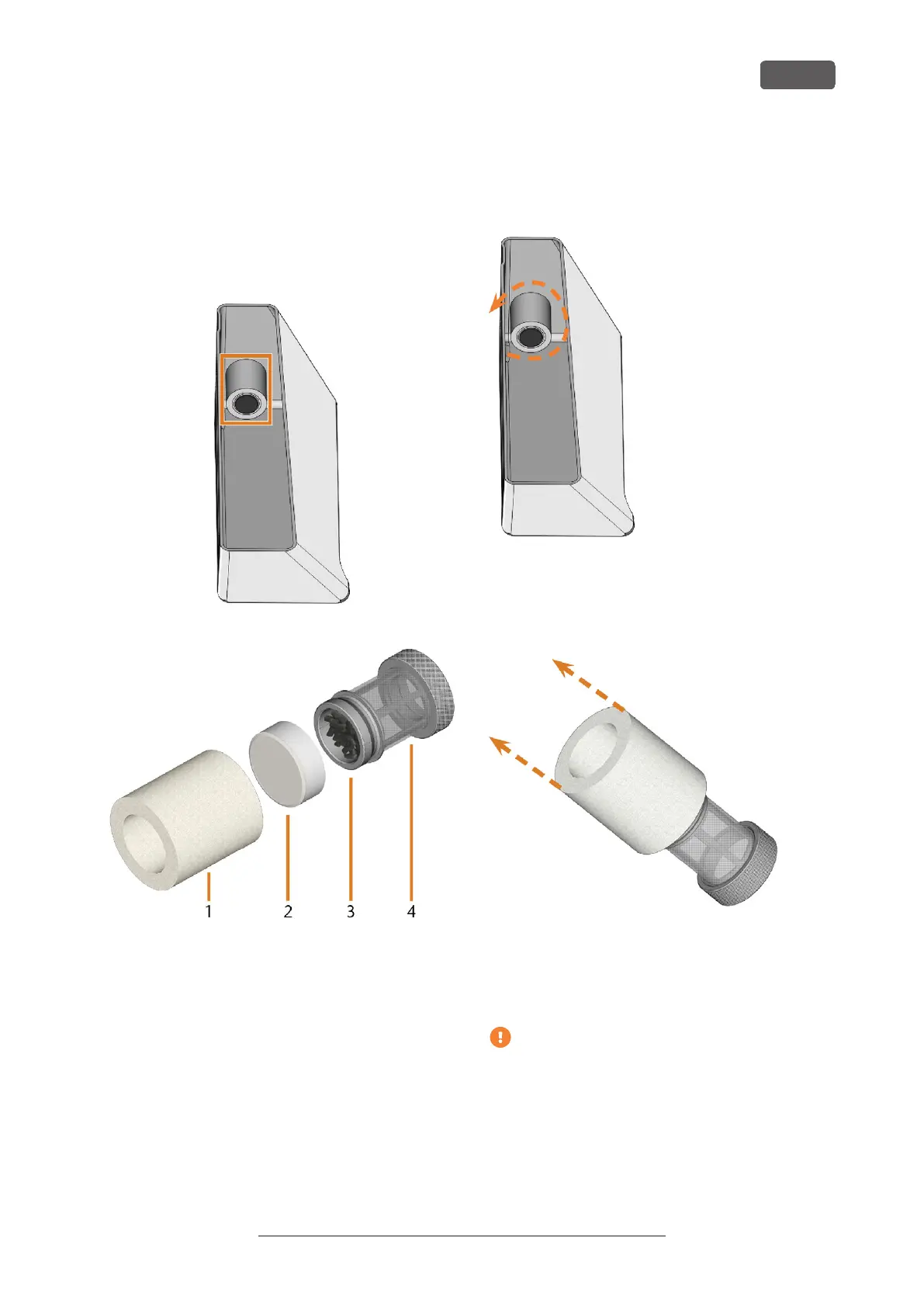

FIG. 92 COOLING LIQUID FILTER IN THE TANK
FIG. 93 THE COMPONENTS OF THE COOLING LIQUID FILTER
1. Fine filter
2. Carbon filter cap
3. Carbon filter
4. Mesh filter
To exchange the activated carbon pellets and clean the
filter, do the following:
1. Empty and clean the cooling liquid tank.
2. Unscrew the filter in the cooling liquid tank with
your hand and remove the filter.
FIG. 94 UNSCREWING THE COOLING LIQUID FILTER
3. Remove the fine filter by stretching the top end a
bit and straightly pulling it off the filter with both
hands.
FIG. 95 REMOVING THE FINE FILTER
4. Clean the fine filter under running water. If the fine
filter is too soiled for proper cleaning, replace it
with a new one when reassembling the filter.
If you tilt the filter or move it abruptly in the
next step, you may spill the activated carbon
pellets.
