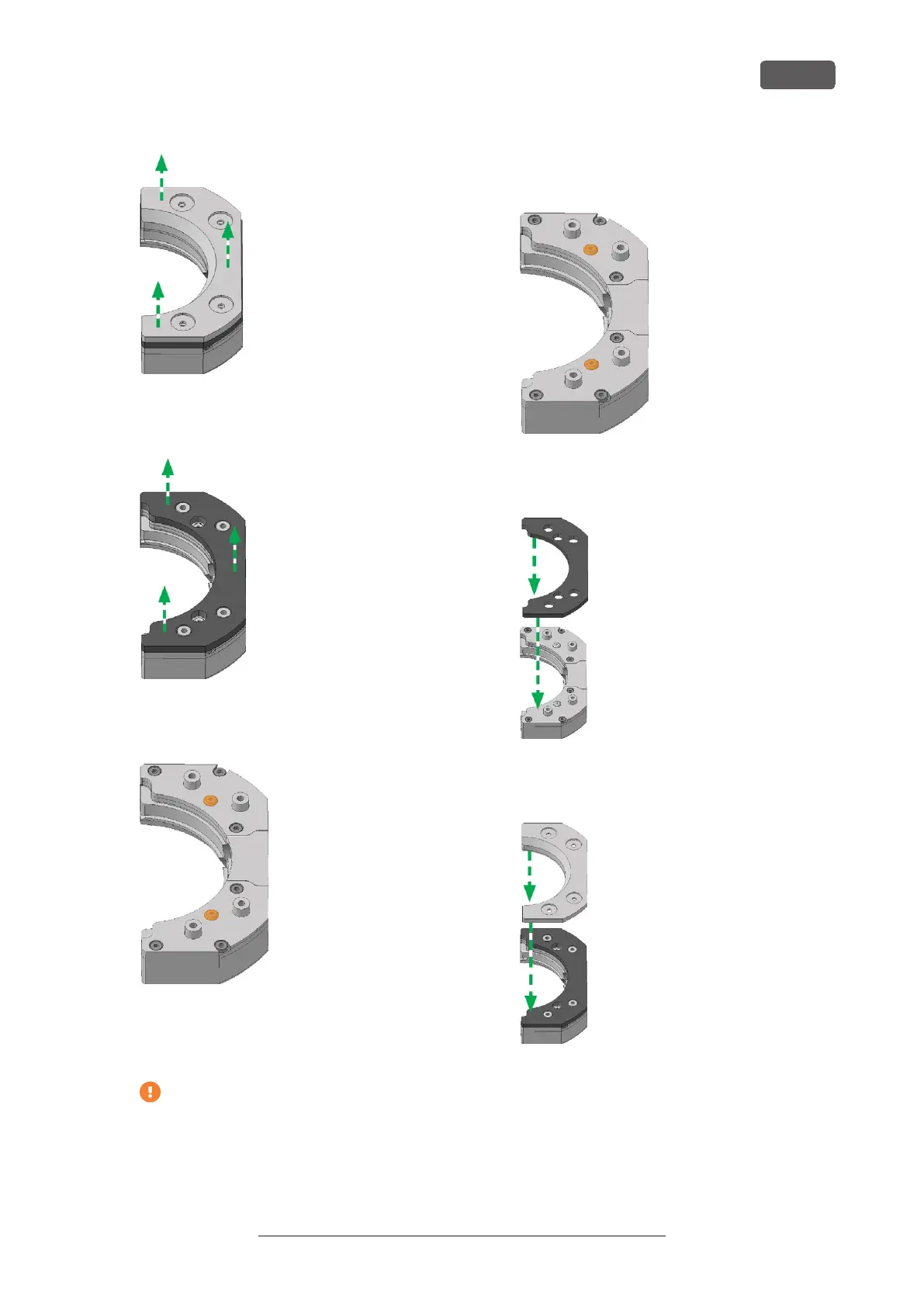

FIG. 100 LIFTING OFF THE WORKHOLDING STRAP
6. Lift off the gasket.
FIG. 101 LIFTING OFF THE GASKET
7. Remove the 2 valves (marked orange) by hand.
FIG. 102 VALVES
8. Clean the blank holder thoroughly with a damp
cloth and a brush.
The lower part of the blank holder is not to
be wet, otherwise sensitive parts of the
clamping mechanism may rust. Make sure
only to use a damp cloth.
9. Press the 2 new valves (marked orange) by hand
into the respective drilling within the blank holder.
FIG. 103 VALVES
10. Install the new gasket.
FIG. 104 INSTALLING THE NEW GASKET
11. Install the workholding strap.
FIG. 105 INSTALLING THE WORKHOLDING STRAP
R5 – Maintenance and do-it-yourself
EN 63
Original Operating Instructions:R5
Version: 12/16/2021
