Servicing
39

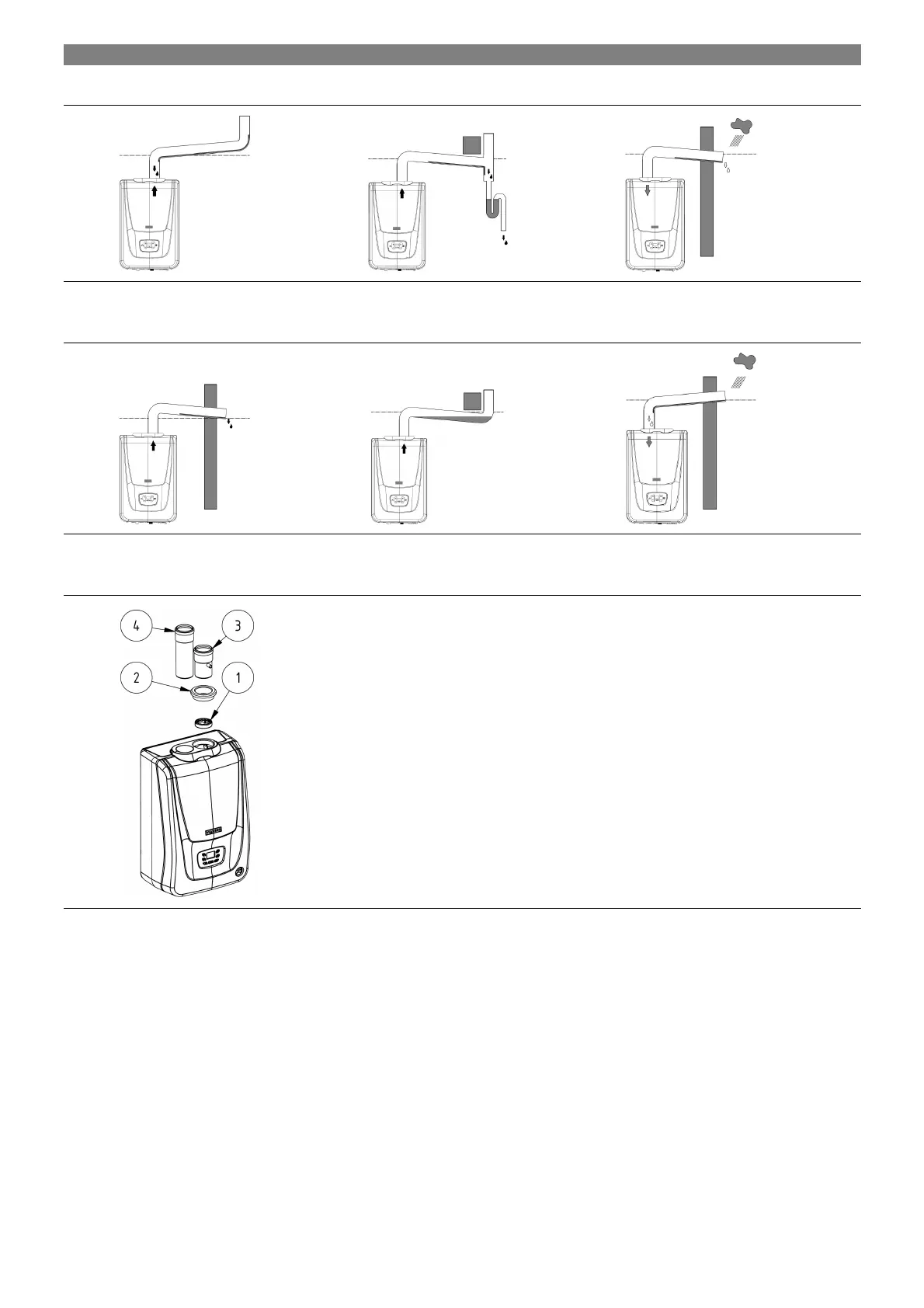

11.1 Flue gas ducting – examples of correct connection of flue duct and air supply
Fig. . 25
11.2 Flue gas ducting – examples of incorrect connection of flue duct and air supply
Fig. . 26
11.3 STARR D80 and FLEX 80 system connection
Fig. . 27
1 reducing insert
2 transition piece
3 flue gas exhaust, measuring piece
4 air intake pipe
In case of using the flue gas exhaust with the diameter of 60/100 mm it is necessary to use
reducing insert of the exchanger. In case of using the flue gas exhaust with the diameter of
80/125 mm, this insert must be removed from the exchanger.
