NM PLUS HYDROGEN GENERATOR
USER MANUAL
www.vicidbs.com
Version 1.06.0000
PART NUMBER DESCRIPTION
DB-H200-031 Deionizer bags (pk 2)
DB-10573 Maintenance kit for NM Plus contains:
• Water tubing kit plus
• Deionizer LE bag (Pack of 2 pcs.)
• Perma pure dryer tubing (2 pcs)
• GLS Service Kit
9.2. Maintenance Kit
10. SCHEMATICS
NM PLUS CELL
PART #
DRYER PART #
(PURGE FLOW)
FLOW METER
PART # (TYPE)
WATER
BYPASS
BUFFER
RESERVOIR
100/160 DB-CELL-MI DB-NMP200-000
(50 mL)
DB-10562 (low ow) Yes No
250/300 DB-CELL-MU1 DB-NMP200-000
(50 mL)
DB-10562 (low ow) Yes No
400/500/600 DB-CELL-MU2 DB-NMP200-000
(50 mL)
DB-PH200-009
(high ow)
No No
1000 DB-CELL-MU3 DB-NMP200-001
(90 mL)
DB-PH200-009
(high ow)
No Yes
1350 DB-CELL-MU4 DB-10341 (120 mL) DB-PH200-009
(high ow)
No Yes

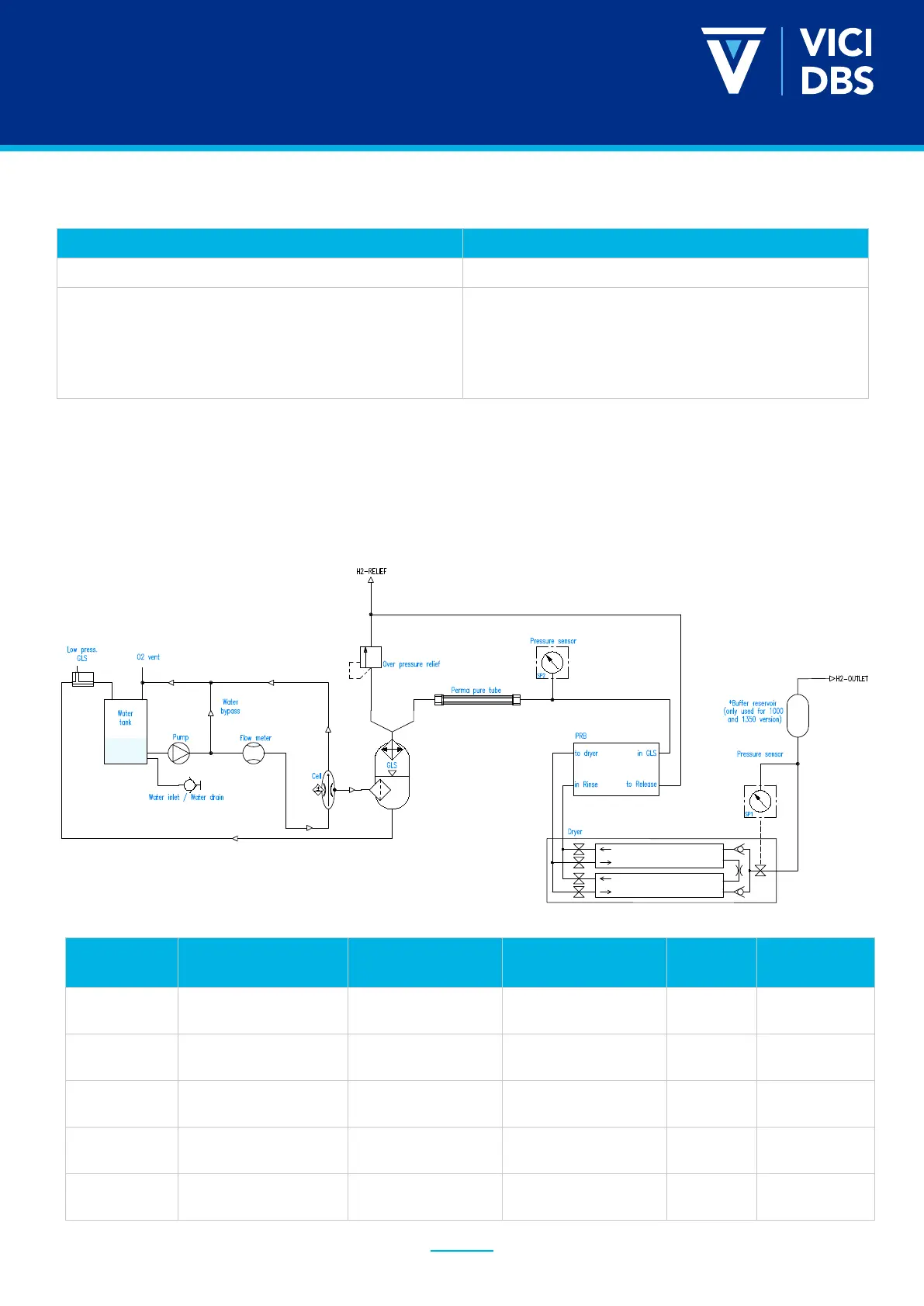

10.1. Fluidic Schematics
System:
Schematic no:
Date:
Created:
Checked:
Released:
THIS DOCUMENT AND THE INFORMATION WHICH
IT CONTAINS SHALL NOT BE USED, EXPLOITED
OR SOLD, AND SHALL NOT BE REVEALED OR
DISCLOSED TO OTHERS WITHOUT THE EXPRESS
WRITTEN PERMISSION OF VICI. THIS DOCUMENT
SHALL REMAIN THE PROPERTY OF VICI AND
SHALL BE RETURNED UPON DEMAND.
R
Rev.:
Sheet:
By:
Description:
ECN no:
NM Plus with PRB
water and hydrogen flow diagram
06.10.2020
06.10.2020
SBU
SB
1
1/1
