Assembly
15

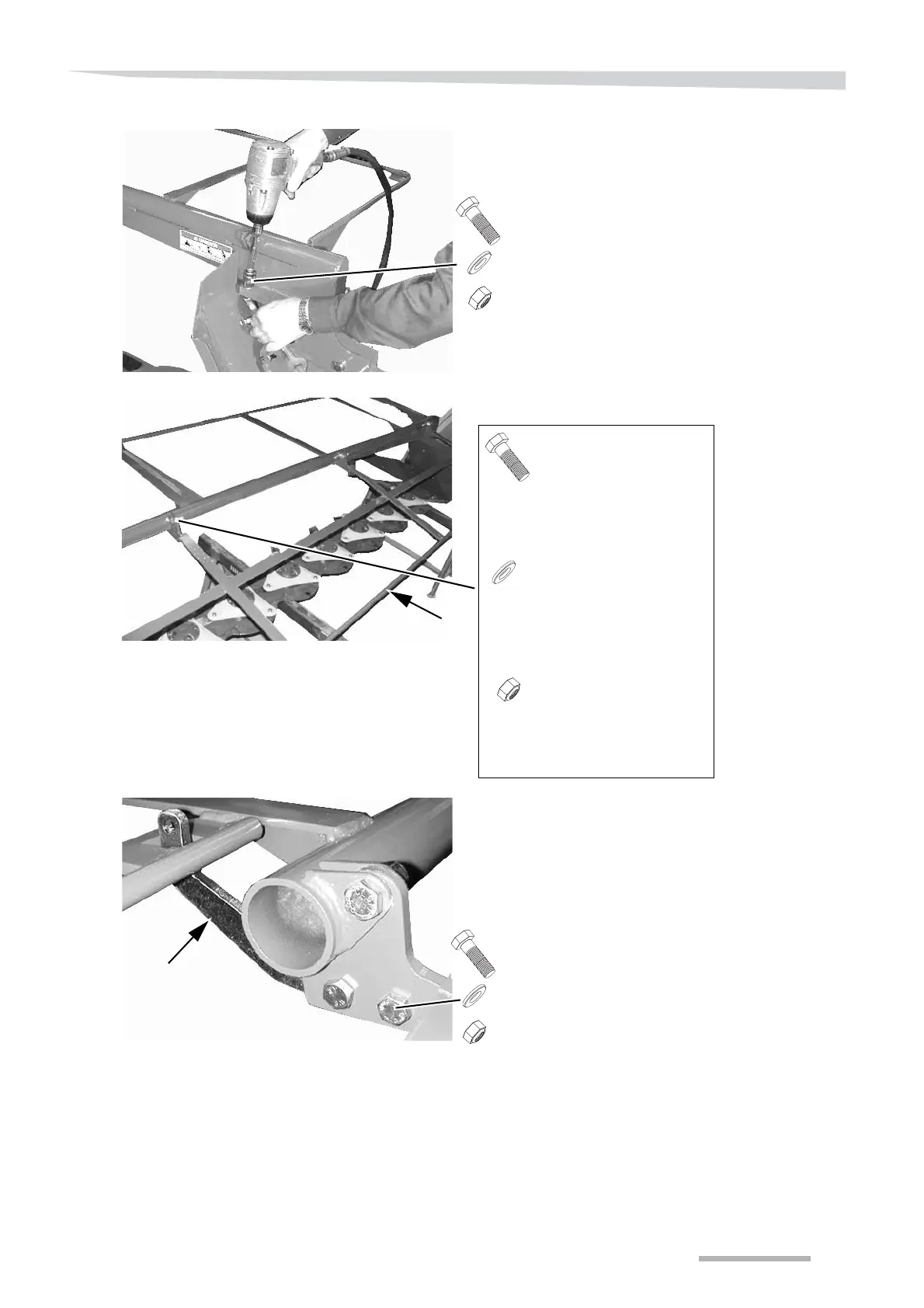

 Fit the rear tarpaulin frame .

Fit the front tarpaulin frame.
 Fit the bracket as shown.
M12 x 40 (8 pcs.)
ø13-ø24x2,5 (8 pcs.)
M12 Lock Nut (8 pcs.)
M12 x 40
ø13-ø24x2,5
224: 3 pcs.
228: 4 pcs.
232: 4 pcs.
224: 3 pcs.
228: 4 pcs.
232: 4 pcs.
M12 Lock Nut
224: 3 pcs.
228: 4 pcs.
232: 4 pcs.
M10 x 35 (2 pcs.)
ø10,5-ø20x2 (2 pcs.)
M10 Lock Nut (2 pcs.)
