Vicon Extra 232 - Support Leg and Locking Mechanism

Assembly
12

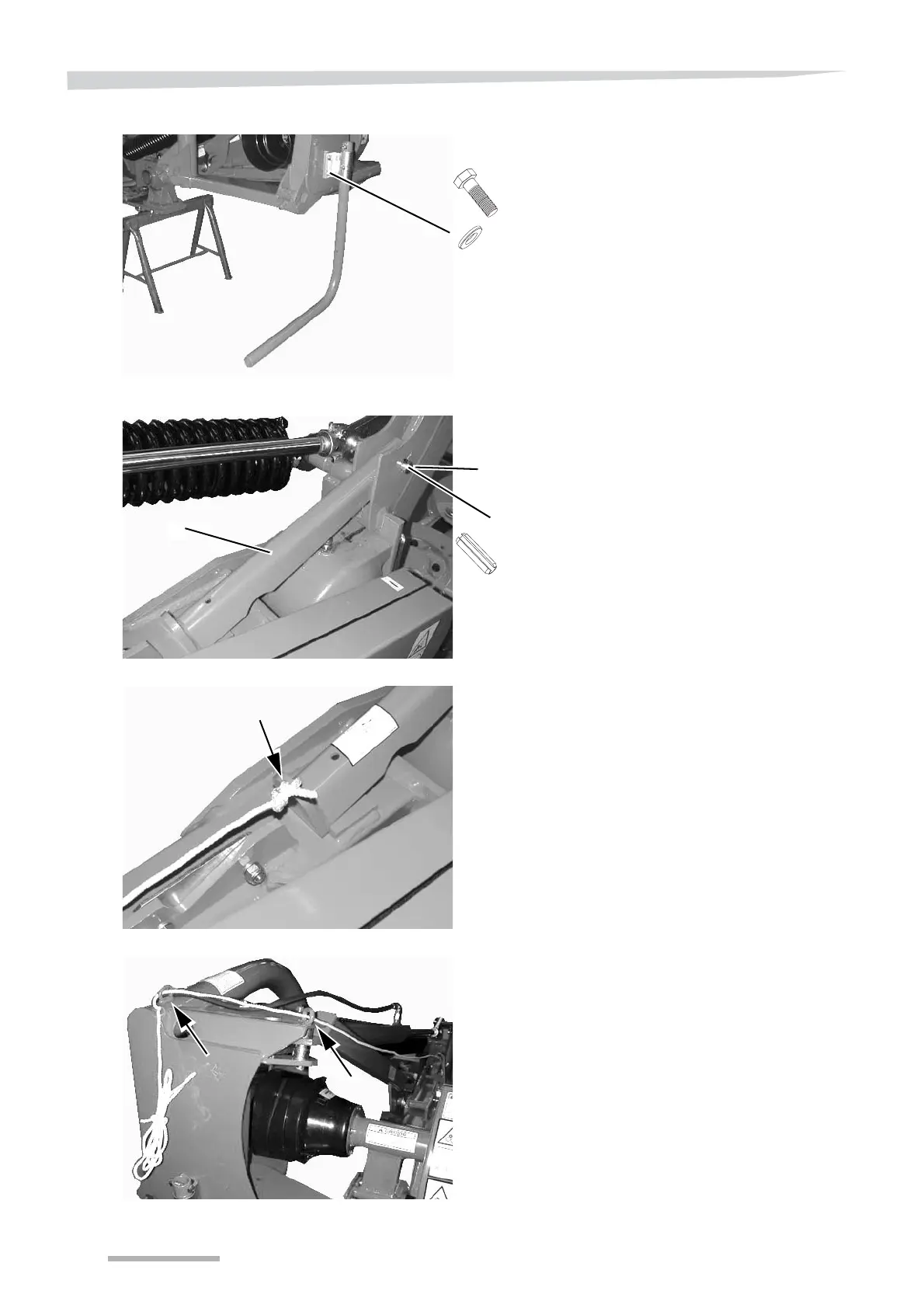

 Fit the support leg .

Fit the locking pawl “A” by means of the pin “B” .

Fit the string to the locking pawl .

Guide the string through the rings shown .
M12 x 40 (2 pcs.)
ø13-ø24x2,5 (2 pcs.)
ø6 x 30 (2 pcs.)
ø20 x 70
B
A
