PARAMETER DETAILS
Conguration Parameters Default Value Signicance and Adjustments
Onboard prot.
Read Only
Onboard Protocol
Onboard ZigBee detection
Display Readings: None, ZigBee
Optional prot.
Read Only
Optional Protocol
Requires ZigBee add-on module (VCM8000) or Wi-Fi module (VCM8002).
None: No module detected
ZigBee: ZigBee module detected
IP: Wi-Fi module detected
BAC. IP: Wi-Fi module detected and BACnet/IP enabled
Display Readings: None, ZigBee, IP or BAC. IP
Wired protocol
Default value: None
Wired Protocol
None: No wired protocol congured
BAC MSTP: BACnet MS/TP network protocol
Modbus: Modbus network protocol
Choices: None, BAC MSTP or Modbus
Network Screens
User can select wired BACnet / Modbus / ZigBee wireless protocol (when ZigBee feature is available).
NOTICE
UPGRADE OF ZIGBEE 2.4 TO 3.0
The upgrade from ZigBee 2.4 to 3.0 will not support the Green Power Sensor (SED-CO2-G-5045 or SED-TRH-G-5045). It will
therefore need to be recommissioned.
There is also a new “Security Levels” parameter for the Zigbee network (see page 20):
Low (default value) is fully backwards compatible with ZigBee Home Automation 1.2 devices, and therefore compatible with
all of our sensors.
Normal (needs to be selected by user) is only compatible with Green Power and ZigBee 3.0 (Leedarson sensors).
If the Normal Security Level is selected with old NYCE or Centralite sensors, they will be removed from the network.
Failure to follow these instructions can result in equipment being disconnected from the network.
Onboard prot.
Zigbee
Network
None
Wired protocol
Optional prot.
None

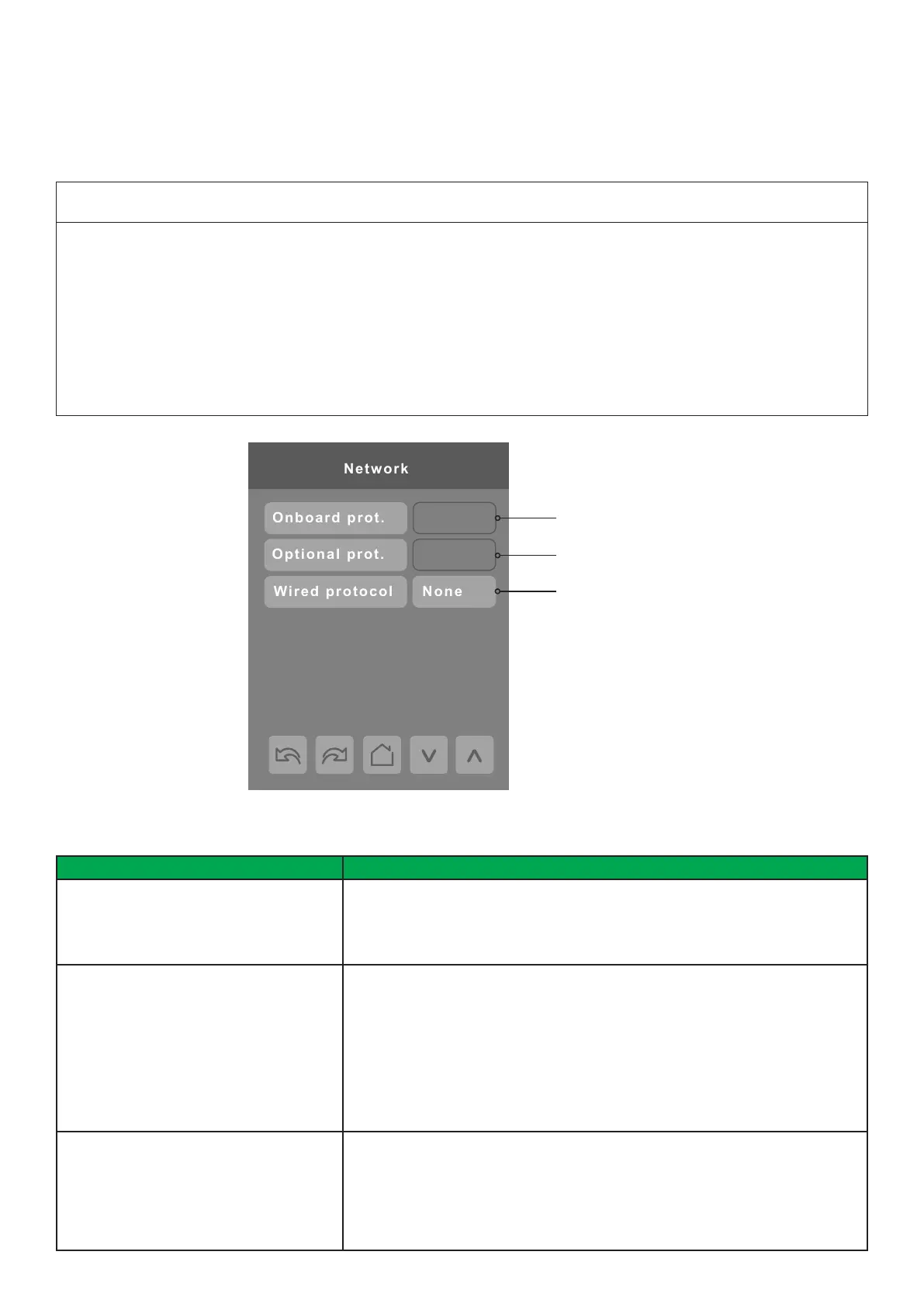

Type of expansion module:
ZigBee, IP or BAC. IP (Read Only)
Wired protocol (BACnet MS/TP or Modbus)
Onboard ZigBee detection (Read Only)
