ASSEMBLY PROCEDURES
11

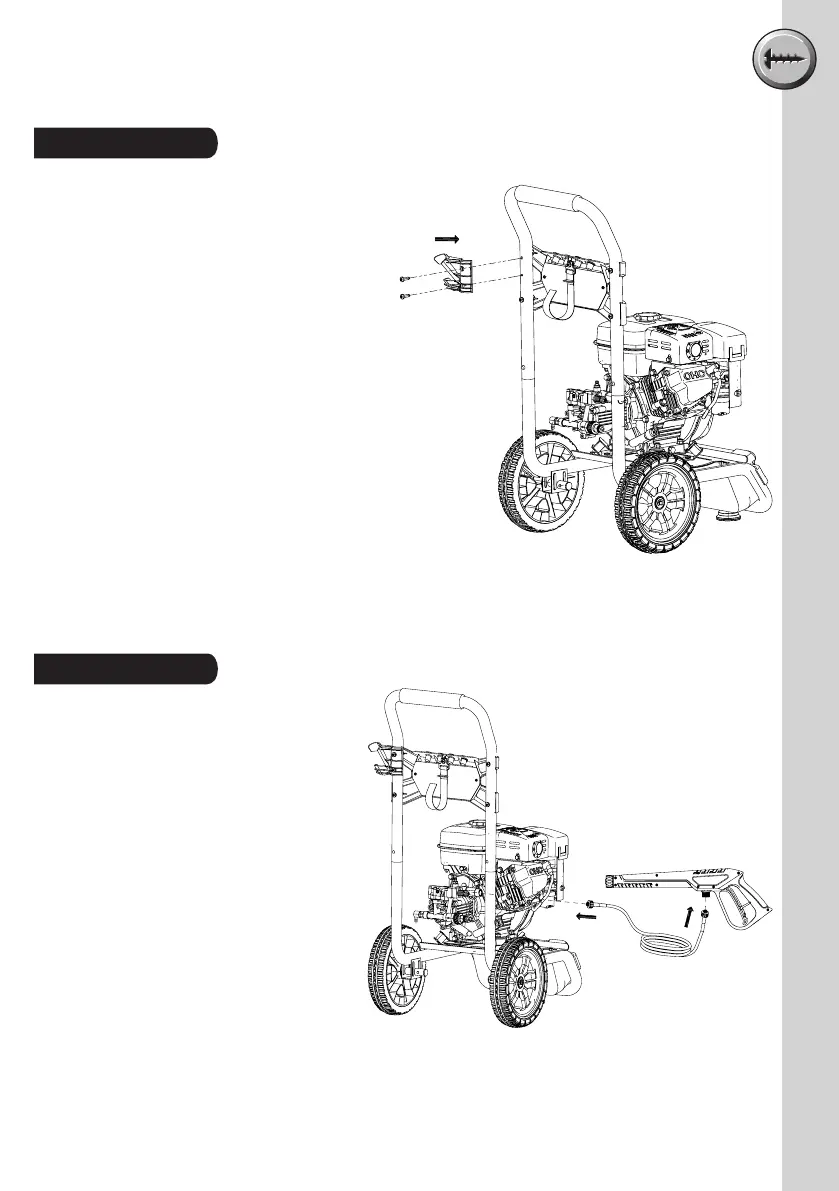

Installing the spray gun hook (Fig. 3)
a) Attached the spray gun hook to the upper
handle, aligning the holes in the spray gun
holder with the holes in the upper handle.
b) Fit the screws through the holes and fasten
the nuts .
Fig. 3
Connecting high pressure hose to the
pump outlet and gun connector (Fig. 4)
a) Uncoil the high pressure hose and
thread one end onto the spray gun.
b) Tighten the collar by hand to secure
the high pressure hose to the spray
gun.
c) Thread the opposite end onto the
pressure washer's water outlet (6).
d) Tighten the collar by hand to secure.
Fig. 4
STEP 3
STEP 4
