ASSEMBLY PROCEDURES
12

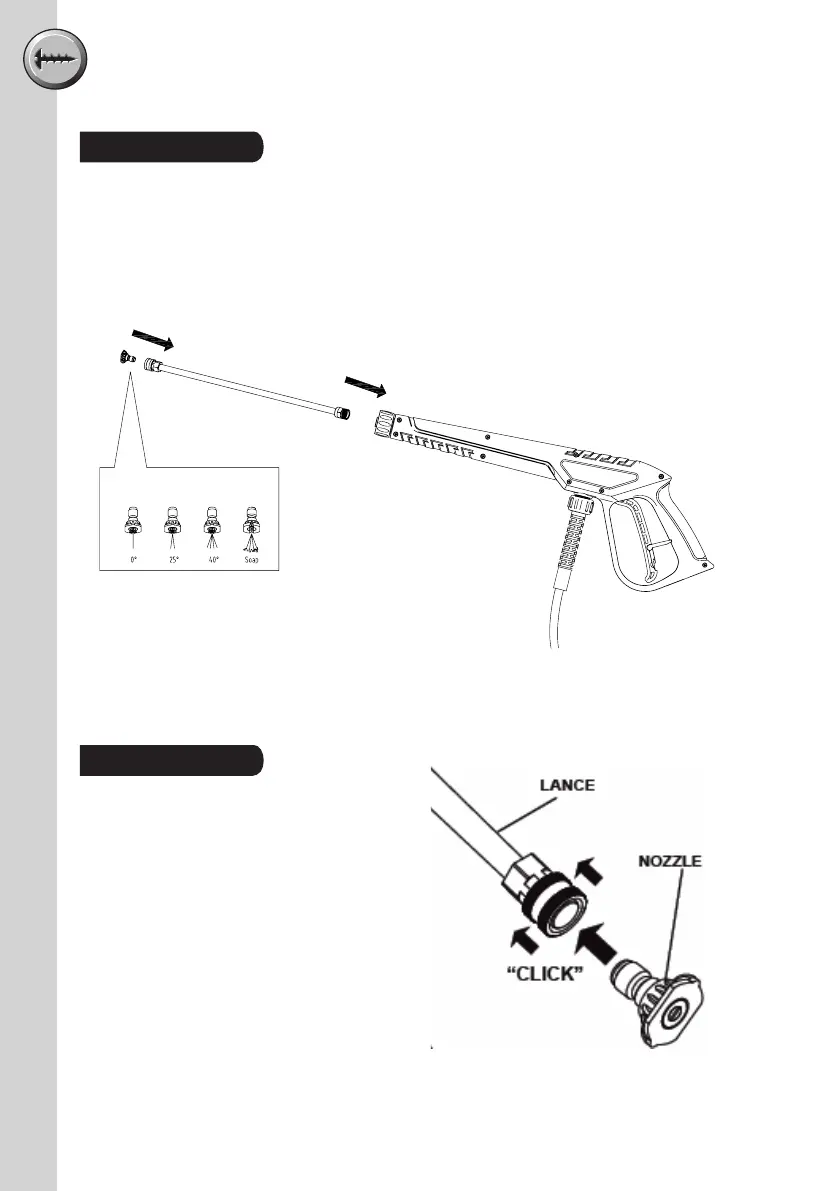

Fitting the lance to spray gun (Fig. 5)
a) Thread the lance onto spray gun.
b) Tighten the collar by hand to secure the
lance to the spray gun.
Fig. 5
Selecting and tting the nozzle (Fig. 6)
a) The lance has a quick connect coupler to t
dierent nozzels.
b) To install a nozzle to the quick connect
coupler, pull the coupler ring backward and
insert the desired nozzle, release the coupler
ring to lock it in place.
c) The nozzels have dierent spray patterns.
Fig. 6
STEP 5
STEP 6
