iCNC XT
3-2 INSTALLATION Manual 0-5299

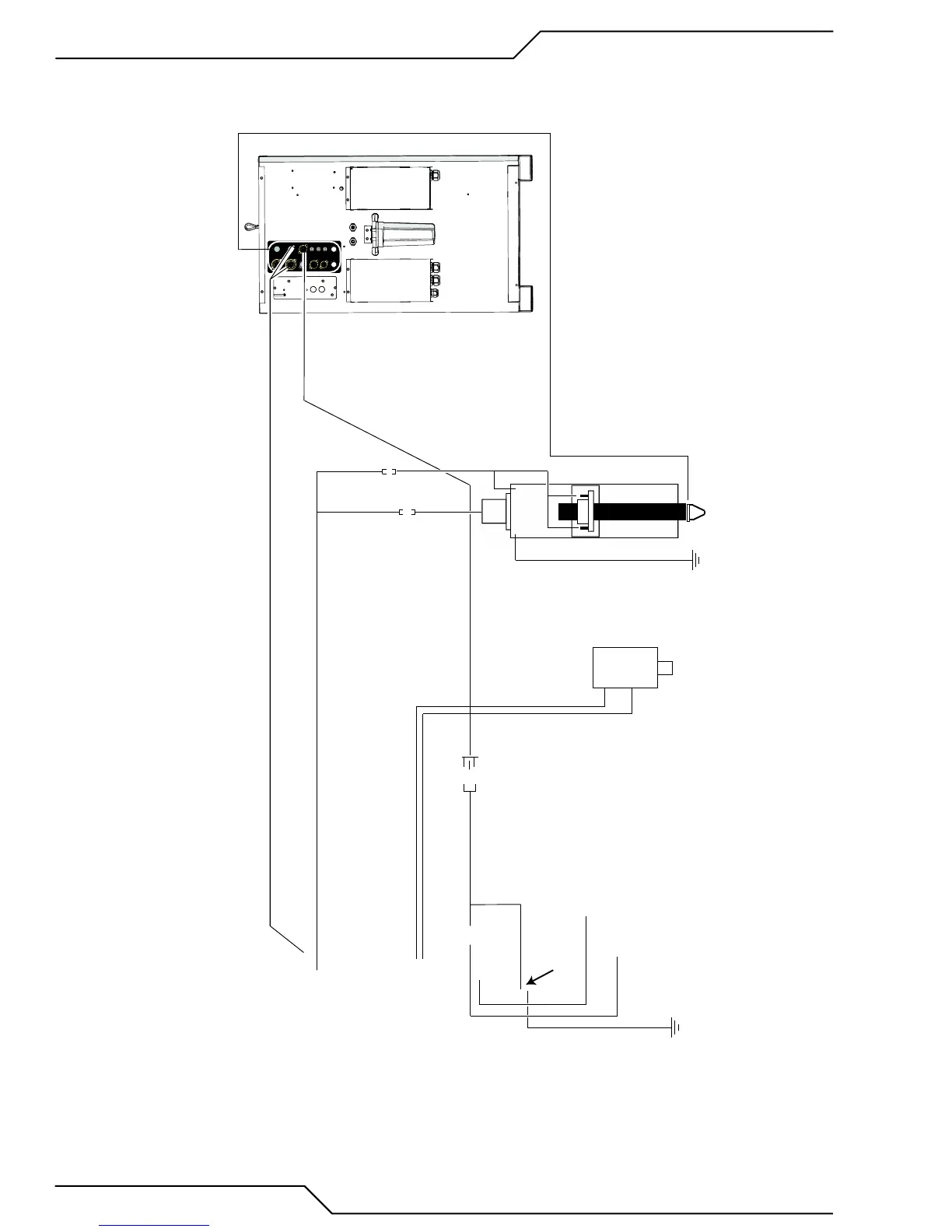

Cable routing suggestion
The idea is to put the plasma torch, work, electrode, ohmic grounds etc cables to the opposite side from the I/O, encoder and motor cables
(empty space shown in the picture). Use the gas hoses as a separator between the 2 cable sets.
USER INPUT
HEIGHT CONTROL
F1 - 8A SB 230 VAC F2 - 8A SB 230 VAC
CB4 - 5A 120 VAC
CB3 - 5A 24 VAC
CB2 - 5A 120 VAC
J55 - GCM
J15 - CNC
J59 - RAS
J70 - HE
J54 - TSC /COMM
CNC Connector J15 &
TSC/Comm J54
Ohmic sensing wire
15-2008 up to 30.5m
15-2009 over 30.5m
Height control
iHC Connector J102
X/Y/Y2 Motor Cable
X/Y/Y2 Encoder Cable
XT211/231 J30
XT-2/242 J25
COM1
iHC Connector J104
Adapter:
15-1194 for XT211
and 231
15-1195 for XT-2
and 242
Yaskawa Motor Cable
400W
15-1132 3m
15-1133 5m
15-1134 10m
15-1135 15m
15-1136 20m
Yaskawa Motor Cable
750W
15-1180 3m
15-1181 5m
15-1184 10m
15-1185 15m
15-1186 20m
Yaskawa Encoder Cable
15-1162 3m
15-1163 5m
15-1164 10m
15-1165 15m
15-1166 20m
iHC Motor Cable
15-1050 7.6m
15-1051 9.1m
15-1052 10.6m
15-1053 12.2m
15-1054 13.7m
Ultra-Cut XT Control & Voltage Divider Cable
15-1196 7.6m
15-1197 15.2m
15-1198 22.8m
15-1199 30.5m
15-1207 38.0m
9-9230 10 FT (3.0m)
9-9231 15 FR (4.6m)
9-9232 25 FT (7.6m)
9-9233 35 FT (10.6m)
9-9234 50 FT (15.2m)
9-9235 75 FT (23m)
9-9236 100 FT (30.5m)
9-9237 125 FT (38.0m)
9-9238 150 FT (45.6m)
9-9239 175 FT (53.3m)
15-1055 15.2m
15-1056 16.8m
15-1057 18.3m
15-1058 19.8m
15-1059 21.3m
Art # A-12368
External Remote
E-Stop. Customer
Supplied
Limits J16
Customer
Supplied
Ohmic Clip
9-9388
Encoder
Motor
Refer to grounding information
Refer to grounding information
#4
#4
