iCNC XT
3-10 INSTALLATION Manual 0-5299
3.8 Height Control,Communication and I/O Cables
1. Connect the plasma end of the communication cable to the plasma power supply connector J54 TCS /COMM
2. Connect the plasma end of the Plasma I/O Cable to the plasma power supply connector J15 CNC
3. Connect the plasma end of the Voltage Divider I/O Cable to the plasma power supply connector Height Control

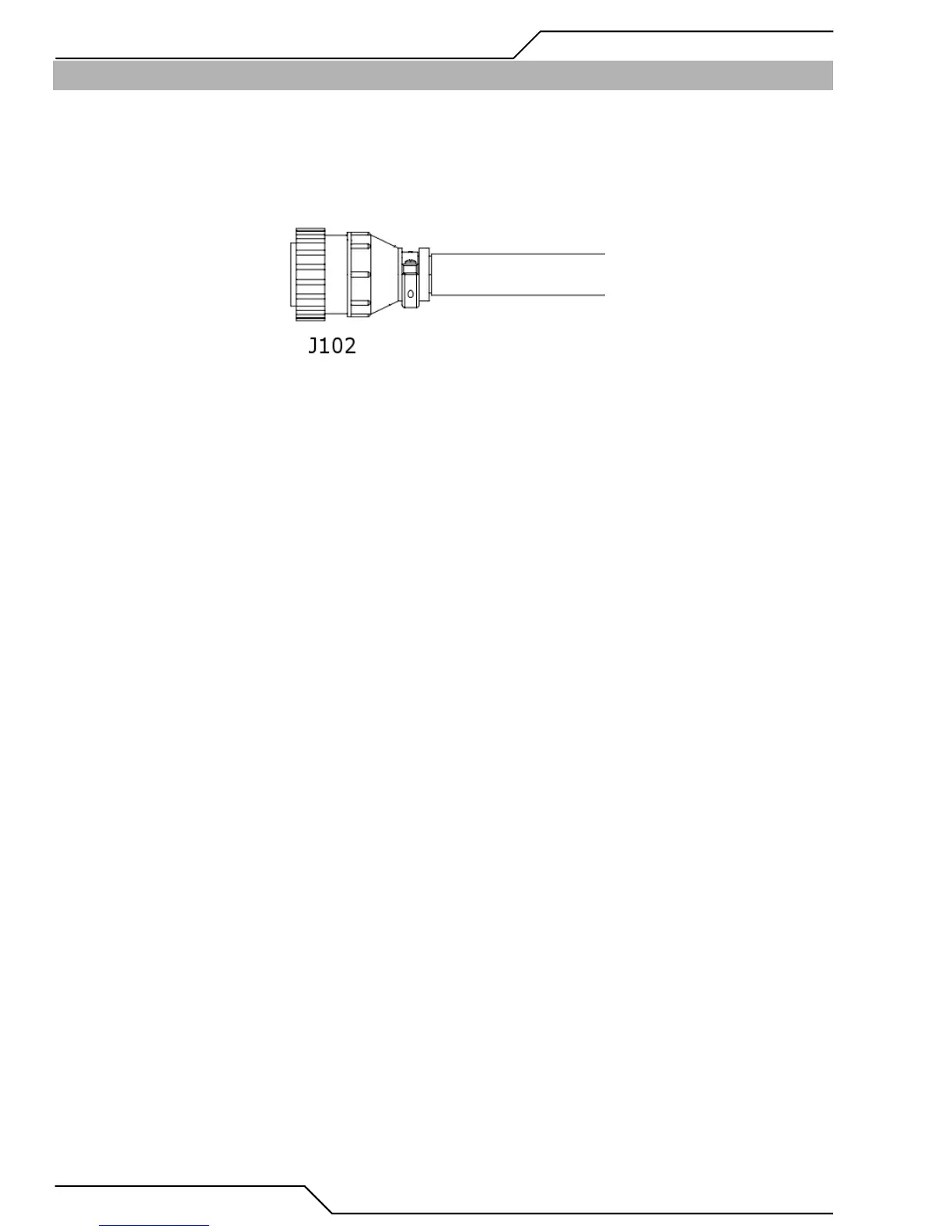

4. Connect the 37 pin male amp connector marked J102 to the J102 connector at the back of the XT CNC.
To Next Page
