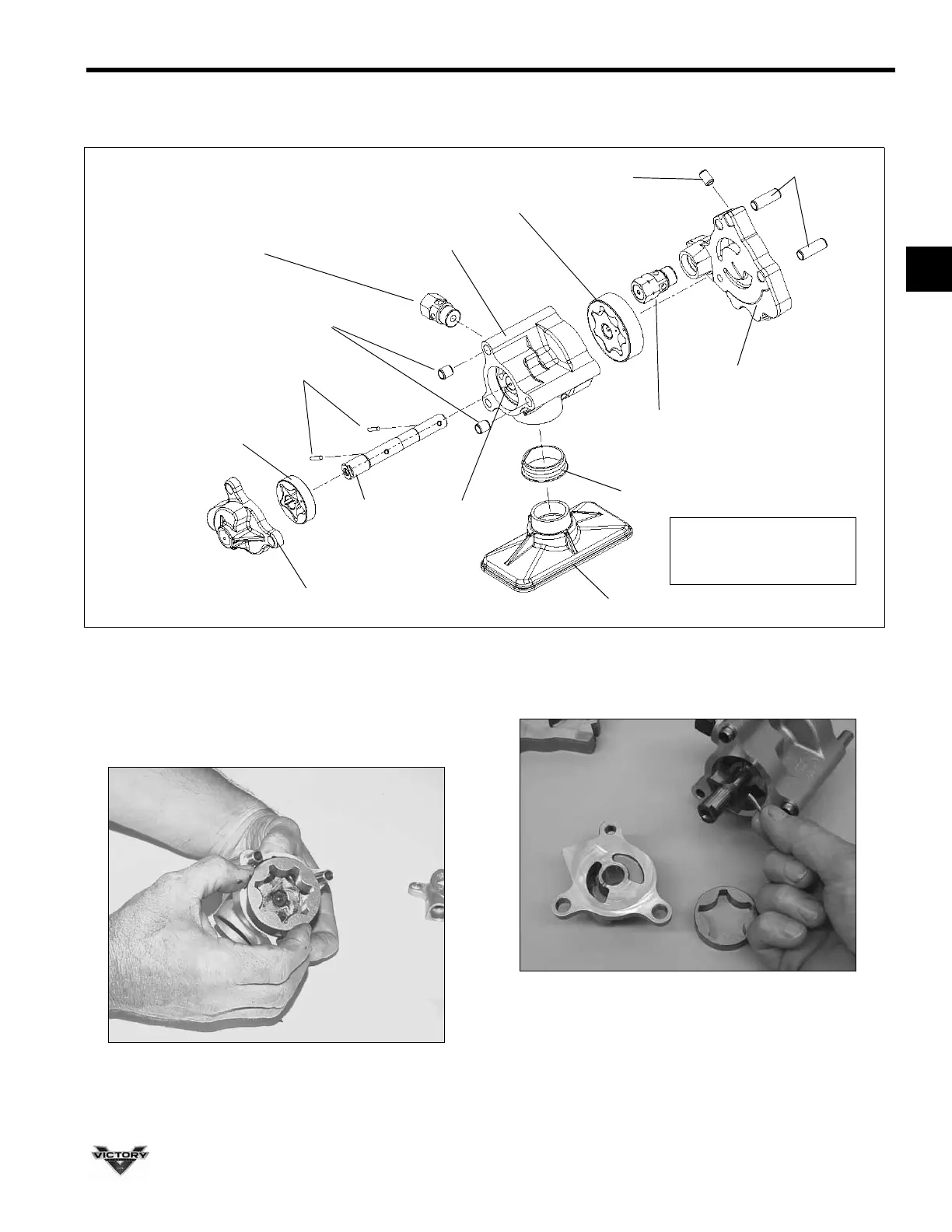

Oil Pump Disassembly
NOTE: Keep all parts together during disassembly. Note
orientation of dots on gerotors for assembly. Gerotors
must be assembled with the dots on the same side. They
do not need to be aligned with each other.
6. Remove cooling outer gerotor.
7. Push on opposite end of shaft to allow pin to be
removed from lubrication gerotor. Pull lubrication rotor
back to expose and remove pin.
8. Push shaft back toward cooling end of pump and
remove pin from cooling gerotor.
9. Pull shaft with inner rotor from pump body.
10. Clean all parts and inspect for wear.
11. Dry with compressed air.
Pressure Relief Valve Assembly - 85 PSI
(Lubrication Pump)
Shorter Hex
Torque: 20 ft-lbs (27 Nm)
Dowel 9X10mm
Pin
Lubrication Gerotor
Shaft / Body (Both Ends)
Apply Moly Lube
Lubrication Pump Cap
Inlet Screen
Seal
Pump Base
Dowel 9X26 mm
Cooling Gerotor
Pump Body
Oil Jet
Torque: 115 in-lbs (13 Nm)
Pressure Relief Valve Assembly - 105 PSI
(Cooling Pump)
Longer Hex
Torque: 20 ft-lbs (27 Nm)
APPLY VICTORY ENGINE
OIL TO ALL PARTS
DURING ASSEMBLY
