Ground Locations
Symptoms of a loose, corroded, or broken ground wire vary
depending on the wire and the location. Most often, a
problem with a main ground wire location will affect multiple
circuits. Inspect the grounds to be sure they are clean and
tight.

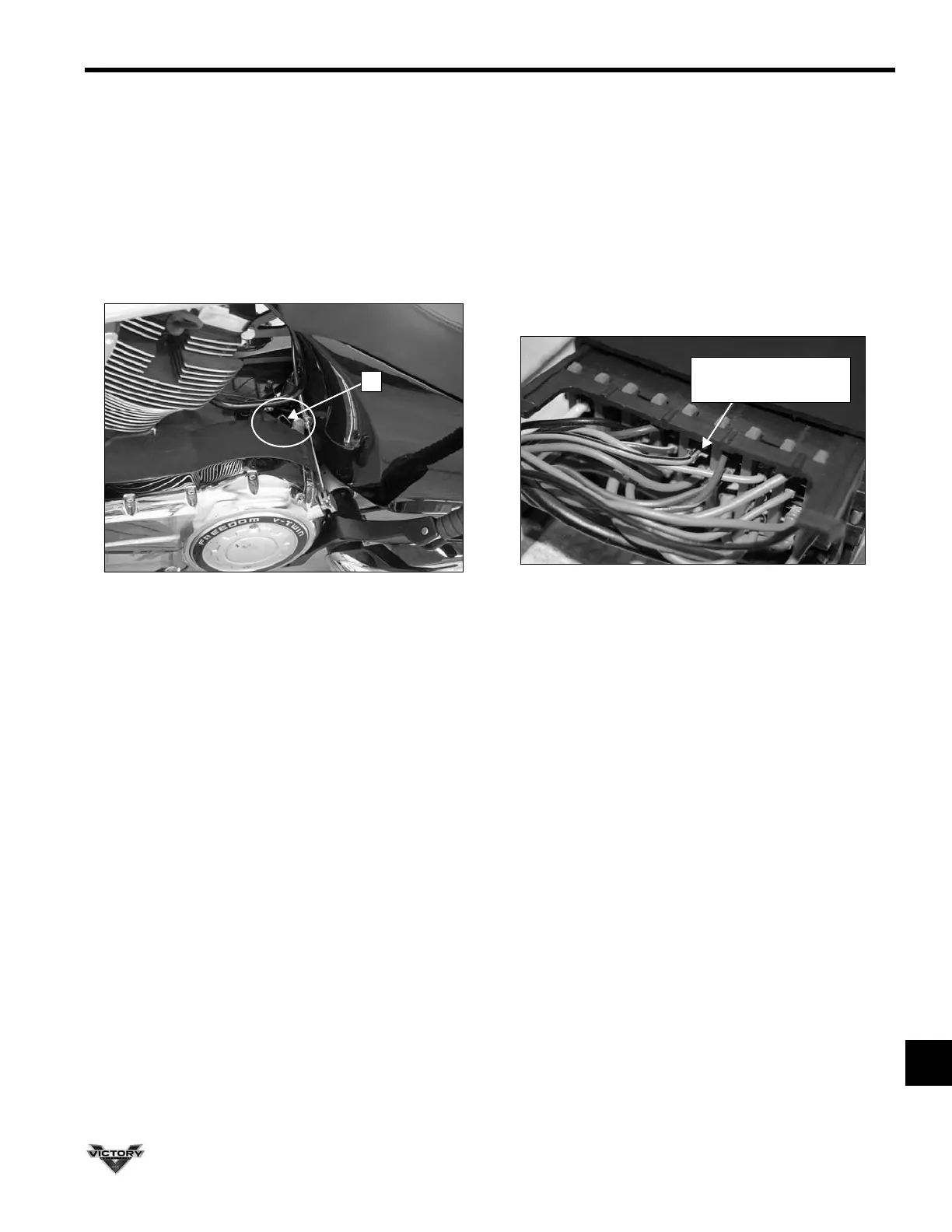

Engine ground (A).
Left rear corner of crankcase.
Chassis harness grounds are located under the right side
cover, behind the inner panel.
The ECM ground is located on the frame behind the ECM.
Connector Pin Inspection
Thorough inspection of an electrical connection should
include a visual inspection of pin and socket condition,
cleanliness, alignment AND SECURITY. The photo below
is an example of a wire at the fuse box that is pushed past
the lock tab (the lock is in place). Always pull lightly on
connector wires in a suspect circuit to be sure they are
secured in the connector, and do not move when the
mating halves are re-connected or when fuses, relays, or
breakers are re-installed in their respective sockets.
Connector Pin
Forced From Socket
