CRANKCASE

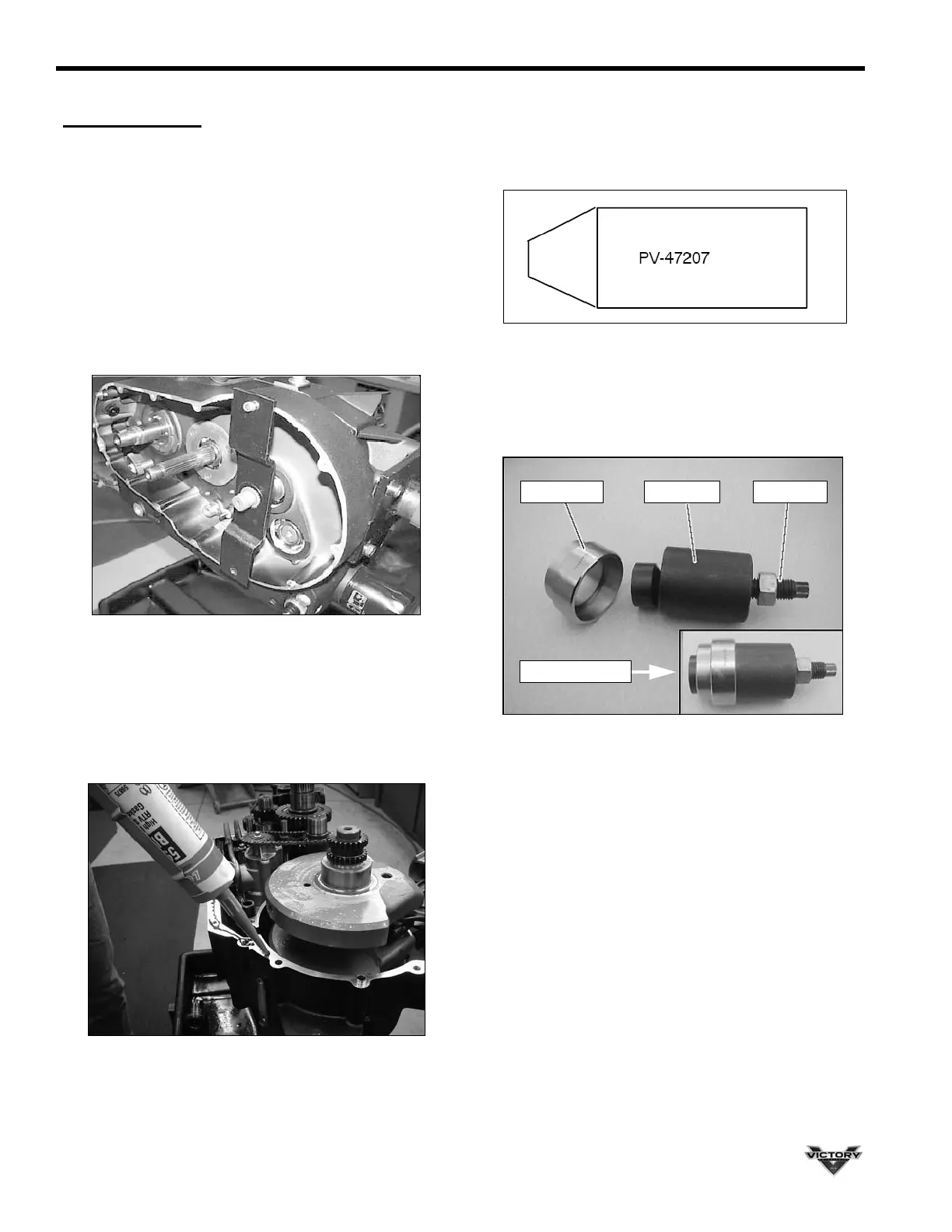

Crankcase Assembly & Sealing
NOTE: Place transmission in 1st gear prior to
crankcase assembly.
1. Clean crankcase mating surfaces to remove all
grease, oil, and old sealant.
2. Check to be sure all shafts are seated, and that all
(new) O-rings, alignment dowel pins, oil pipes, etc. are
in place.
3. Install the clutch shaft holding tool PV-45028.
4. Apply an even bead of Loctite
TM
Ultra Black 598 to
entire case sealing surface.
5. Spread out sealer into a thin even layer on entire case
mating surface. Be sure all areas are covered. DO
NOT ALLOW SEALANT TO DRY. CONTINUE
ASSEMBLY UNTIL CASES ARE SEALED AND ALL
BOLTS ARE TIGHT.
6. Install crankshaft bearing protector over the cam chain
drive sprocket
Special Tool: Crankcase Bearing Protector PV-47207
7. Assemble the Crankcase Installation Tool as shown.
PVX-47429 is required if seal sleeve is not installed on
output shaft.
PVX-47429 PV-45030 PV-46299
Tool Assembled
To Next Page
