IGNITION COIL

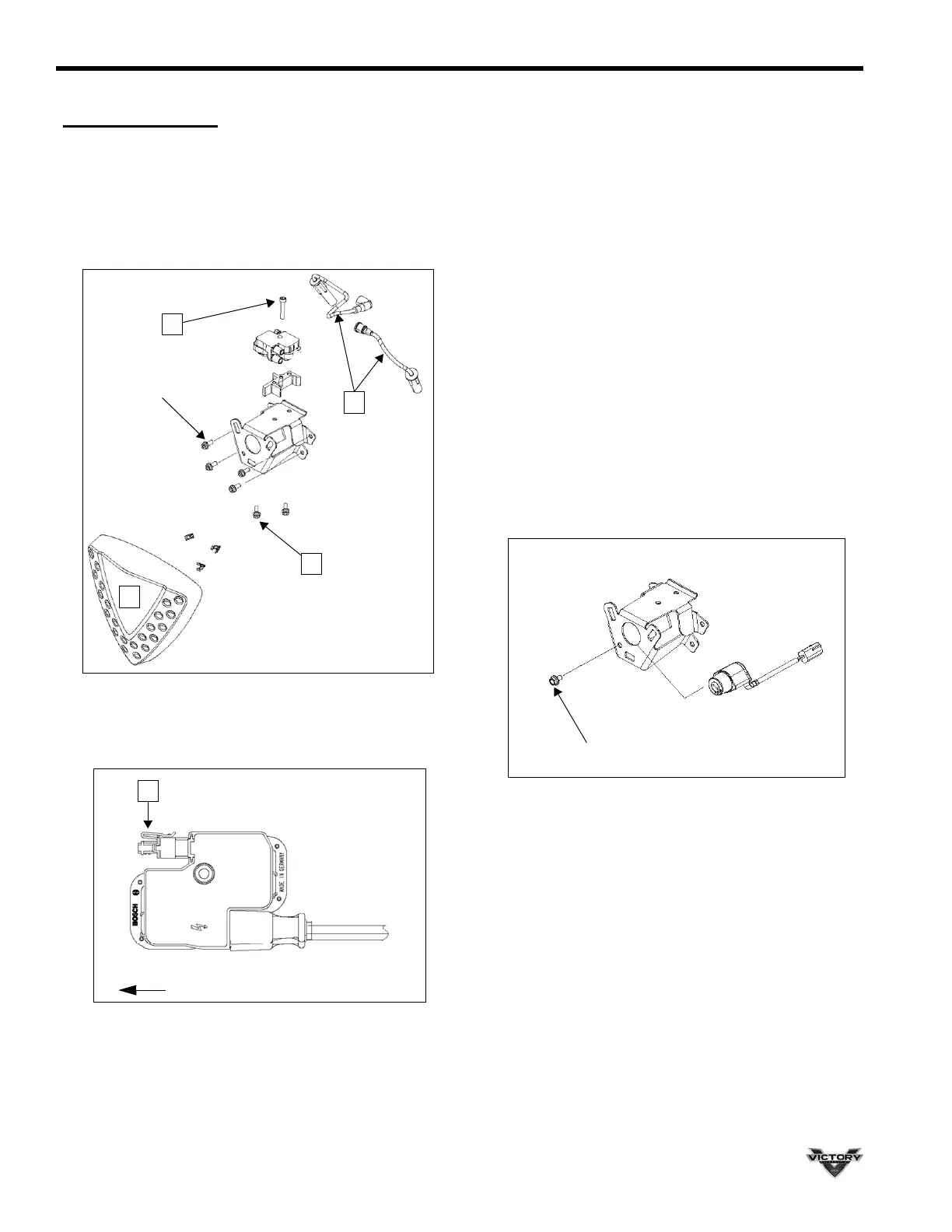

Ignition Coil Removal
1. Turn ignition switch OFF and remove key.
2. Pull ignition coil cover (A) straight outward to remove.
3. Remove both high tension leads (B) from coil.
4. Remove screw (C) and ignition coil. To remove coil
with bracket, remove 2 screws (D).
5. Press tab (E) to remove primary connector.
6. Remove ignition coil.
Ignition Coil Installation
1. Installation procedure is the reverse of removal
procedures.
2. Apply light film of dielectric grease inside the spark
plug boot of high tension leads.
3. Torque coil mount screw (or screws if coil was
removed with bracket attached) to 84 in-lbs (9 Nm).
Ignition Switch Removal
1. Turn ignition switch OFF and remove key.
2. Pull ignition coil cover straight outward to remove.
3. Remove mounting screw from face of switch bracket.
4. Open or cut any tie straps that secure the harness.
5. Separate ignition switch connector from main wire
harness by pushing the tab to release.
A
B
D
84 in-lbs (9 Nm)
84 in-lbs
C
(9 Nm)
TOP VIEW
FRONT
E
84 in-lbs (9 Nm)
