Victron energy Blue Smart IP65 Charger 12/4 User Manual

11
EN NL FR DE ES IT PT
4.2 Using VictronConnect
With the Blue Smart Charger range, selection of an integrated charge mode and other
general settings can also be made with a Bluetooth enabled device (such as a mobile phone
or tablet); using the VictronConnect app.
For further details about the VictonConnect app refer to the online user manual:
https://www.victronenergy.com/live/victronconnect:start
To setup the charger using VictronConnect:
i. Download and install the VictronConnect app.
The VictronConnect app can be downloaded from the following locations:
Android – Google Play Store
iOS/Mac – Apple App Store
ii. Enable Bluetooth on the mobile phone or tablet (if not already enabled).

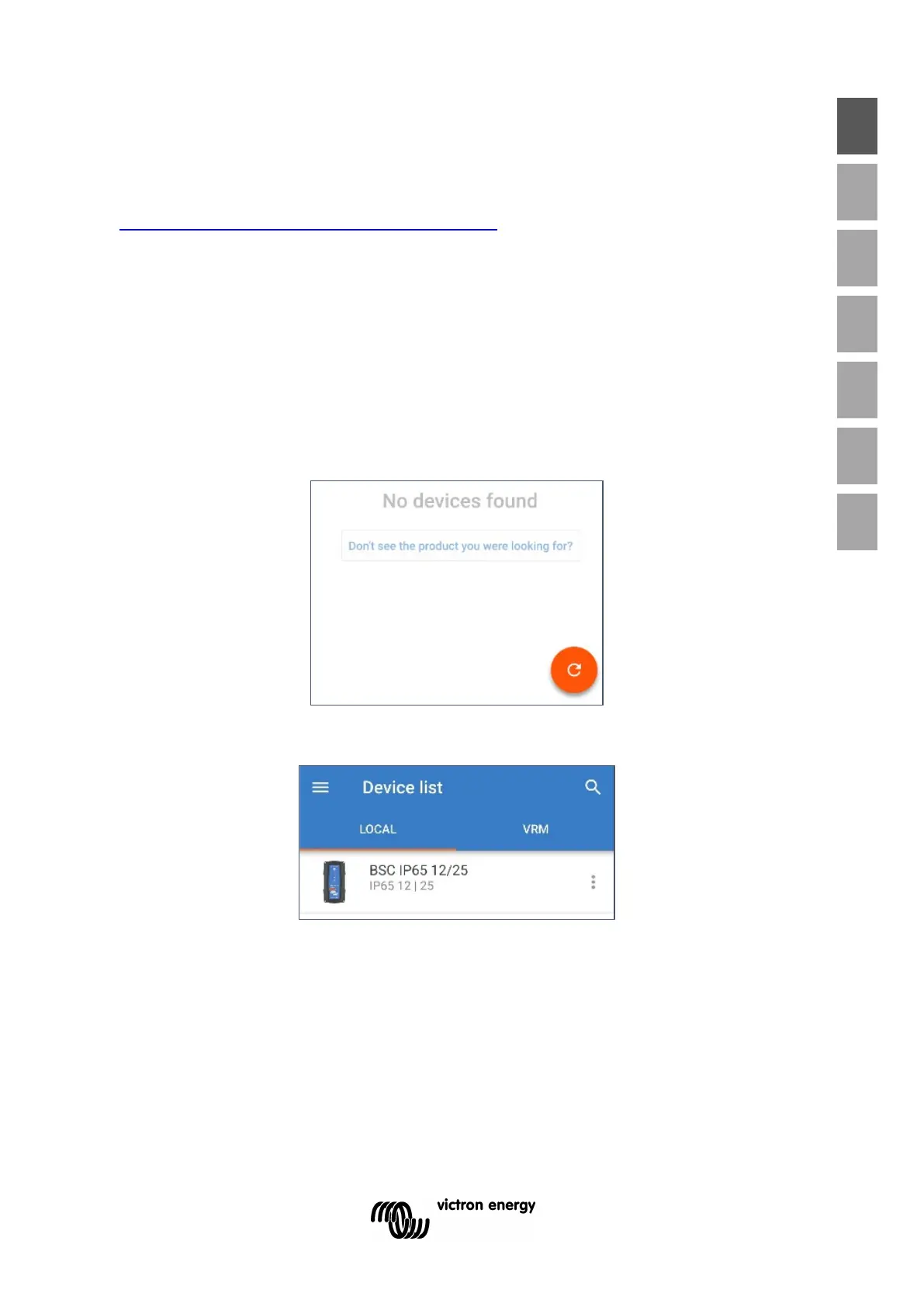

iii. Open the VictronConnect app and look for the Blue Smart Charger in the LOCAL page,
if it doesn’t automatically appear perform a scan for devices in range by selecting the
‘scan’ button (round orange button with circular arrow) in the bottom right corner.
iv. Select the Blue Smart Charger from the local device list.
v. During initial connection a ‘Bluetooth pairing request’ prompt will appear requesting the
Bluetooth PIN code; enter the default PIN code 000000.

Victron energy Blue Smart IP65 Charger 12/4 Specifications

General

Input Voltage	100-240 VAC
Output Current	4 A
Battery Capacity	up to 100 Ah
Efficiency	85%
Charging Stages	Bulk, Absorption, Float
Bluetooth	Yes
Output Voltage	12V
Battery Type	Lead-acid, Lithium
Protection	Over-temperature, reverse polarity, short circuit
