Parallel operation (appendix C)
Step 1: Setting ds2 and ds1 for parallel operation
The current settings (AC current limitation and charging current) are multiplied by the
number of devices. However, the AC current limitation setting when using a remote
panel will always correspond to the value indicated on the panel and is not multiplied
by the number of devices.
Example: 9kVA parallel system
- If an AC input current limit of 20A is set on the master and the system consists of three devices,
then the effective system current limit will be equal to 3 x 20 = 60A.
- If a 30A panel is connected to the master, the system current limit is adjustable to a maximum of
30A, regardless of the number of devices.
- If the charging current on the master is set to 100% (70A for a MultiPlus 24/3000/70) and the
system consists of three devices, then the effective system charging current is equal to 3 x 70 =
210A.

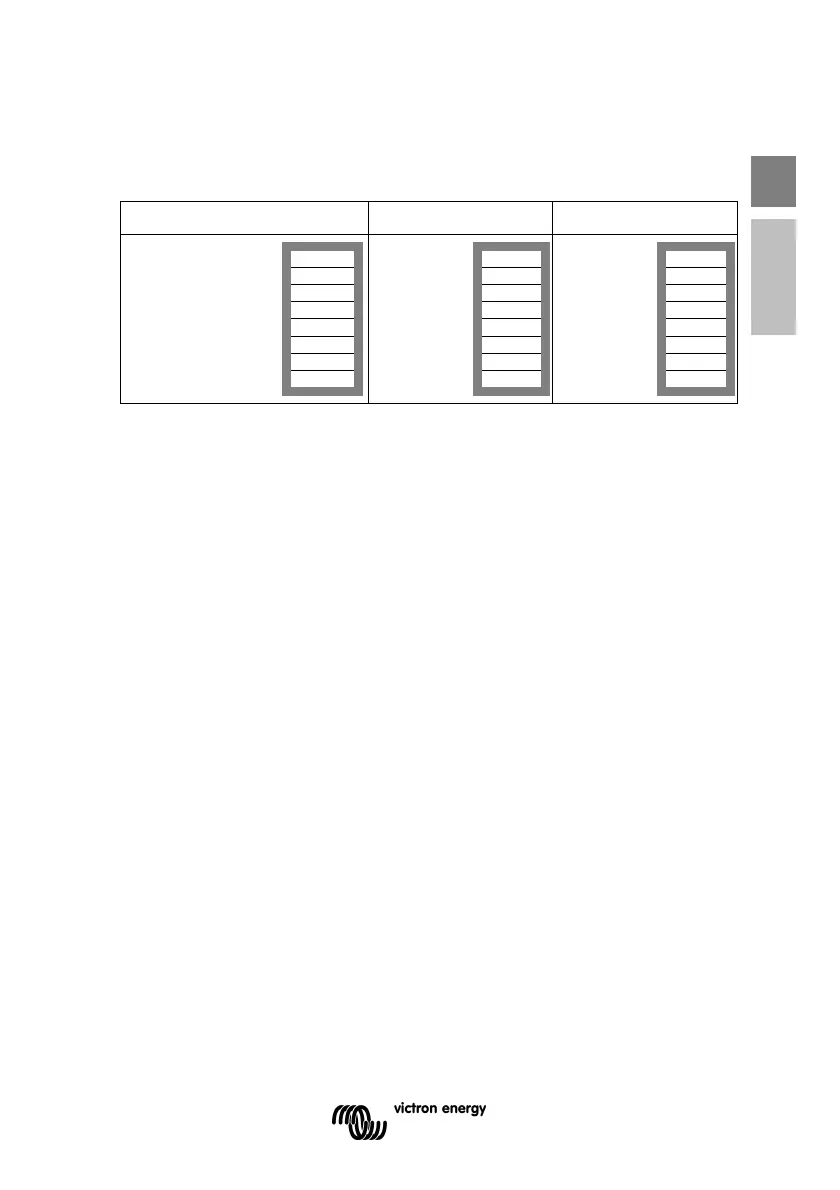

The settings according to this example (9kVA parallel system with 30A Multi Control Panel) are as
follows:
Master
Slave 1
Slave 2 (optional)
DS-8 AC input Set
DS-7 AC input Set
DS-6 AC input Set
DS-5 AES na
DS-4 Ch. current Set
DS-3 Ch. current Set
DS-2 Master off
DS-1 Master on
DS-8 na
DS-7 na
DS-6 na
DS-5 na
DS-4 na
DS-3 na
DS-2 Slave 1 off
DS-1 Slave 1 off
DS-8 na
DS-7 na
DS-6 na
DS-5 na
DS-4 na
DS-3 na
DS-2 Slave 2 off
DS-1 Slave 2 on
