Victron energy MultiPlus-II 12|3000|120-50 - Appendix D: Three phase connection

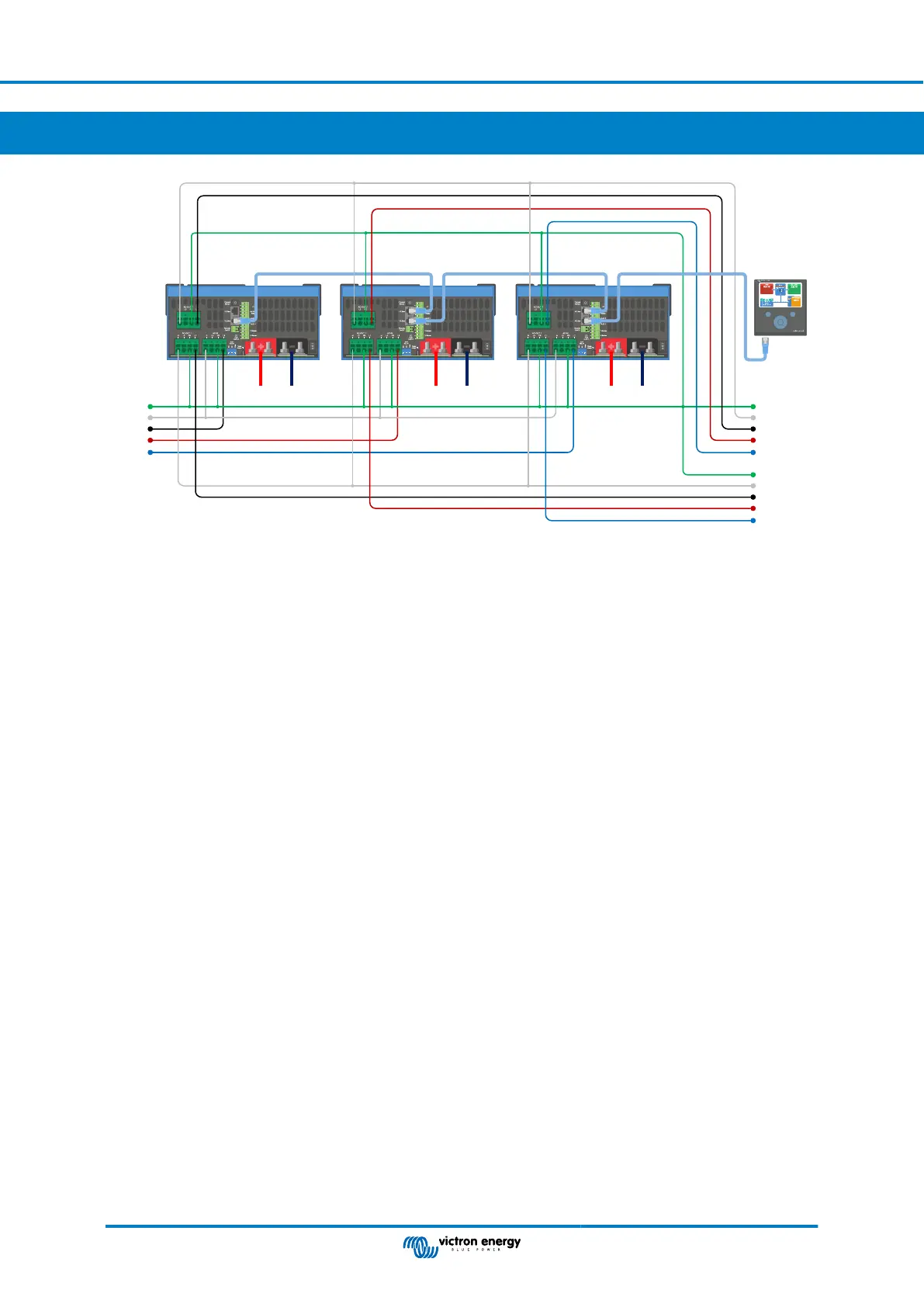

Appendix D. APPENDIX D: Three phase connection
Unit1: Master L1 Unit2: Master L2 Unit3: Master L3
+ BAT - + BAT - + BAT -
PE
AC OUT2 N
AC OUT2 L1
AC OUT2 L2
AC OUT2 L3
PE
AC OUT1 N
AC OUT1 L1
AC OUT1 L2
AC OUT1 L3
PE
AC IN N
AC IN L1
AC IN L2
AC IN L3
GX device
MultiPlus-II 12|3000|120-50 2x120V
Page 30 APPENDIX D: Three phase connection
