VK4K/6256 Series “6 wire Bus” videokit
VK4K/6256 Series - Installation handbook
System components and available versions
VK4KX/6256 Colour videokit with embended proximity key reader.
50
43,8
135,0
160,0
45,0 22,7
15,7
143,0
120,0
45,0
INDOOR
STATION
Videophone
Art.6256
pag. 20
ACCESSORIES
Power supply
Art.850K
pag. 5
Card format fob
Art.955/C
Tag format fob
Art.955/T
OUTDOOR
STATION
Flush
Mounting
Surface
Mounting
Camera unit
Art.4833X
pag. 8
Video distributor
Art.316N
pag. 23

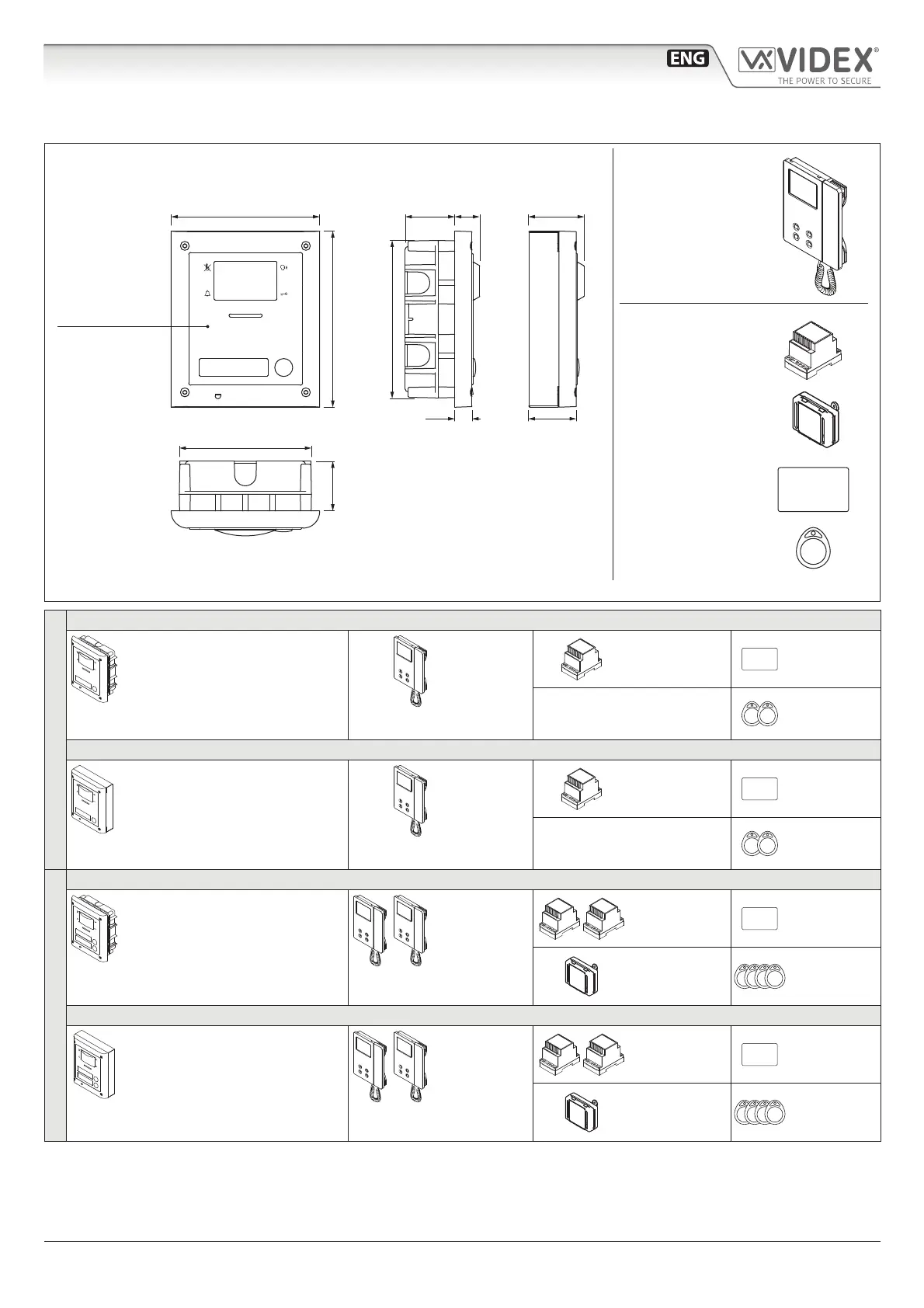

Fig. 2 - VK4KX/6256 components (measures in mm)
ONE WAY VERSIONS
VK4KX-1/6256 - ush mounting
1 Outdoor station composed of:
1 Art.4833X-1: 1 button camera
unit
1 Art.4851: Flush mounting
box
1 Colour
videophone
Art.6256
1 Power
supply
Art.850K
1 Card
format fob
Art.955/C
2 Tag for-
mat fobs
Art.955/T
VK4KX-1S/6256 - surface mounting
1 Outdoor station composed of:
1 Art.4833X-1: 1 button camera
unit
1 Art.4881: Surface mounting
box
1 Colour
videophone
Art.6256
1 Power
supply
Art.850K
1 Card
format fob
Art.955/C
2 Tag for-
mat fobs
Art.955/T
TWO WAY VERSIONS
VK4KX-2/6256 - ush mounting
1 Outdoor station composed of:
1 Art.4833X-2: 2 button camera
unit
1 Art.4851: Flush mounting
box
2 Colour
videophones
Art.6256
2 Power
supplies
Art.850K
1 Card
format fob
Art.955/C
1 Video
distributor
Art.316N
4 Tag
format fobs
Art.955/T
VK4KX-2S/6256 - surface mounting
1 Outdoor station composed of:
1 Art.4833X-2: 2 button camera
unit
1 Art.4881: Surface mounting
box
2 Colour
videophones
Art.6256
2 Power
supplies
Art.850K
1 Card
format fob
Art.955/C
1 Video
distributor
Art.316N
4 Tag
format fobs
Art.955/T
