Vitotronic 100, KW10B Installation, Start-up and Service
Additional Information
Replacement Components (for qualified service personnel only)
Fuse
F1: T 6.3 A / 250 V, slow blow for control operation

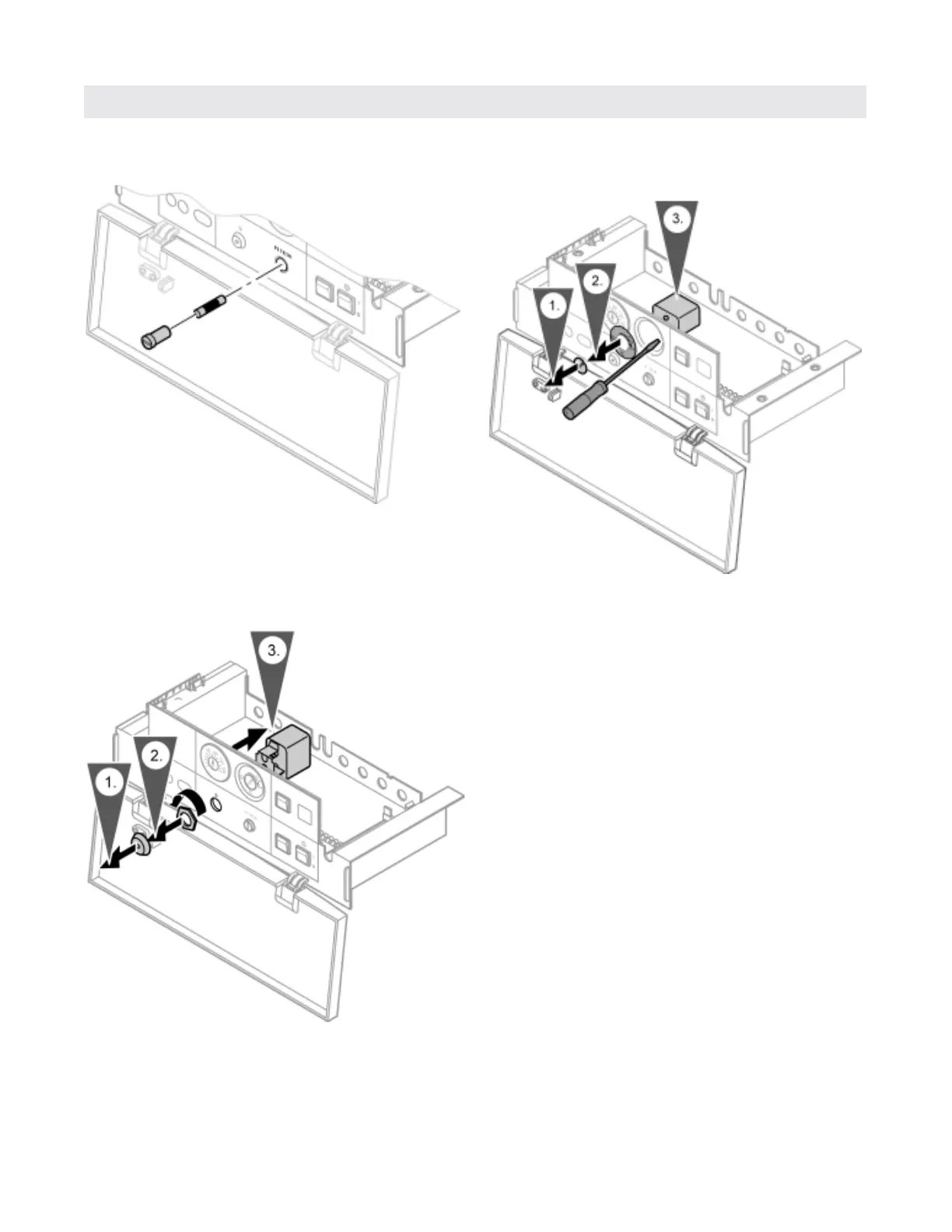

Fixed high limit
1. Remove cap using a flat-head screwdriver.
2. Unscrew nut from high limit shaft.
3. Pull out high limit and remove.
1. Remove the front cap using a flat-head screwdriver.
2. Remove the dial.
3. Remove the two screws holding the adjustable high
limit and remove.
Adjustable high limit
