33
5712 717 v1.0
Vitotronic 100, KW10B Installation, Start-up and Service
Additional Information

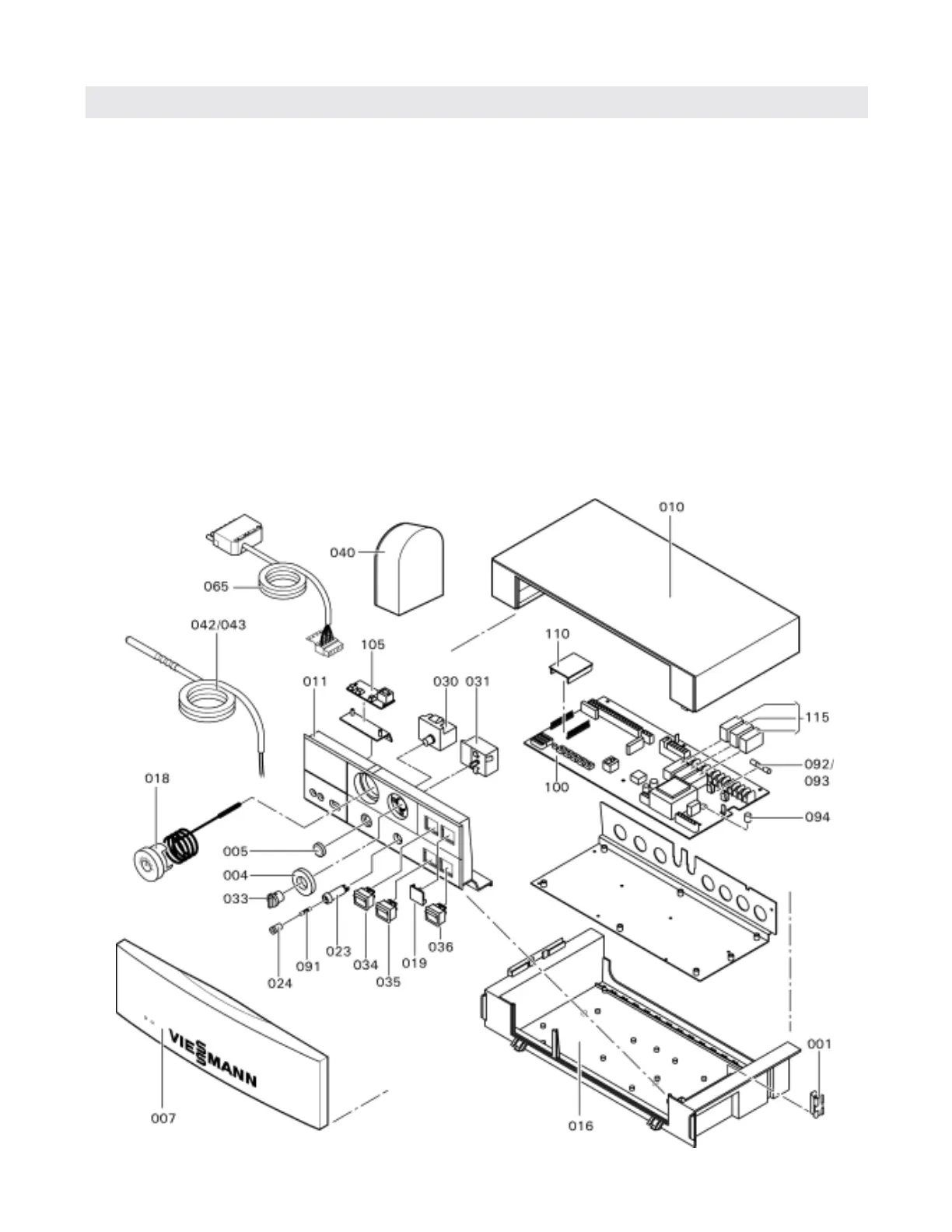

Parts List
Ordering Replacement Parts
Please provide control Model No., Serial Number from rating plate, as well as the position number of the part
(see Parts List) when ordering replacement parts. Order replacement components from your Viessmann distributor.
110 LON communication module
115 Relay 24 VAC DPDT
Wear Parts
091 Fuse 6.3A / 250V (package of 10)
092 Fuse 6.25A / US style (package of 5)
094 Fuse 0.1A / 250V (package of 5)
Other Parts (not illustrated)
120 Interconnector 1/4
200 Installation Instructions
201 Operating Instructions
202 Parts list
*
1 Shipped with burner or boiler.
031 Adjustable high limit,
1=1750 mm
033 AHL knob
034 Override switch
035 Space heating circuit switch
036 On/Off switch
040 Sensor for outdoor, 5K
042 Sensor #3 for boiler, 10K
043 Sensor #5 for DHW, 10K
065 Control cable w/ # 41 plug *
1
093 Fuse cover
100
Motherboard
105 Circuit board, LED
Parts
001 Cable clip
004 Adjustable high limit dial
005 Fixed high limit cover
007 Flip-down cover
010 Control housing cover, top
011 Control housing, front
016 Control housing, bottom
018 Thermometer,
o
C/
o
F
019 Switch knockout
023 Fuse holder
024 Fuse holder cover
030 Fixed high limit,
190 x 1760 mm
Model: KW10B
