Viessmann GC1 Installation, Start-Up And Service Instructions

8
5712 717 v1.0
Vitotronic 100, KW10B Installation, Start-up and Service
Heating System

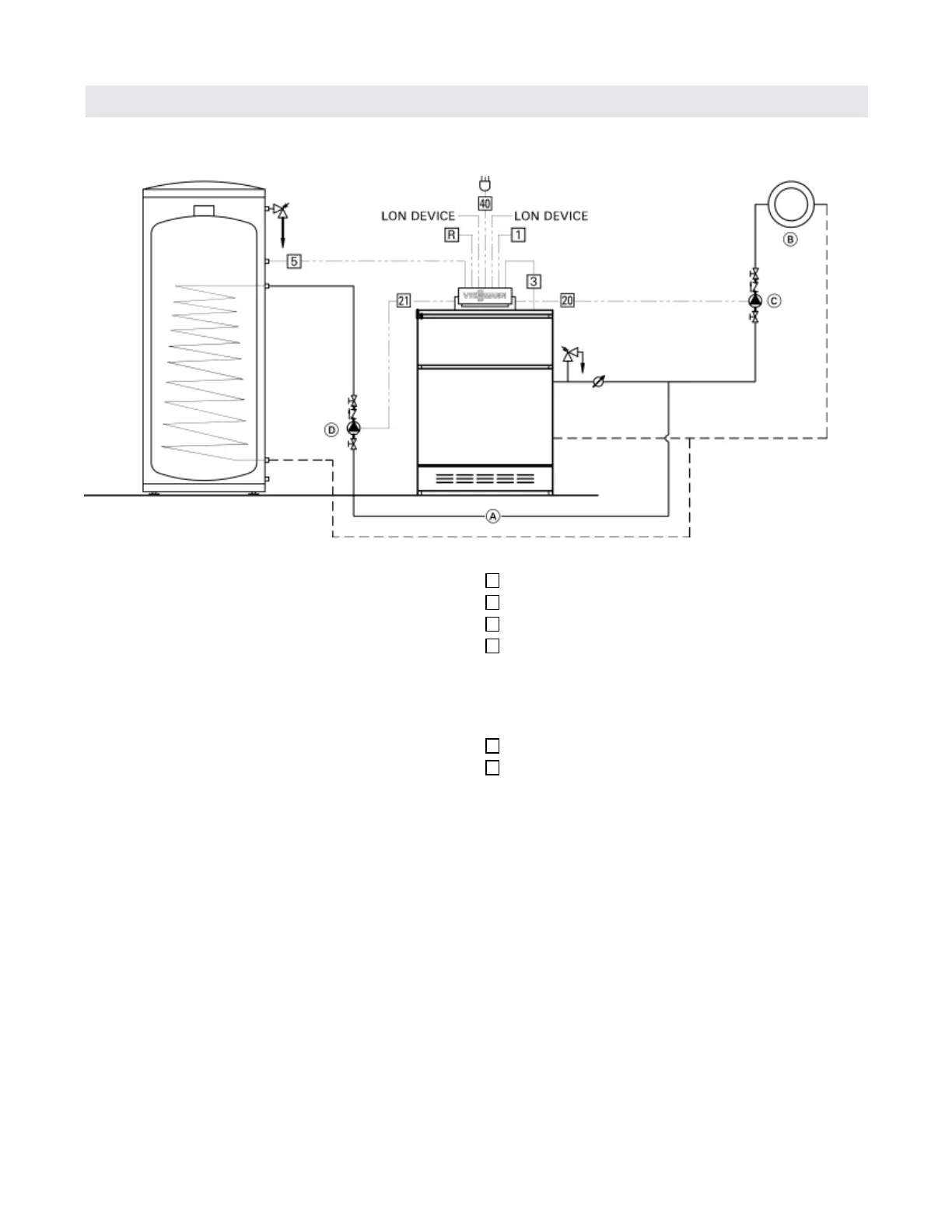

Typical System Layout
One direct-connected heating circuit without mixing valve
A Boiler with Vitotronic 100, Model KW10B
B Heating circuit
C System pump
D DHW pump
R Room thermostat
1
Outdoor temperature sensor
3
Boiler temperature sensor
5
DHW temperature sensor
20
Pump connection (used with: - Vitola 200,
- Vitorond 100,
- Vitogas 050,
(RS series,boilers only)
- Vitogas 100
21
DHW pump output
40
Power supply cord 120 VAC, 60Hz
