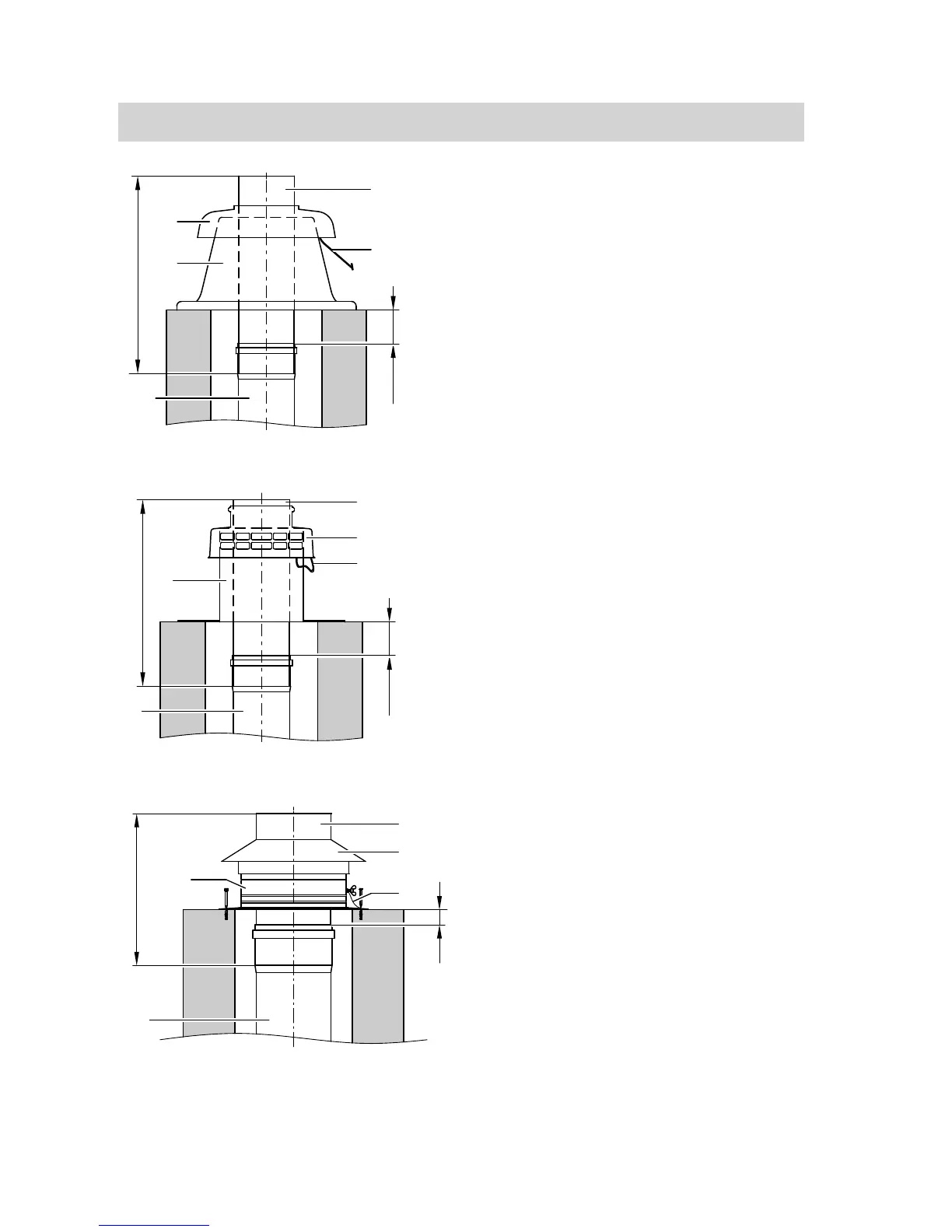

System size 60 to 100 mm
09.
Have highest pipe section E end-
ing approx. 50 mm below the top
edge of the shaft.
10. Secure the lower part of shaft
cover
F
.
50
+0 -20
≈ 360
G
H
K
F
E
System size 125 to 200 mm
11. System size 60 to 100 mm:
Push on terminal pipe
G
.
Note
For weight reasons, never trim ter-
minal pipe
G
.
System size 125 to 200 mm:
Trim final pipe section
G
(without
female connection). The pipe
should be as flush as possible with
fitted flue collar
H
.
50
+0 -20
500
E
K
G
F
H
System size 250 mm
12.
Push on flue collar H and fasten
safety rope
K
to the lower part.
Routing through a shaft
(cont.)
