Viessmann Vitodens 100-E - Page 28

28

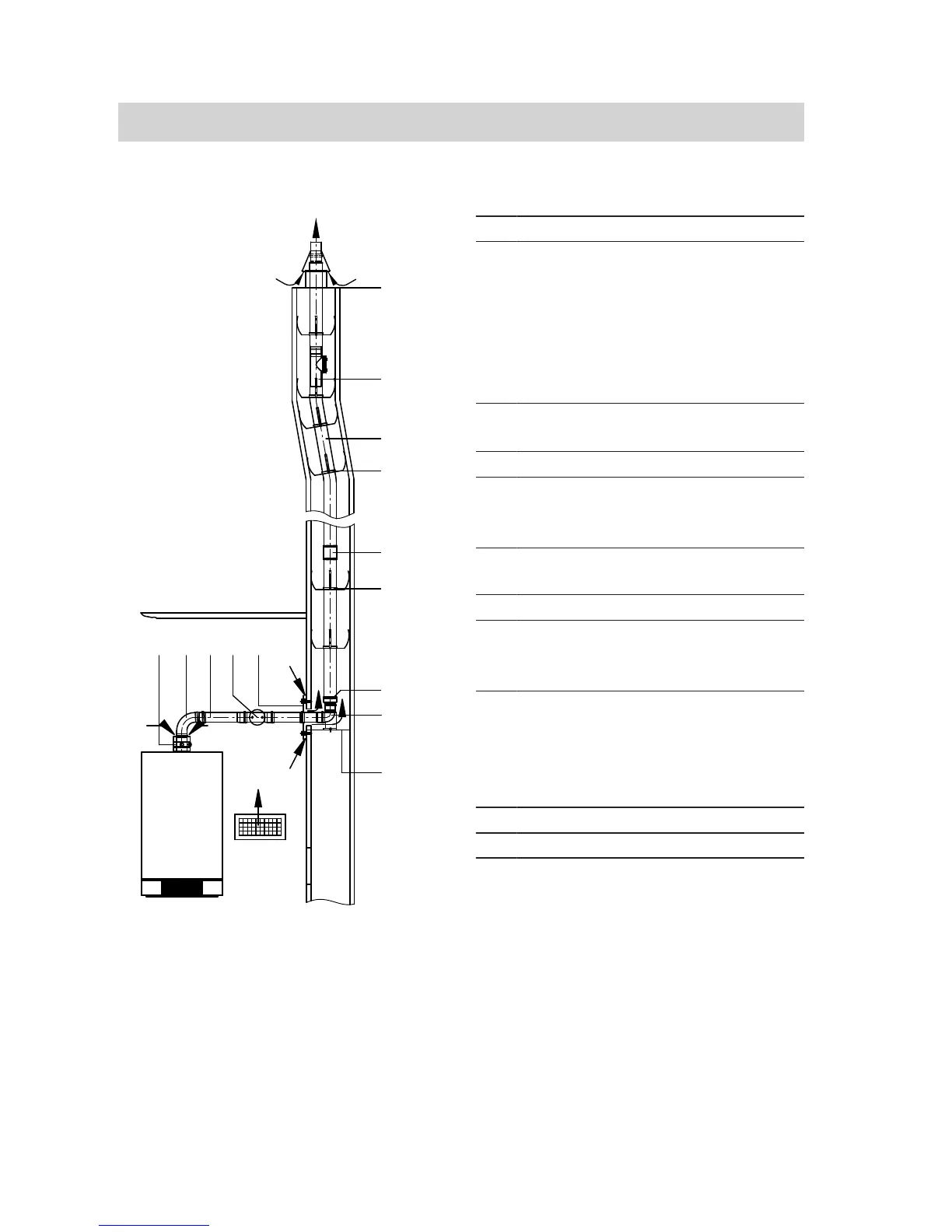

Open flue operation
2
2
1 976
A
D
E
C
2
2
5
2
4
2
3
B
A
8
A
Secondary ventilation
B
Flue gas
C
Inspection port
D
Supply air vent
E
Supply air
1
Boiler flue connection
2
Standard shaft pack (flexible)
Comprising:
■ Support bend
■ Connection pieces
■ Support rail
■ Shaft cover
■ Spacers (5 pce)
3
Inspection piece, straight
(for installation in the flexible flue)
4
Flexible flue
5
Connection piece
for connecting residual lengths of
the flexible flue
Pipe lowering attachment
with 20 m rope
6
Inspection piece, straight
7
Flue pipe
1 m long
0.5 m long
8
Flue bend
87° or 2 x 45°
or
Inspection tee
87°
9
Ventilation bezel
Adaptor 7 60 mm to 7 80 mm
Routing through a shaft
(cont.)
5780 223 GB
