1.
Trim flexible flue pipe A cleanly at
a right angle.
2. Click spacer tooth of mounting
ring
B
into the 3rd groove of flexi-
ble flue
A
.
3.
Insert gasket C into the 1st groove
of flexible flue
A
.
4. Push inspection piece, connection
piece or connector
D
onto mount-
ing ring
B
until it clicks into posi-
tion.

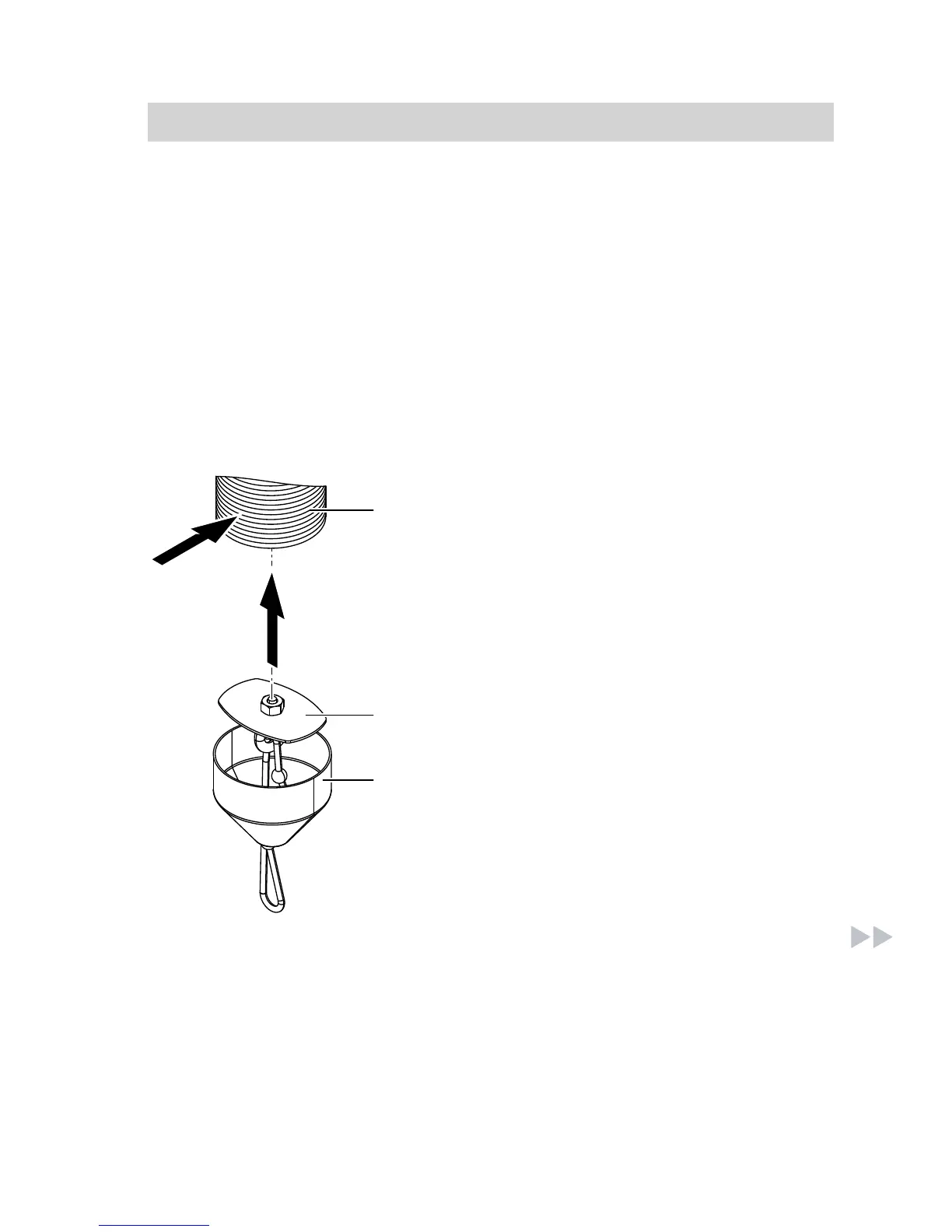

Fitting the pipe lowering attachment and drawing the flexible flue into the
shaft
01. Compress the end of flexible
flue
A
into a slightly oval shape.
Insert plate
B
of the pipe lowering
attachment into the 3rd groove of
the flue pipe.
02.
Push leading cone C onto flexible
flue
A
. The end of the flue pipe
must be completely covered.
03. Secure the rope to the loop of the
pipe lowering attachment.
Routing through a shaft
(cont.)
