04.

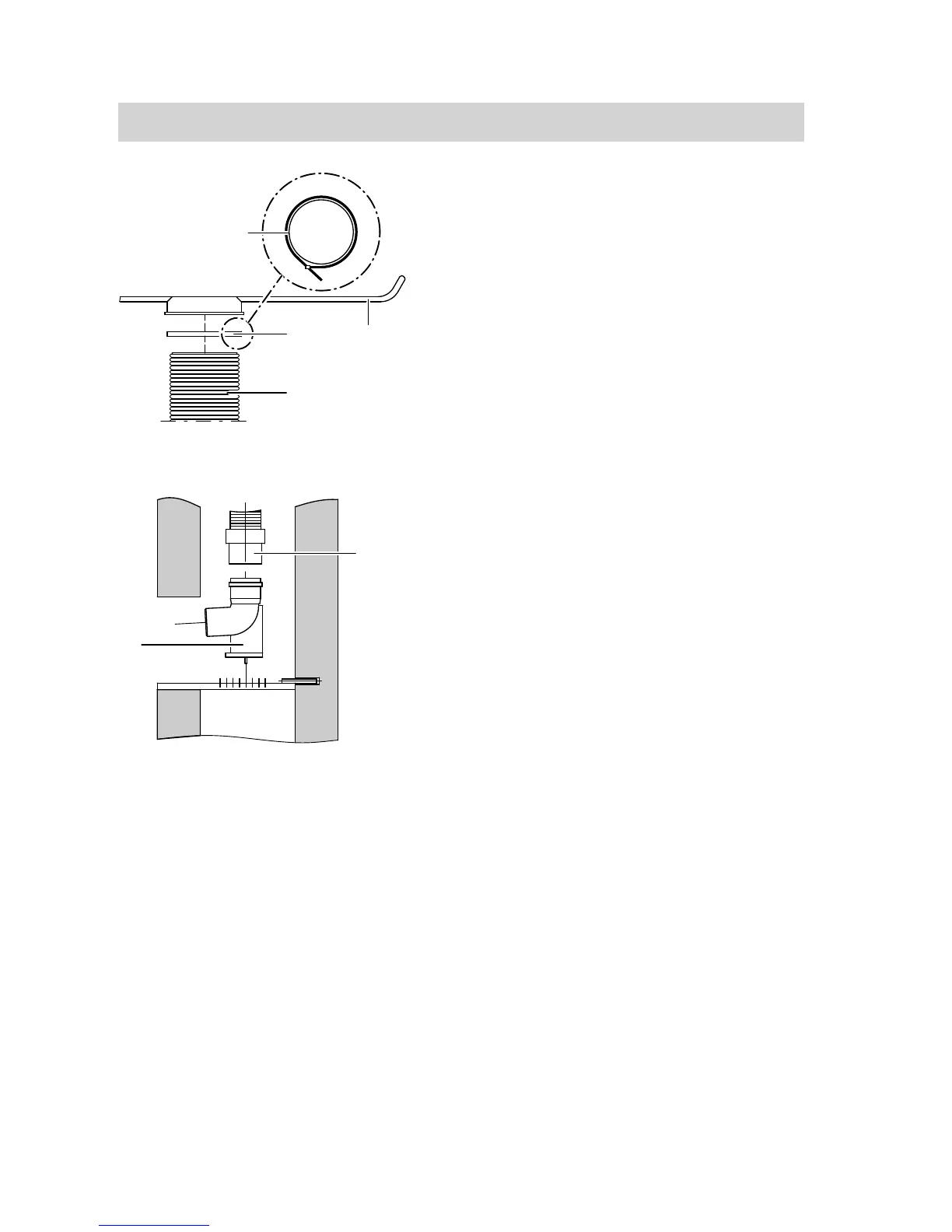

Push spacer D onto flue A (bent
ends in flue gas flow direction).
05.
Position cable ties E provided
around the ring of spacers
D
and
tighten.
06.
Pull flexible flue A from the top
downwards into the shaft. Never
pull the flue over sharp edges.
07. Remove the pipe lowering attach-
ment from the flue.
08.
Fit connector F to flue A (see
page 30).
09.
Position support bend G and use
the pin to secure it in a hole in the
support rail.
10.
Coat connector F with lubricating
paste and push into support bend
G
.
Routing through a shaft
(cont.)
