1.

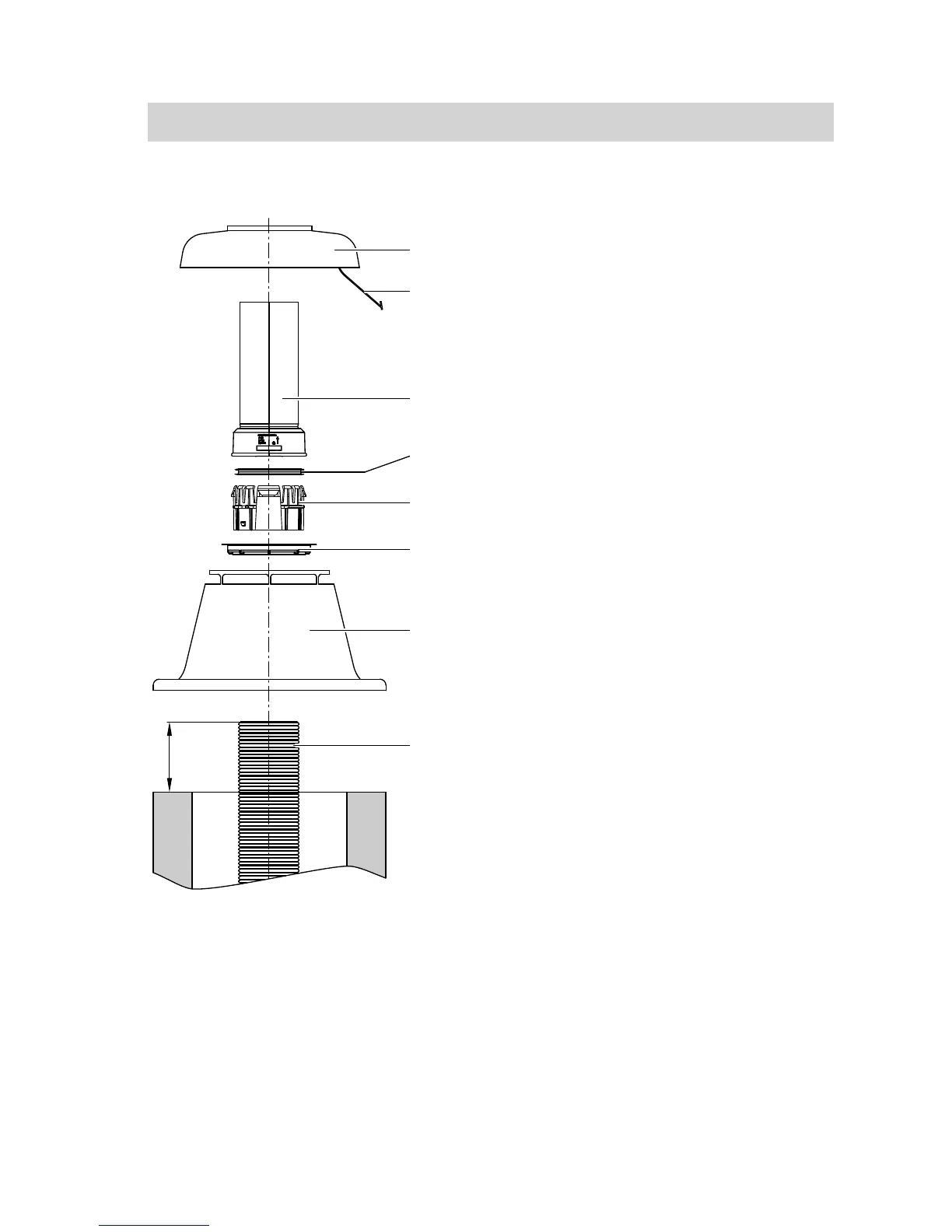

Route flexible flue A through shaft
cover
B
.
2.
Trim flexible flue A 200 mm above
the top edge of the shaft.
3.
Position base of shaft cover B on
the shaft and secure.
4.
Only for 7 60 and 80 mm:
Position reducer ring
C
on the
base of shaft cover
B
.
5. Click spacer tooth of mounting
ring
D
into the 3rd groove of flexi-
ble flue
A
. See page 30.
6.
Insert gasket E into the 1st groove
of flexible flue
A
.
7.
Push terminal pipe F onto mount-
ing ring
D
until it clicks into posi-
tion.
8.
Hook safety rope G into the drilled
hole in shaft cover
B
.
9.
Push cowl H over terminal pipe
F
and click into place on shaft
cover
B
.
Routing through a shaft
(cont.)
