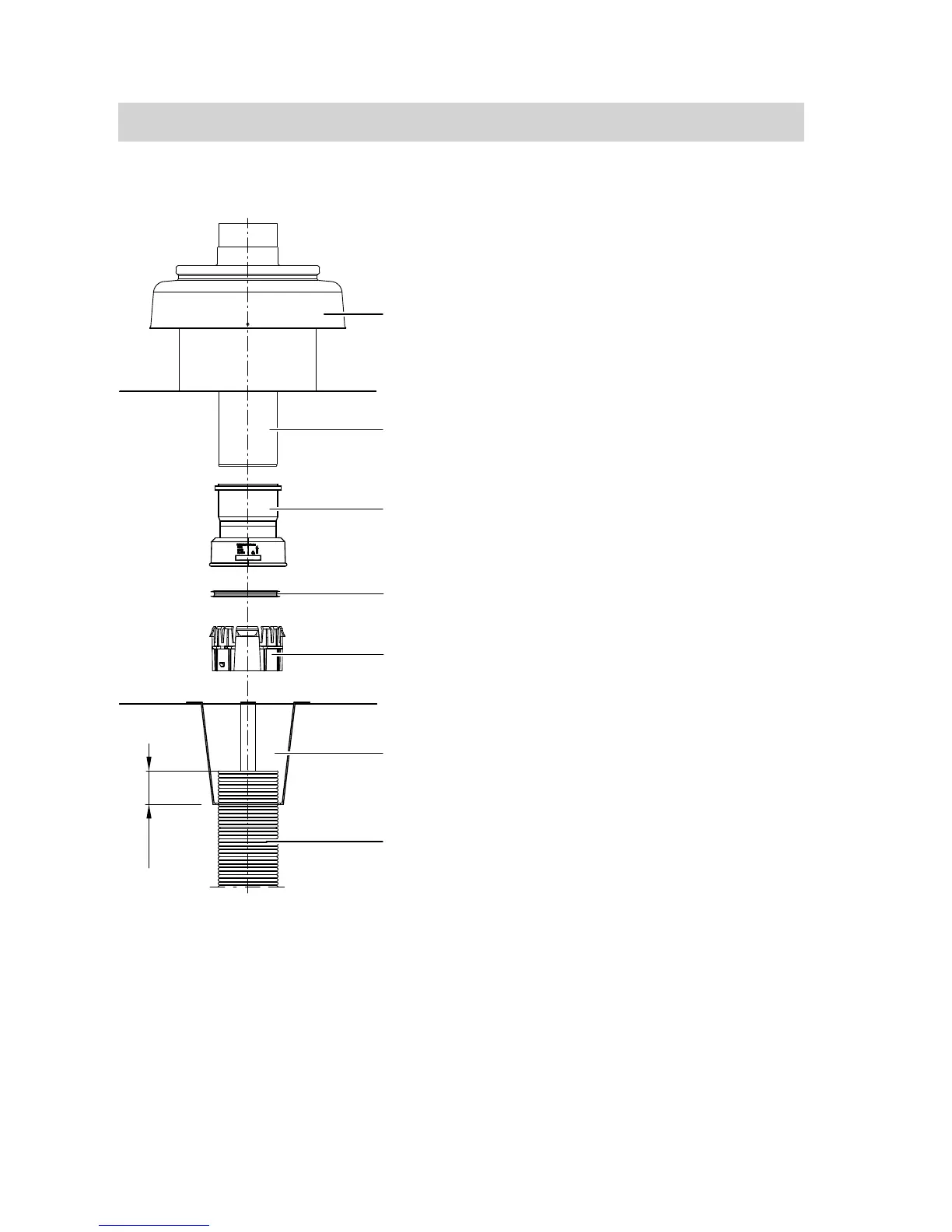

1.
Route flexible flue A through
retainer
B
.
2.
Position retainer B on the shaft.
3.
Trim flue A approx. 50 mm above
the retaining plate of retainer
B
.
4.
Pull flexible flue A up far enough
to allow mounting ring
C
to be fit-
ted.
Click mounting ring
C
into the 3rd
groove of flexible flue
A
. See
page 30.
5.
Insert gasket D into the 1st groove
of flexible flue
A
.
6.
Push adaptor E onto mounting
ring
C
until it clicks into position.
7.
Push terminal pipe F into adaptor
E
.
8.
Push cowl G onto terminal pipe
F
and secure.
Routing through a shaft
(cont.)
5780 223 GB
