Viessmann Vitogate 300 - Back Panels and Sensor Installation

29

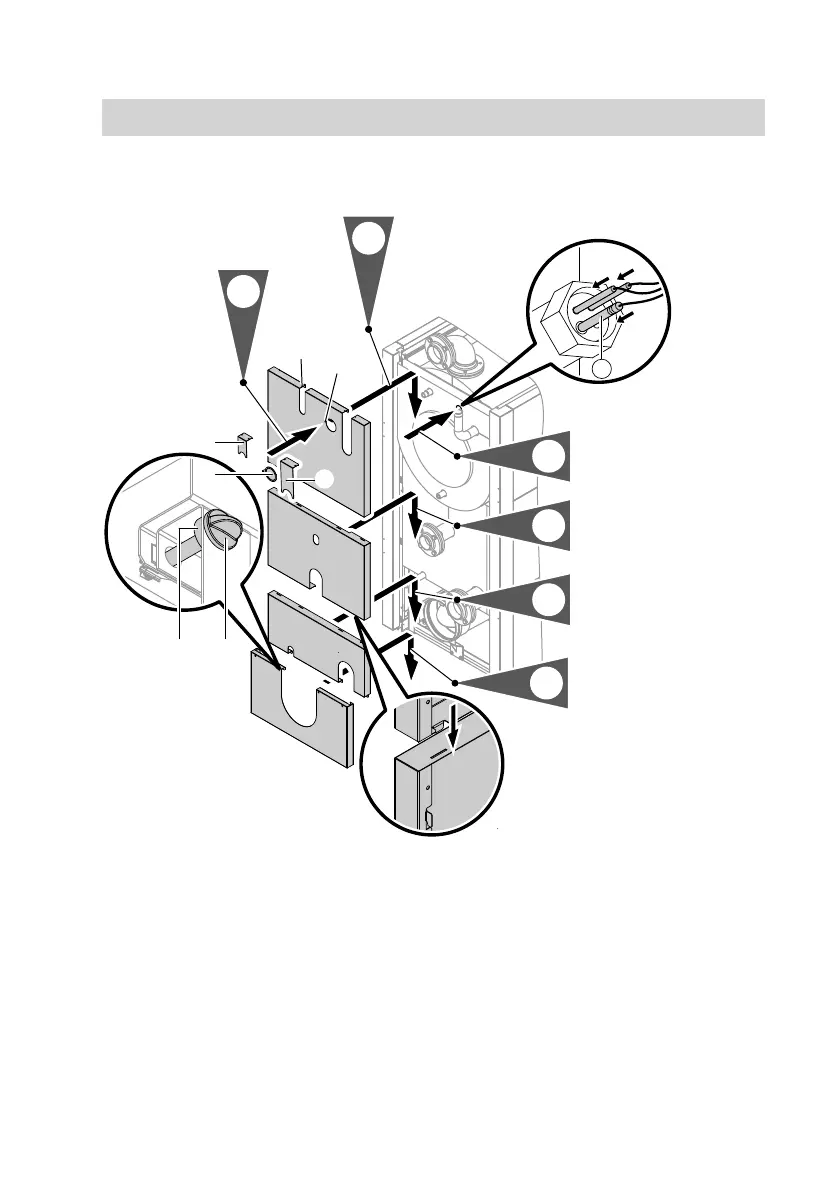

Back panels, covers, cap and boiler water temperature sensor
4.8x19
5.
4.
D
D
2.
3.
6.
1.
C
AB
4x
4.8
4x
E
A
Quarter turn closure
B
Damping washer
C
Cap
D
Cover panel
E
Boiler water temperature sensor
§
(supplied with the control unit)
Note
Insert the sensor and boiler water tem-
perature sensor into the sensor well as
far as possible.
!
Please note
Damaged capillaries will result in
faulty sensor function.
Never kink the capillary tubes.
Fitting the thermal insulation
(cont.)
5614 451 GB
