Viessmann Vitogate 300 - Corner Rails

23
Corner rails
2.
8x
B
B
4.8
4.8
A
1.
A
Clip (2 pce per rail; supplied with the
fixings)

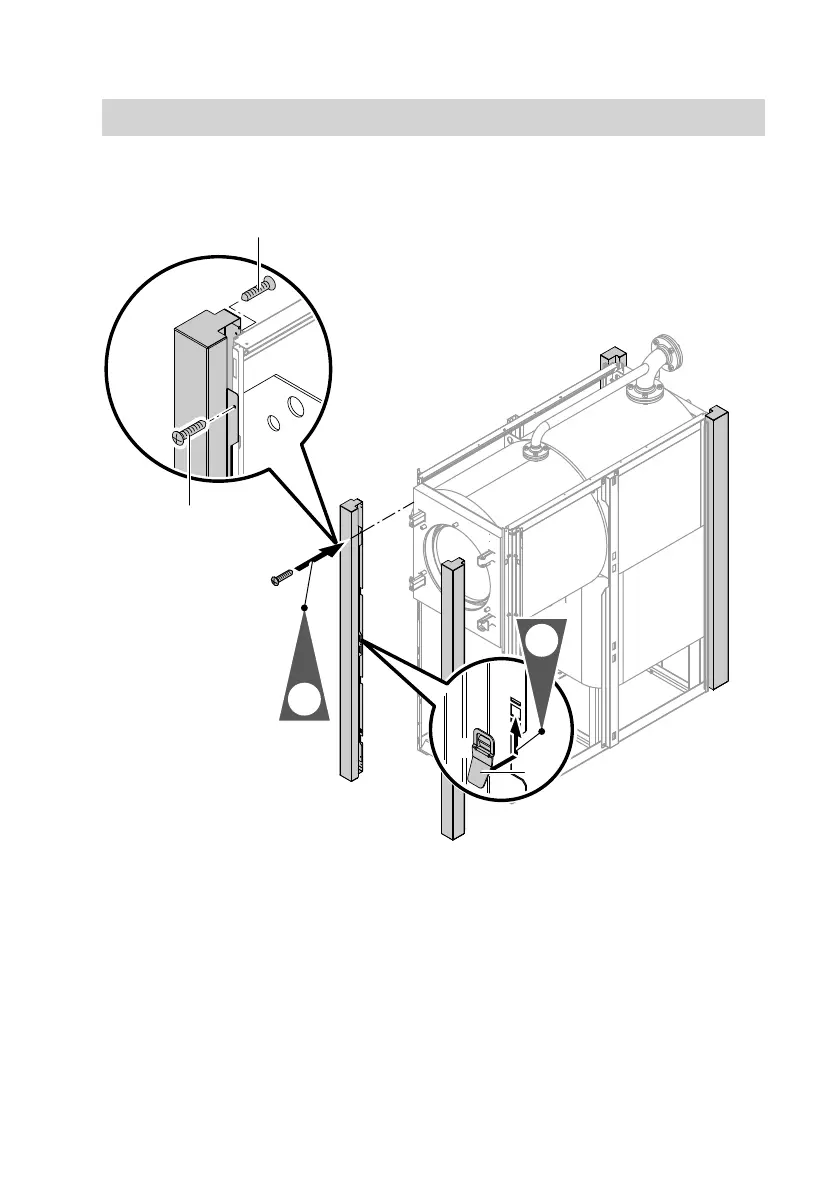

Information on step 1
Corner rails can be fitted on the r.h. or
the l.h. side; for this, observe the clip
direction.
Front corner rails feature a decorative
stripe.
Information on step 2
Hook the corner rails onto the fixing rails
and secure with screws from the inside
and outside.
For a parallel seating, up to three screws
B
may be used per side.
Fitting the thermal insulation
(cont.)
5614 451 GB
