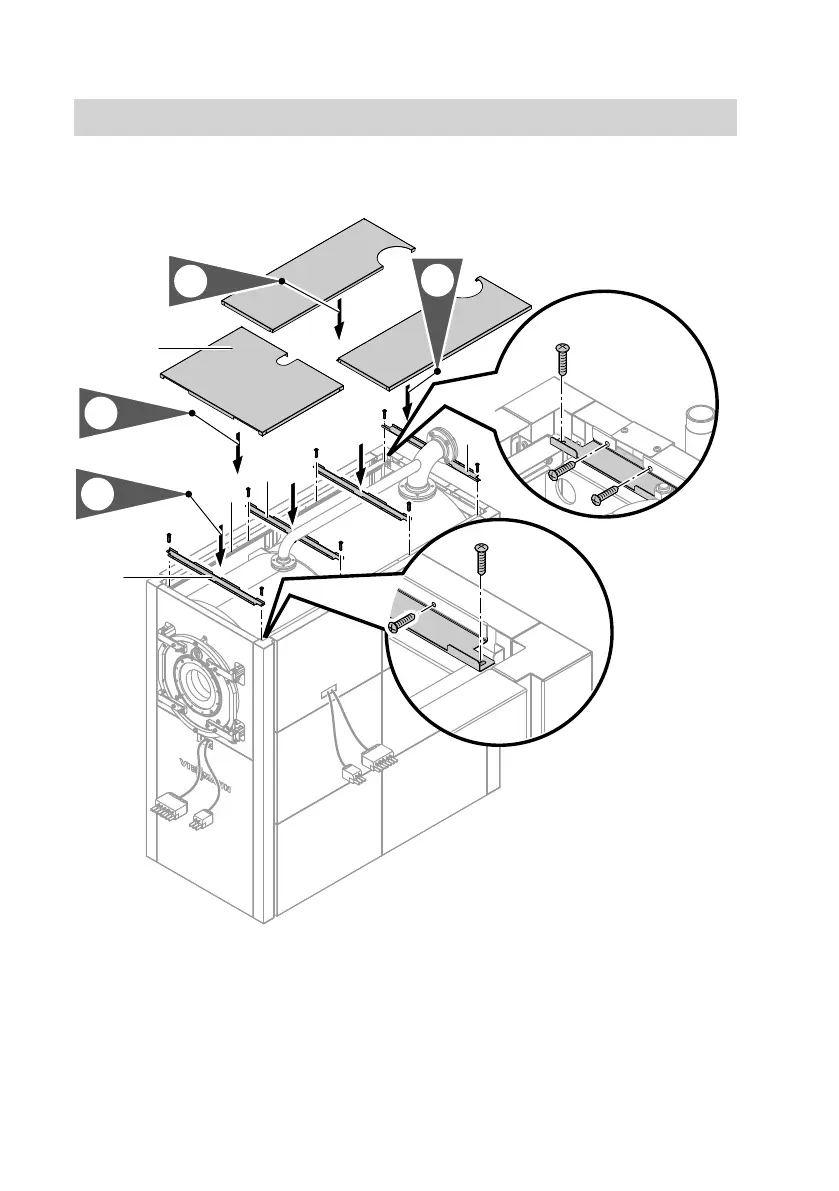

Top panels and reinforcement struts
1.
4x
2.
4.
A
C
3.
4.8
4.84.8
4.8
4.8
4.8
B
A
D
Information on step 1
Secure reinforcement struts onto cross
braces
C
with screws.
Position reinforcement struts
A
at the
front and back behind the front and back
panel and secure with screws.
Information on step 2
Fit top panel
D
, then position the rein-
forcement strut
B
behind top panel
D
and secure to cross brace
C
.
Fitting the thermal insulation
(cont.)
