9
Note
Remove transport protectors.
3. Level the boiler using the adjusting
screws.
Note
We recommend installing the boiler on
adjustable anti-vibration feet
C
(see
page 5) or anti-vibration boiler sup-
ports
D
/
E
(see page 5).
Adjustable anti-vibration feet
Insert adjusting feet into the base rails
from below.
Anti-vibration boiler supports
Any unevenness in the floor should be
max. 1 mm, to ensure the spring ele-
ments are evenly loaded.
Position the boiler supports underneath
the boiler. For this, locate them centrally
underneath the base rails.
When setting the boiler down less than
square on, a boiler support can tempo-
rarily be overloaded. This can be pre-
vented by laying timbers (□ 35 mm)
under the front, centre and back of each
boiler support.

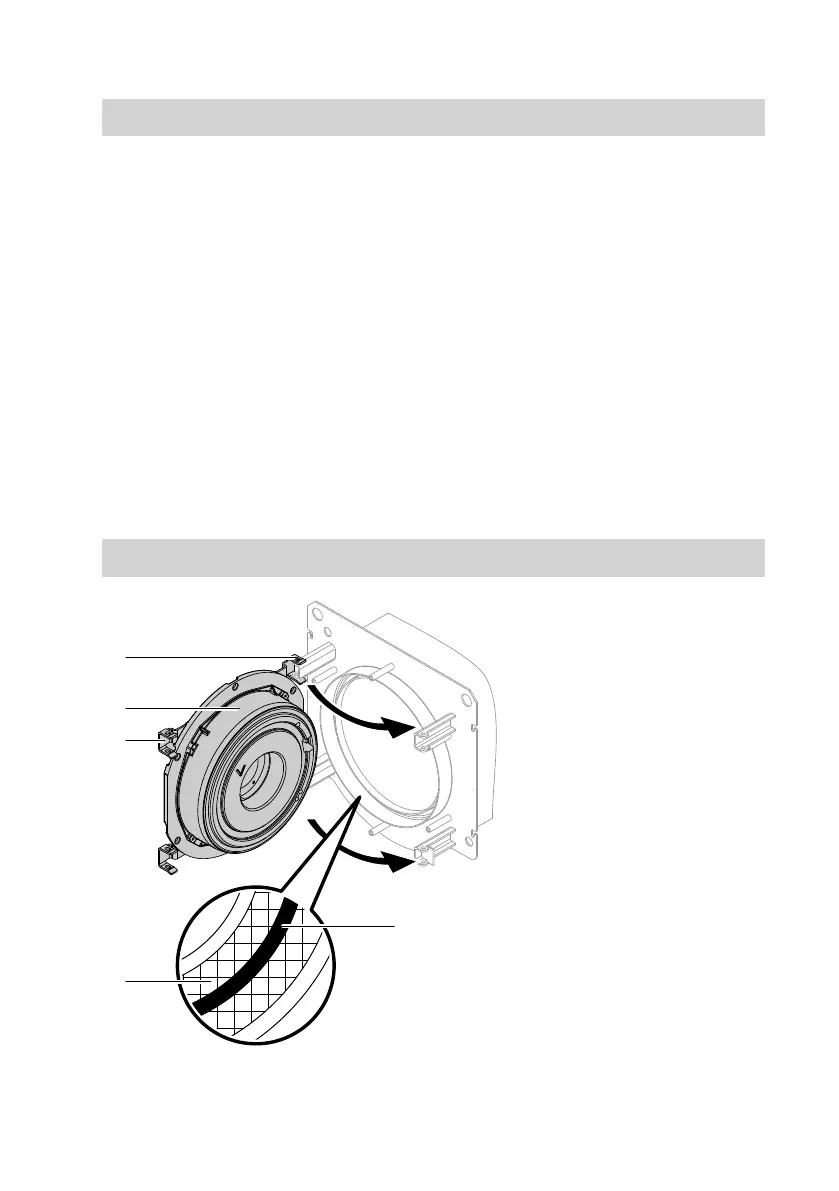

Converting the boiler door opening
Siting and levelling the boiler
(cont.)
5614 451 GB
