4.4 Flue gas connection
Chimney
A chimney corresponding to regulations
and appropriate for the rated boiler
output is a pre−requisite for an efficient
operation.
Note that in its lower output range,
Vitolig 200 can create flue gas
temperatures below 160ºC. Therefore,
connect combustion equipment to highly
insulated chimney stacks (thermal
resistance class I acc. to DIN 18160T1)
or use suitable, moisture−resistant flue
gas systems, which have been
type−approved. The chimney should
provide a smooth interior and must not
have any cracks or restrictions.
The installation of a draught restrictor is
recommended for brick chimneys and
draughts above 0.25 mbar.
Specification:
Rated output
kW 13 to 26 20 to 40
Required draught mbar 0.13 0.15
Minimum stack height m 6 7
Minimum cross−section
*1
Ğmm
180
*2
180
*2
Boiler room ventilation min. cm
2
150
CO
2
content % by
vol.
13
*1
Acc. to DIN 4759.
Flue pipe
The vacuum draught fan may induce
vibrations, which may lead to a noise
nuisance. We therefore recommend the
use of a flue pipe silencer or a flexible
chimney adaptor.
Note the following when connecting the
flue pipe:
H Install the flue pipe rising to the
chimney (if possible with 45º). Max.
flue pipe length 3000 mm.
A flue pipe stretch with a slight
inclination (up to 30º) or
one which is horizontal may be of a
length of max. 1000 mm.
H Provide the flue pipe with thermal
insulation (min. thickness 50 mm).
H Do not push the flue pipe too far into
the chimney.
H Ensure the full flue gas path (incl.
clean−out cover) is gas−tight.
H Do not insert the flue pipe into the
brickwork of the chimney; instead use a
flexible flue pipe adaptor for connection
to the chimney.
Set the clean−out cover (check for
leaks).

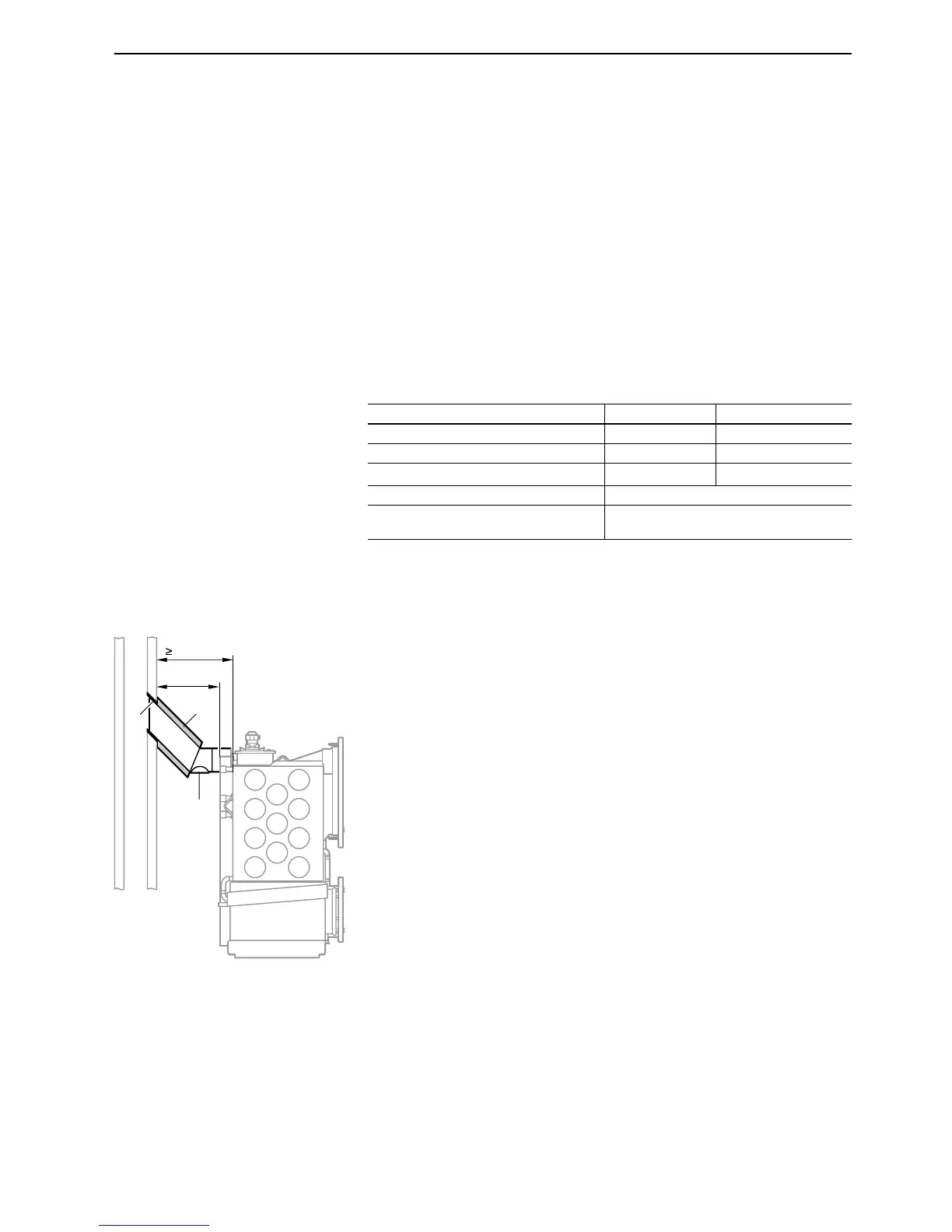

A Clean−out cover
B Thermal insulation
C Flexible flue pipe inlet into the
chimney
Dimension without brackets: relative to
the boiler edge
Dimension inside brackets: relative to the
casing edge
5822241 GB
(400 mm)
500 mm
C
B
A
