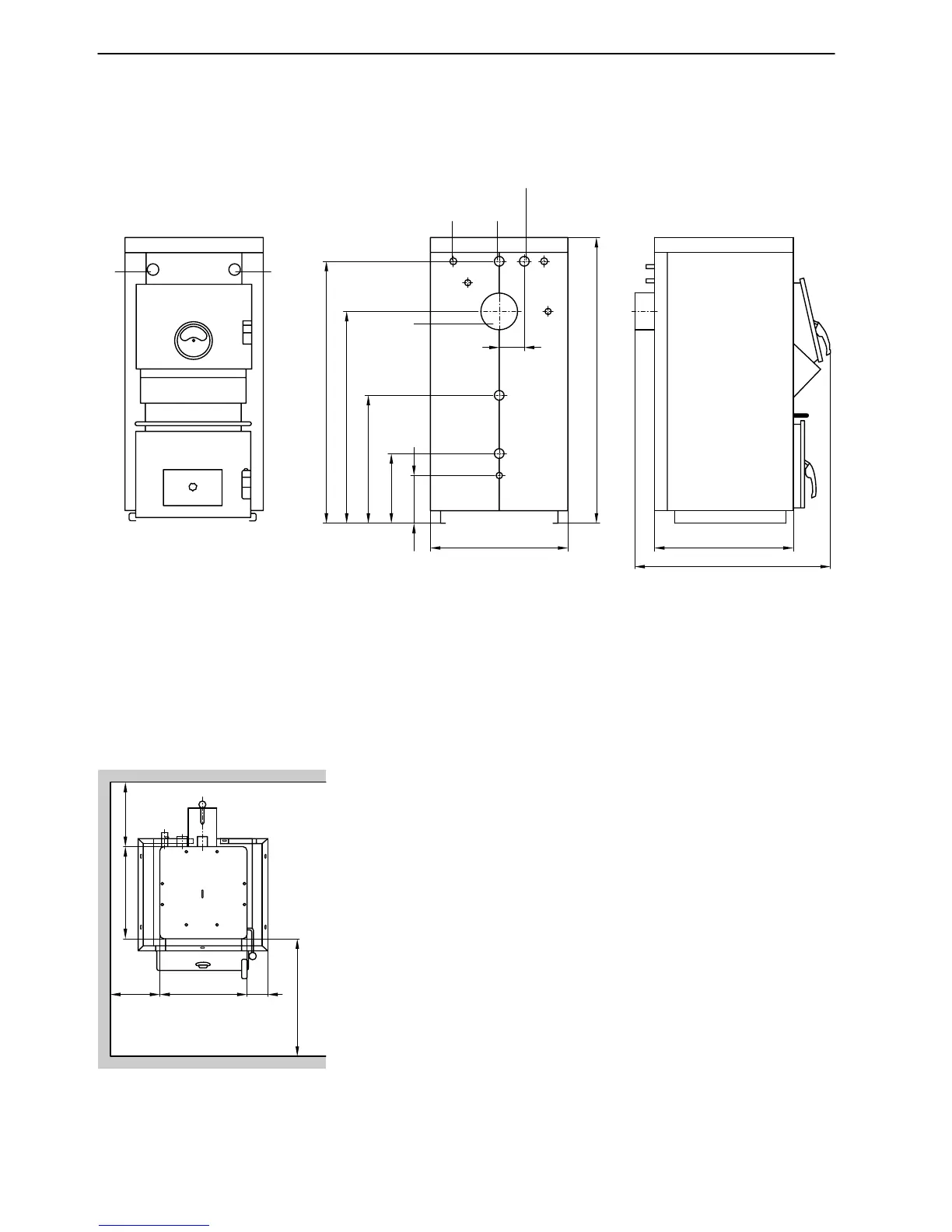

5 Vitolig 100
TR
TAS
Overall height
Overall width
100
WW
1050
848
510
279
190
KR1
KR2
E
556
Overall length
AGA
KV2
KV1/SA
KW
FR KTH
56
Legends
AGA Flue pipe
E Drain and diaphragm expansion
vessel
FR Combustion control unit
KR Boiler return
KTH Boiler thermometer
KV Boiler flow
KW Cold water inlet at the safety heat
exchanger
SA Safety connection
(safety valve)
TAS Coupling R½" for the probe of the
thermostatic drain
TR Control thermostat
WW Cold water outlet of the safety heat
exchanger (no DHW connection)
5.2 Positioning
H No air contamination through
halogenated hydrocarbons (e.g. as
contained in sprays, paints, solvents
and cleaning agents).
H Avoid very dusty conditions
H Avoid high levels of humidity
H Avoid danger of freezing and ensure
good ventilation.
Otherwise the system may suffer faults
and damage.
The boiler may only be installed in rooms
where air contamination through
halogenated hydrocarbons may occur,
such as through hairdressing salons,
printing shops, chemical cleaners,
laboratories etc., if adequate measures
can be taken to provide uncontaminated
combustion air.
If in doubt, please contact us.
If these instructions are not observed, any
consequential losses directly related to
any of these causes, are excluded from
our warranty.
Top−mounted oil/gasfired boiler
An assembly set, comprising two
mounting rails, is available as accessory
for mounting one Vitola or Vitorond oil−
or gas−fired boiler on to of the Vitolig 100
(see price list).
5822241 GB
100428200
448 450
1000
