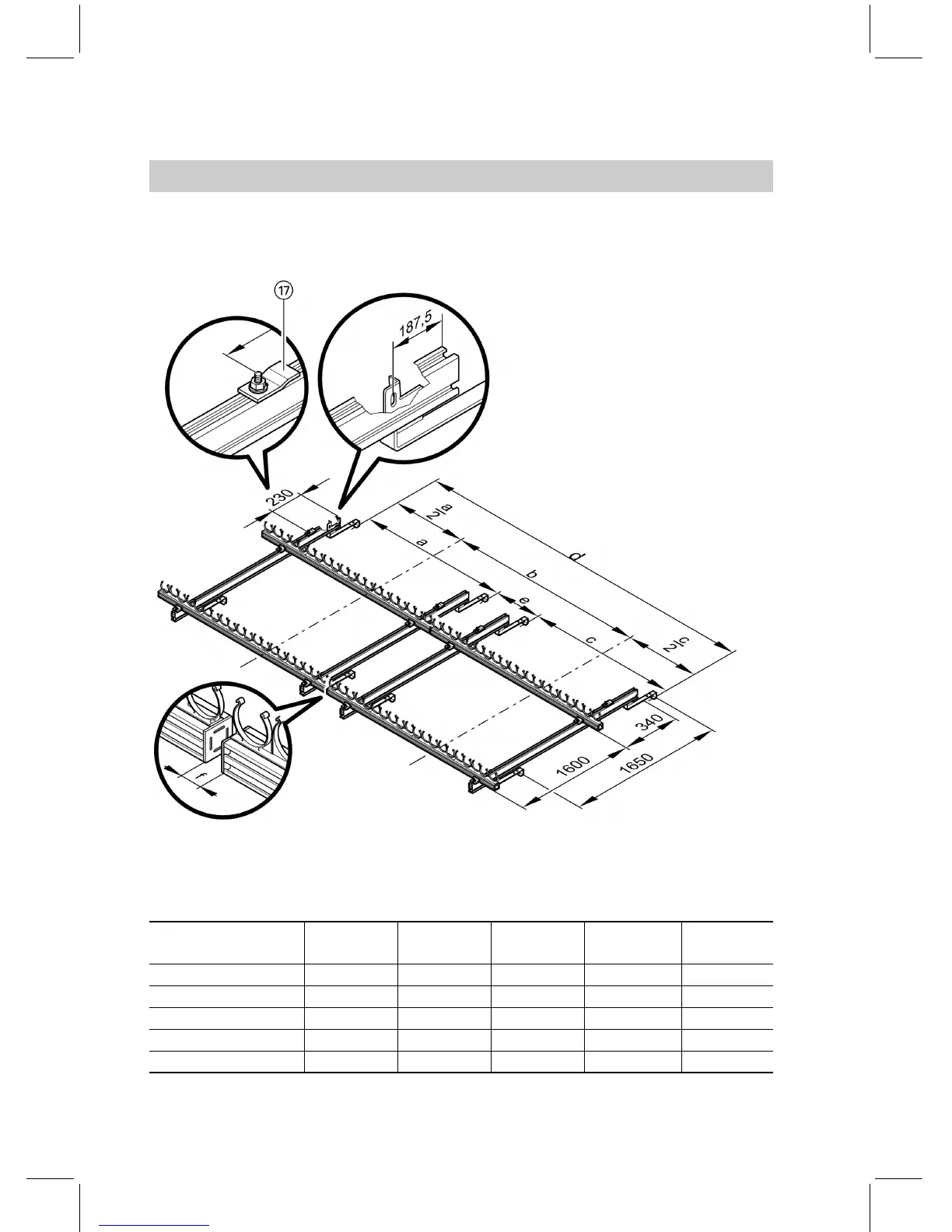

For installations without roof hooks, mounting brackets are used in place of roof
hooks.
Centre the mounting rails, maintaining dimension f = 26 mm.
Combination
(tubes)
ammbmmcmmdmmemm
20 850 —— ——
30 1260 —— ——
20/20 850 1465 850 2315 615
20/30 850 1820 1260 2875 765
30/30 1260 2175 126 0 3435 915
Vertical rooftop installation (cont.)
24
5862 788 GB
