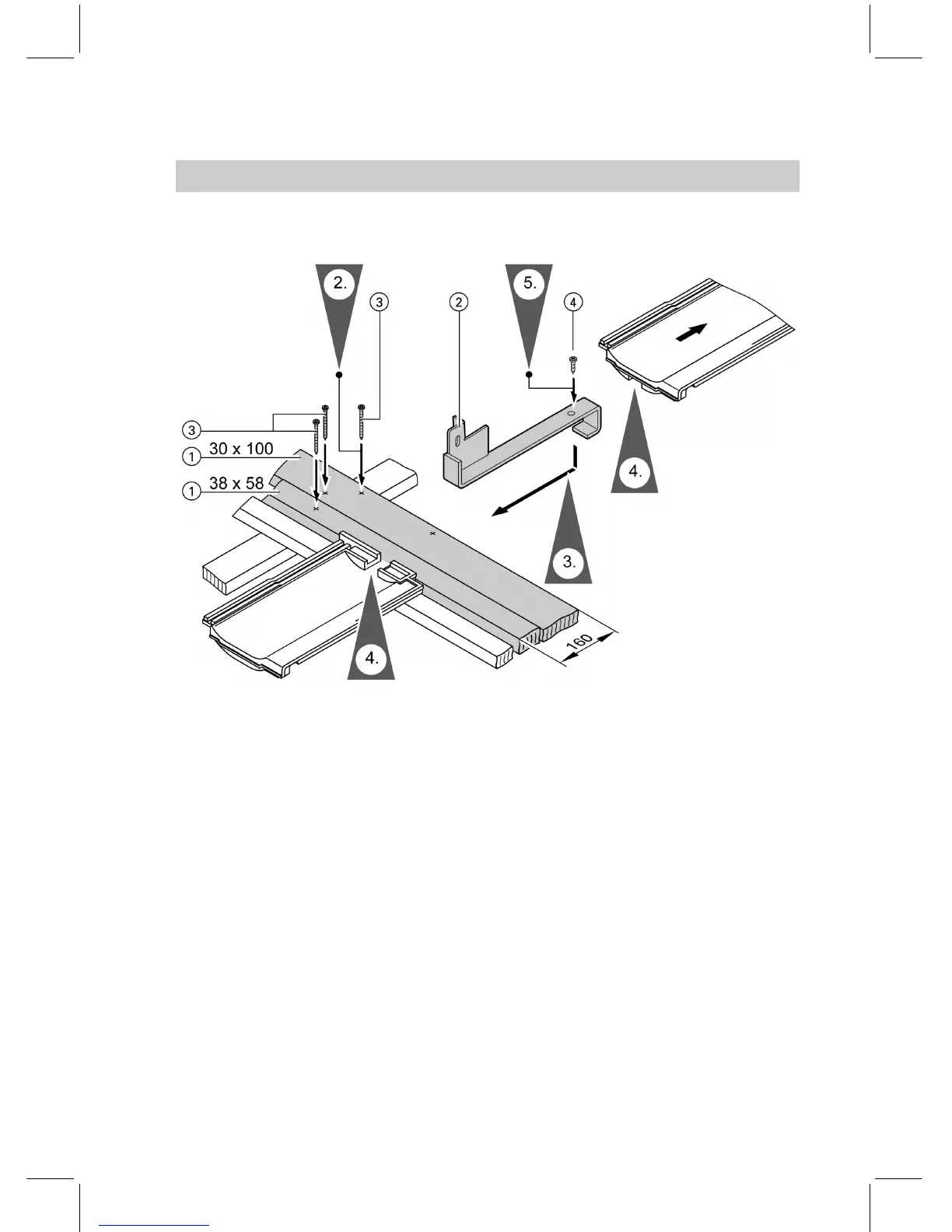

Fitting roof hooks for roof tile cover
1. Push up the roof tiles in accor-
dance with the dimensions shown
in the illustra tion on page 21.
2. Secure the timber to the joists at
the head of the exposed rows of
tilesinaccordancewiththedimen-
sions shown in the illustration on
page 21.
3. Hook the r oof hooks into the timber
in accordance with the dimensions
shownintheillustrationon
page 24.
4. Remove the drip tabs and protru-
sions from the roof tiles in roof
hook area.
5. Secure the roof hooks and position
the roof tiles.
Continue with "Mounting rail instal-
lation" on page 27.
