Combination
(tubes)
ammbmmc mm
20 850 ——
30 1260 ——
20/20 850 1465 2315
20/30 850 1820 2875
30/20 1260 1820 2875
30/30 1260 2175 3435
1. Position feet on a solid surface on
protective mats.
A Foot A B Foot B

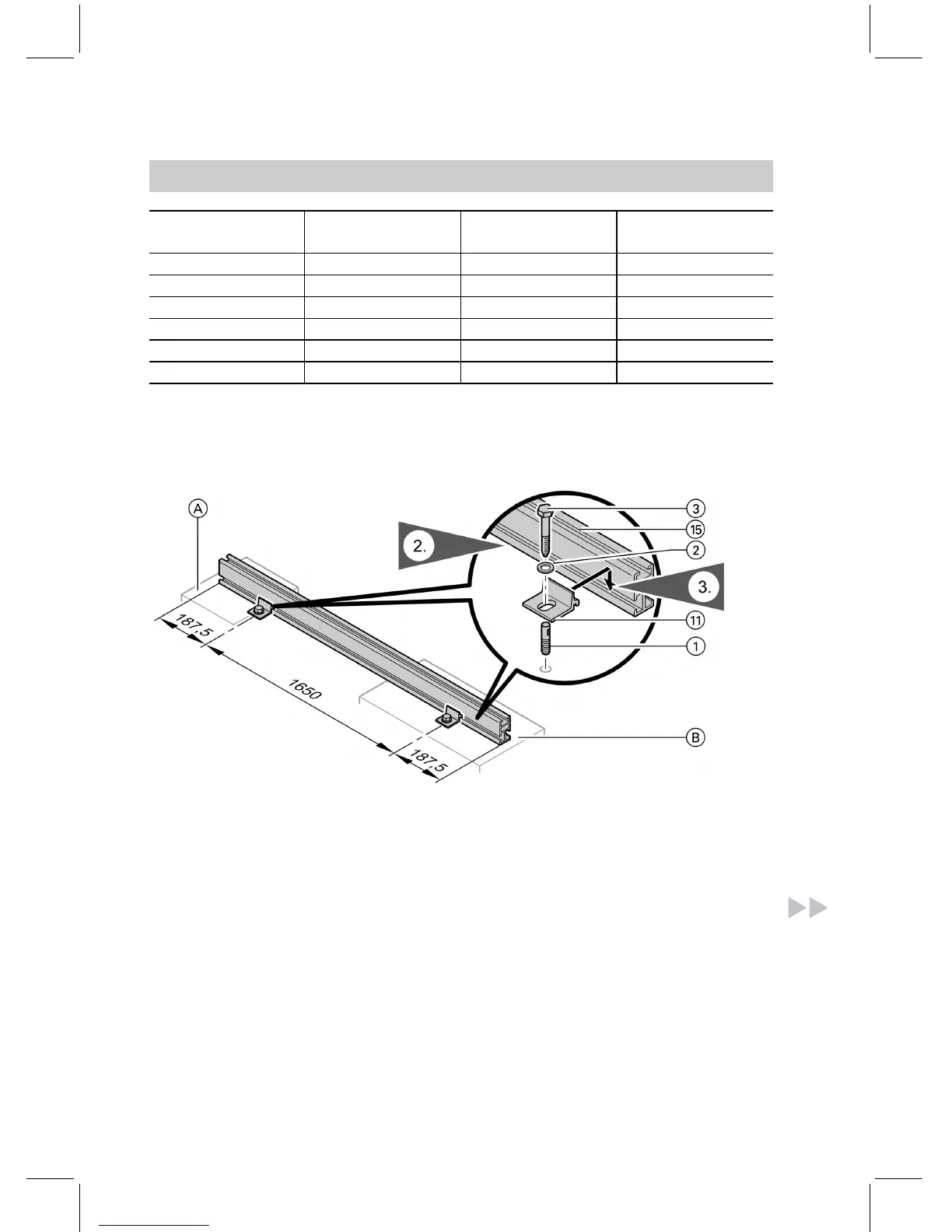

2. Fix clamping brackets to the feet A
and B, do not yet tighten the bolts.
3. Click the mounting rails into the
clamping brackets, align and
tighten.
