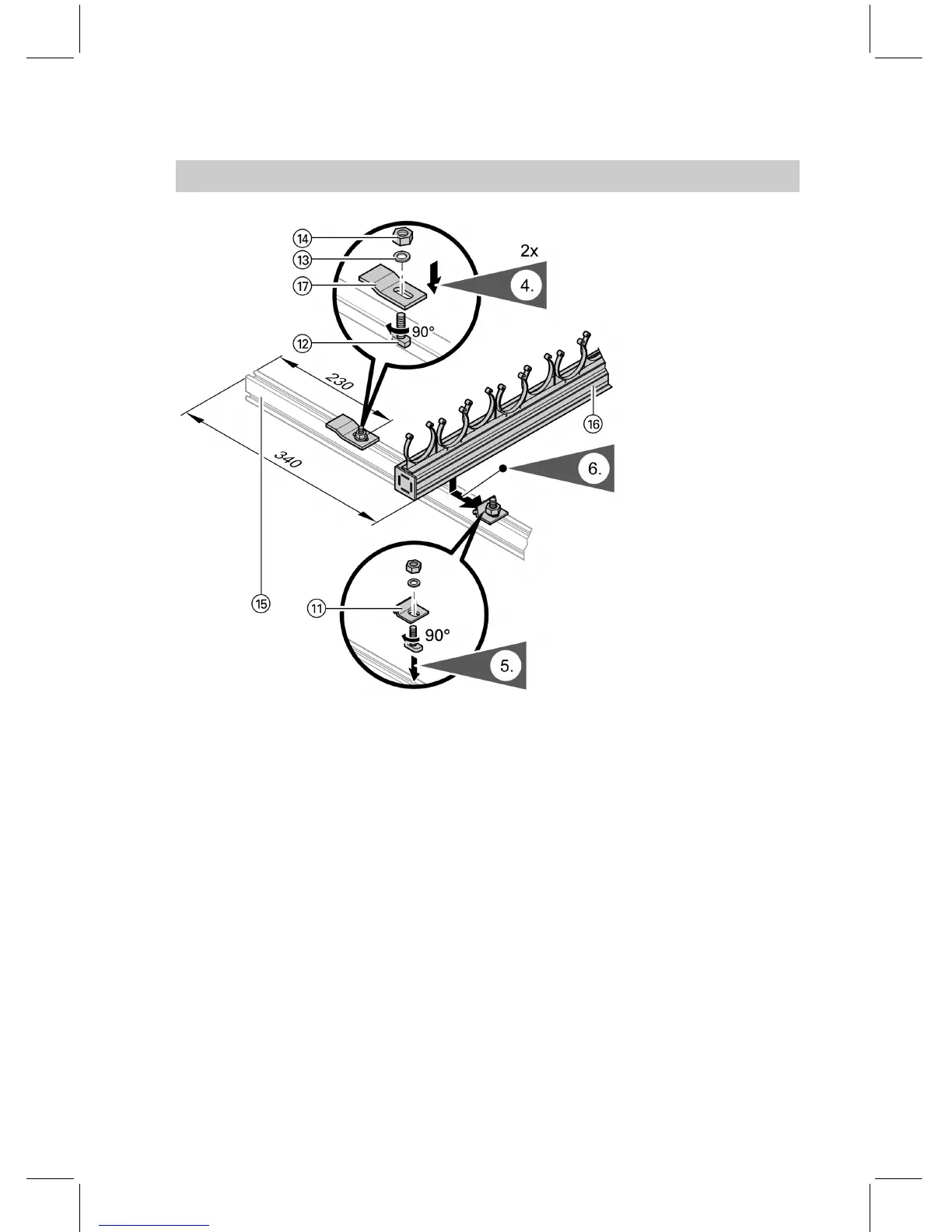

4. Secure the retaining plates to the
mounting rai ls.
5. Fi t th e clam ping brackets onto the
mounting rai ls; do not yet tighte n
the bolts.
6. Click the mounting rails with tube
holders into the clamping brackets,
align and tighten.
Note
Tube hold ers must be ali gned later-
ally to the opposite rail.
