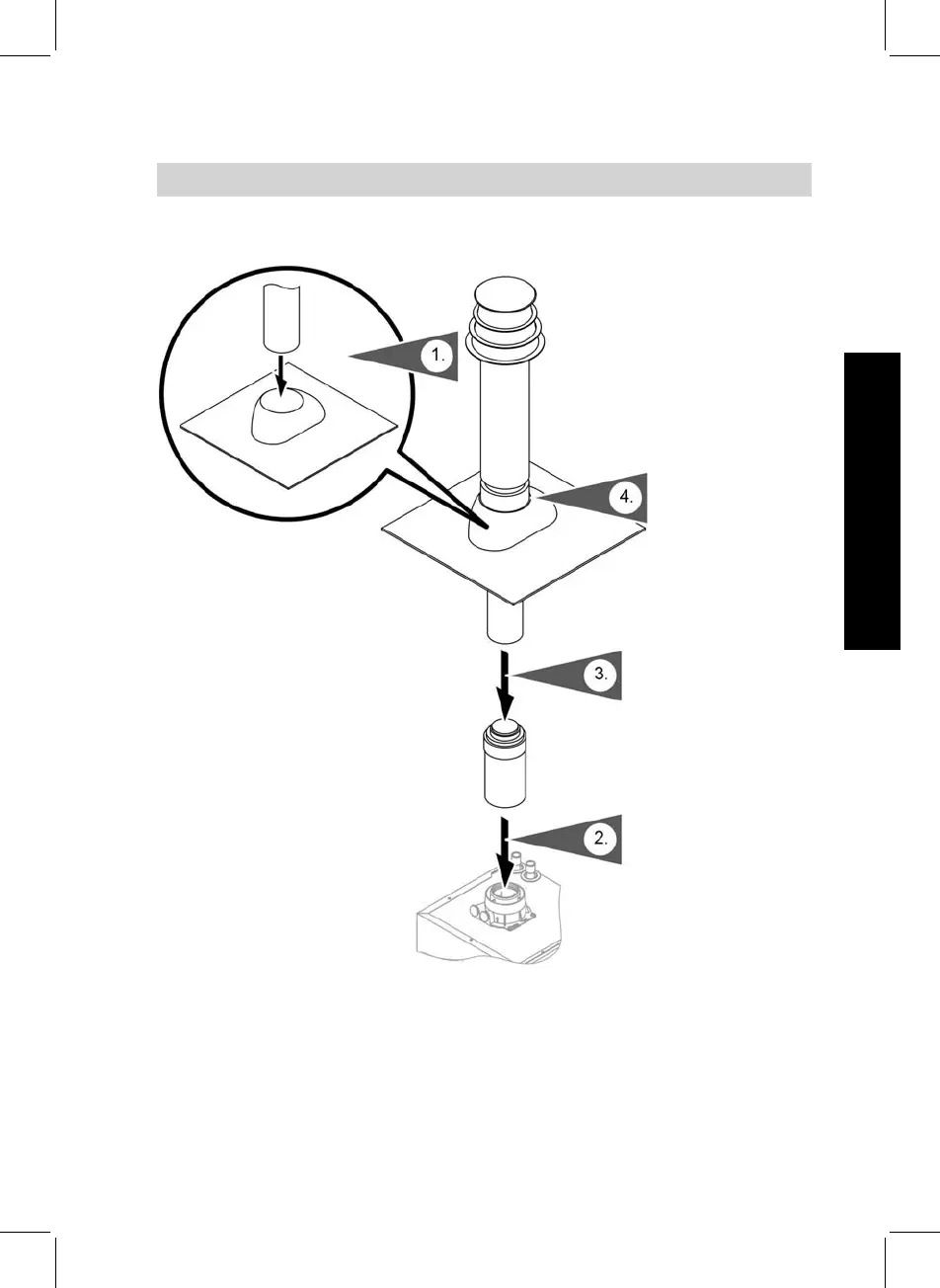

Vertical roof terminal C33x
1. Install the universal roof tile.
2. Install flue and supply pipes accor-
dingly.
3. Push roof terminal through roof and
insert into flue/supply pipe.
4. Seal roof terminal.
Flue outlet (Fortsetzung)
37
Montageablauf
5581 805
Montage
