Jumper Assignment and Codings

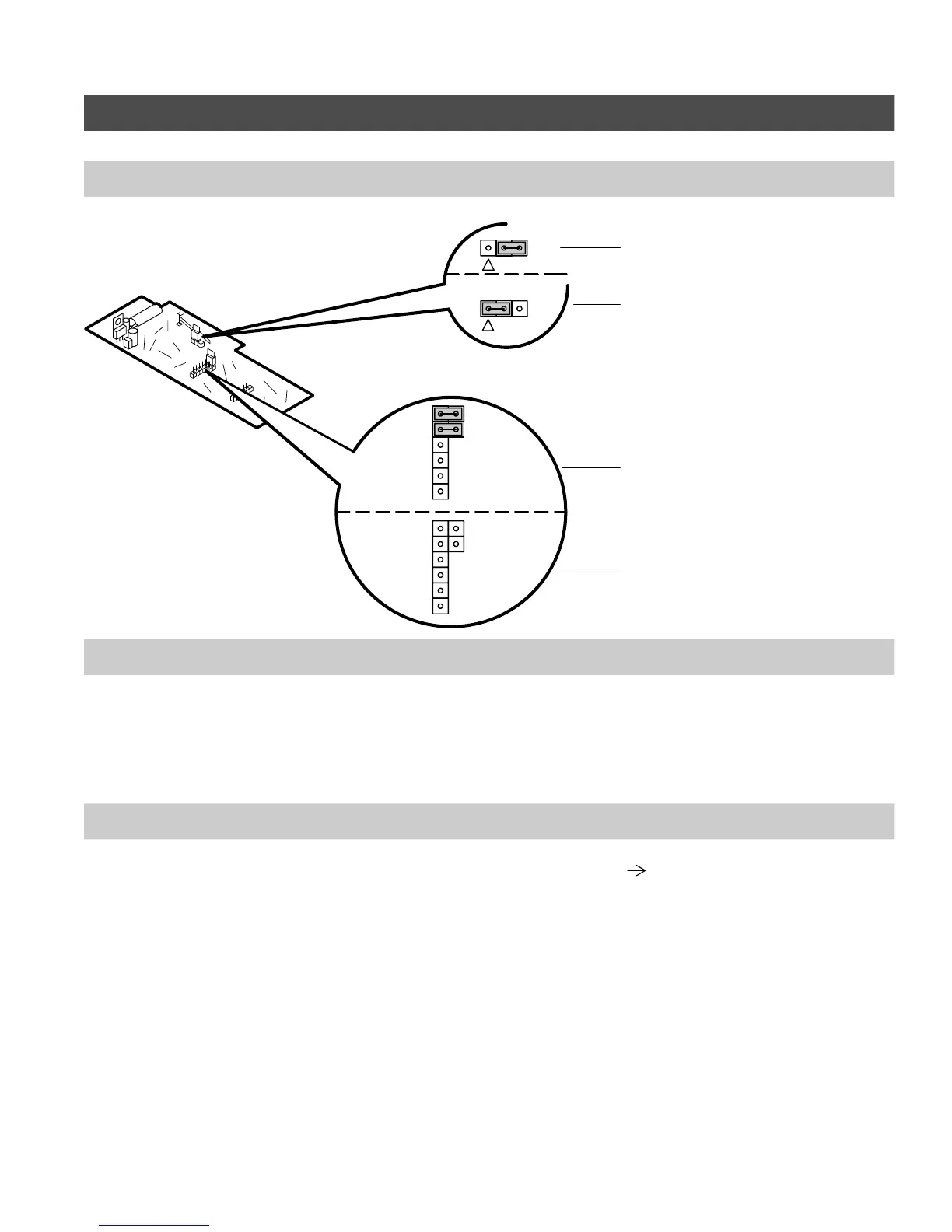

Assignment of plug-in jumper on circuit board VR20
Plug-in jumper ”X6”
Factory default setting without
”External burner disable” function.
With ”External burner disable”
function.
Plug-in jumpers ”X2”-”X4”
Factory default setting without
Viessmann 2-wire BUS expansion
module: Two plug-in jumpers connected
as shown.
With Viessmann 2-wire BUS expansion
module: Both plug-in jumpers removed.
External switching of the heating program (telephone contact)
With programming unit
Change coding address ”011:000” to
”011:001”.
External heat demand field supplied
With programming unit
Change coding address ”011:000” to
”011:001” and ”027:000” to
”027:001”.
Boiler start-up takes place in
accordance with the settings of
coding address ”0C5”.
Boiler water temperature is
maintained at the value selected in
coding address ”0A2”.
