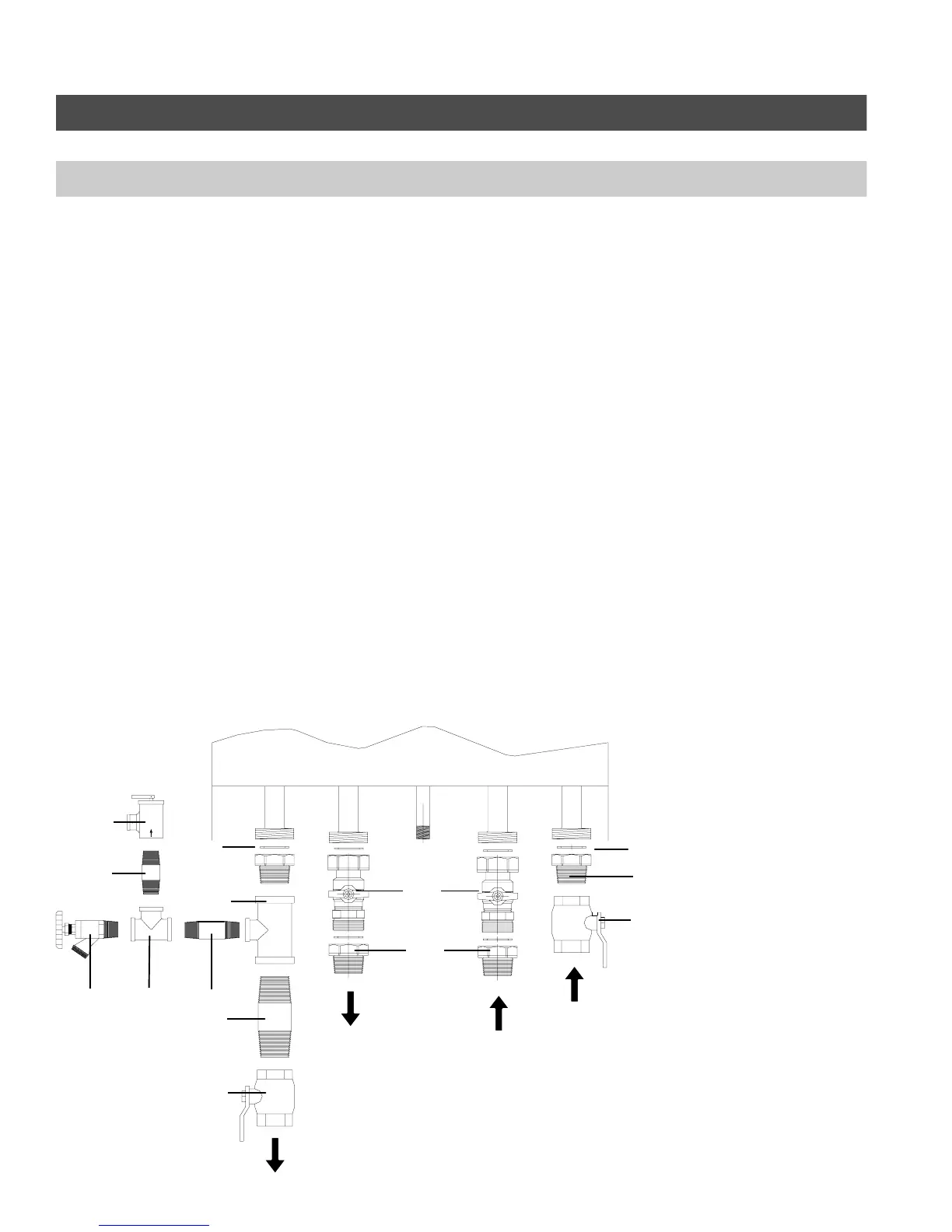

Parts List (continued)
Installation fittings
Parts
110 Gasket, 32 x 44 x 2mm
111 Adaptor (pair with gasket)
1½ - 1¼”
113 Tee, 1¼” x 1¼” x ¾”
114 Nipple, 1¼ NPTM x 2½”
115 Full port ball valve, 1¼” FBV (T)
116 Nipple, ¾” x 3½
117 Brass tee, ¾”
118 Sediment faucet, ¾”
119 Nipple, ¾ x 2”
120 Pressure relief valve
122 Shut-Off Valve (pair with gasket)
Parts not illustrated
130 Accessory pack
(metal stud mounting kit)
131 Loctite sealant, 6ml Tube
132 Keychain with air bleed key
133 Parts List
*1
Included in DHW Production Kit.
5285 961 v1.3
115
110
116
117
118
119
120
111
*1
111
*1
122
110
113
114
115
