ViewSonic CDE30 Series User Manual

21

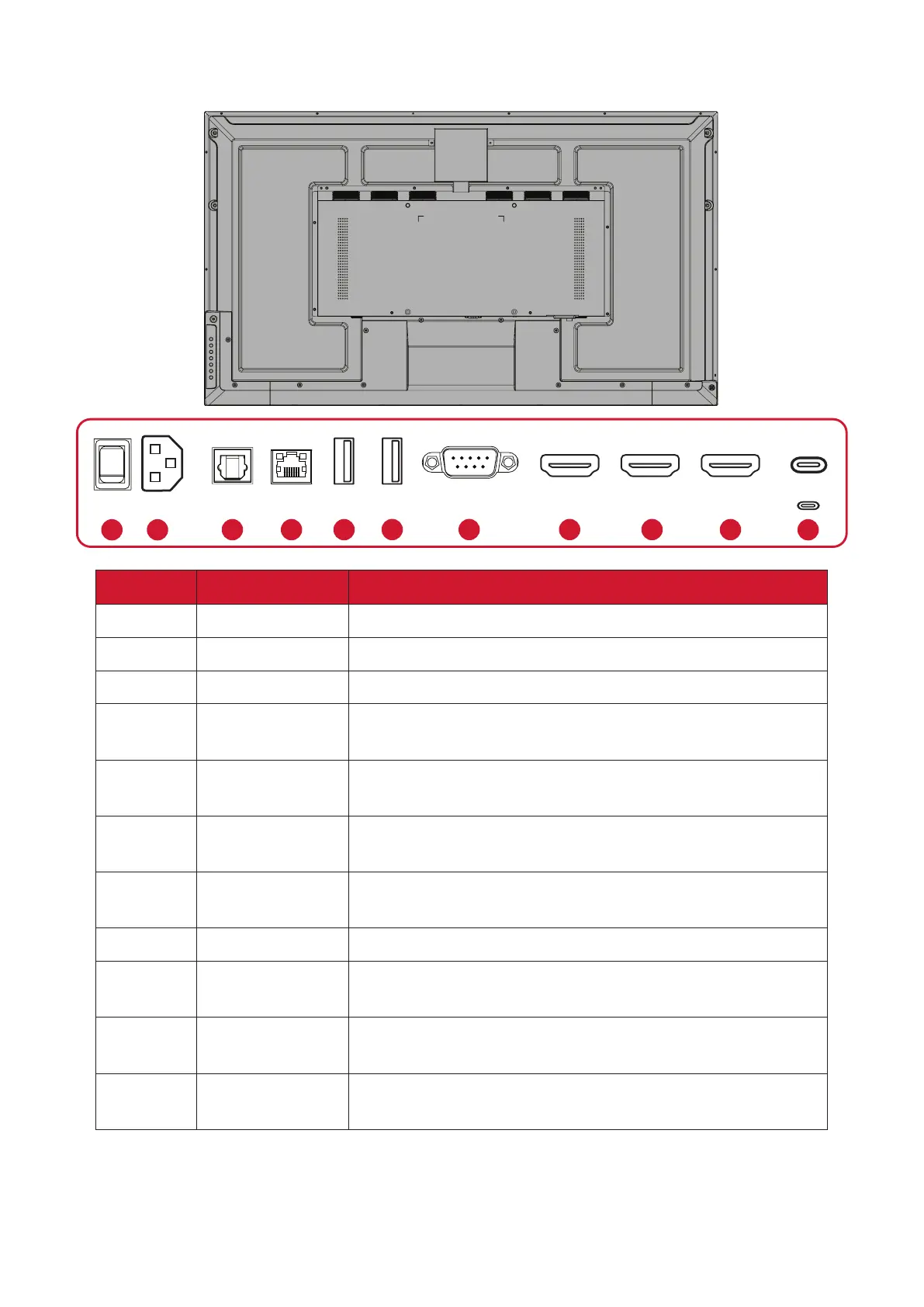

I/O Panels - CDE4330 | CDE5530
 2
3 4 5
6 7 8 9
10
11
RS-232
LAN
SPDIF
USB 2.0USB 3.0
HDMI OUT
2
1 (ARC)
Number Port Descripon
1
Power Switch Turn the device ON/OFF.
2
AC IN AC power input.
3
SPDIF Mulchannel sound via opcal signals.
4
LAN
Standard RJ45 (10M/100M/1G) Internet connecon
interface.
5
USB 2.0
Connect USB devices such as hard disks, keyboard,
mouse, etc. (Output rang: 5Vdc/500mA)
6
USB 3.0
Connect USB devices such as hard disks, keyboard,
mouse, etc. (Output rang: 5Vdc/900mA)
7
RS-232
Serial interface; used for mutual transfer of data
between devices.
8
HDMI OUT Extend content out to another display device.
9
HDMI 2
High denion input; connect to a PC with HDMI
output, set-top box, or other video device.
10
HDMI 1 (ARC)
High denion input; connect to a PC with HDMI
output, set-top box, or other video device.
11
USB Type C
USB Type C input; connect to a PC with USB Type C
output. (Output rang: 20Vdc/3.25A).
